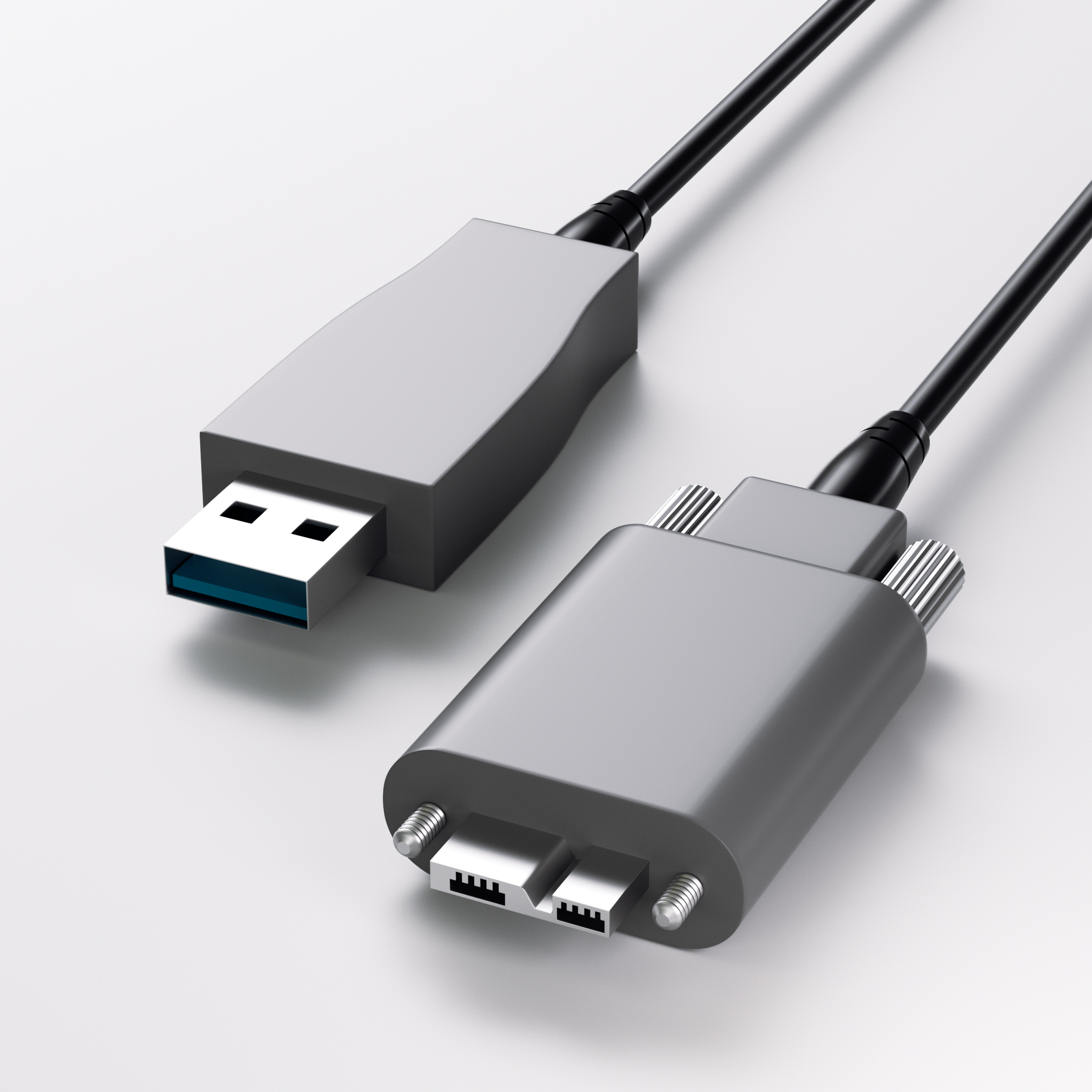

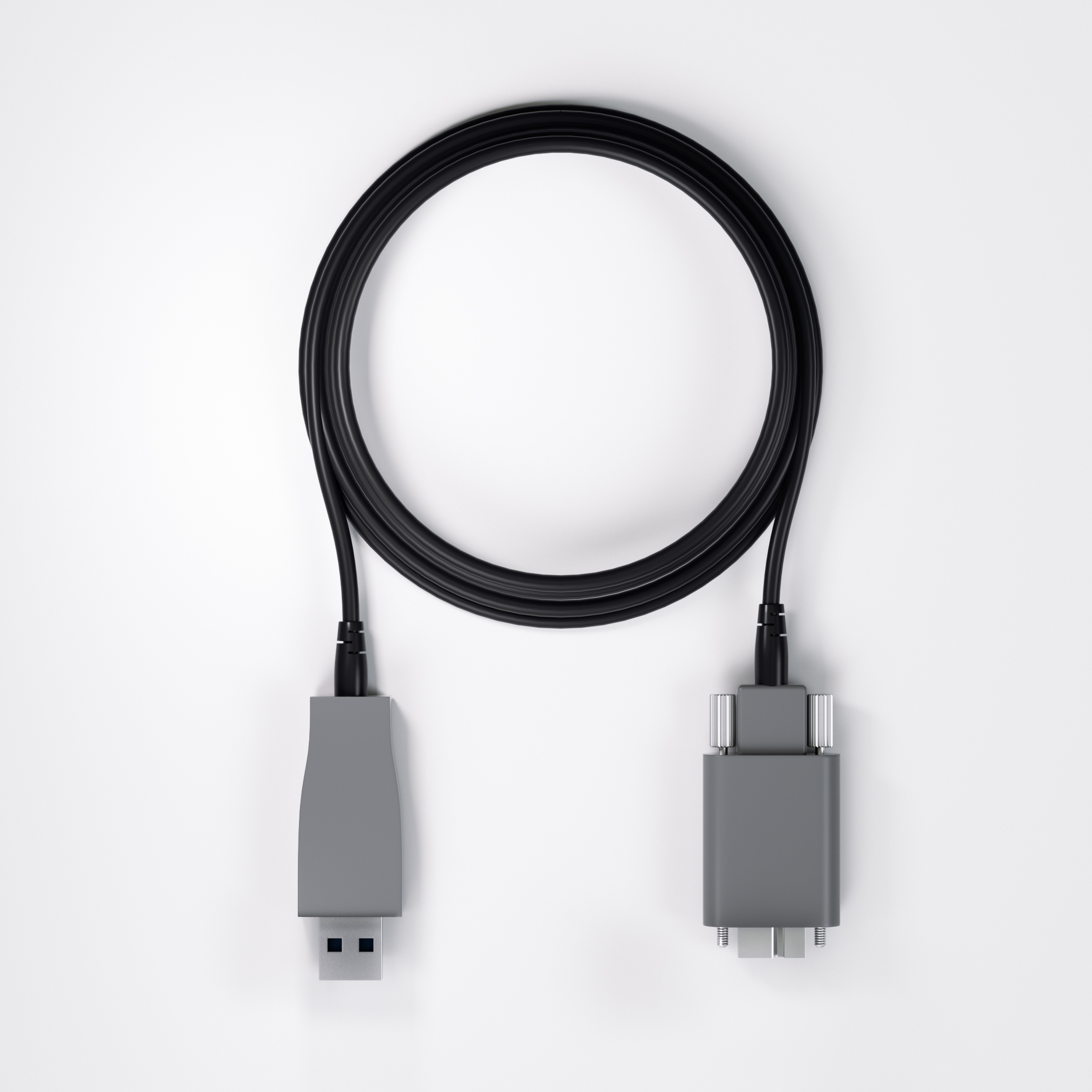

USB3.0 GEN1 Hybrid Type A Male to Micro-B with Screws High Flex Active Optical Cable | For Machine Vision
$0.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Connector Specification | |||||
 |
|||||
| Fiber Specification | |||||
 |
No. | Category | Value | Supplementary | |
| 1 | Raw Cable | Outer diameter 1.1±0.05mm，thickness 0.25±0.03mm. | 2 Cores | ||
| 2 | Blue PE Copper Wire | Outer Diameter 1.20—1.25mm | Twist | ||
| 3 | White PE Copper Wire | Outer Diameter 1.20—1.25mm | Twist | ||
| 4 | Kevlar | Strength Member | 5*1610dtex | ||
| 5 | Outer Jacket | Black TPU | OD 4.0±0.15mm | ||
| Model NO. | OLA-EPIUH64-A0B3 | |||||
| Host Side | USB3.0 Standard-A Plug | Device Side | USB3.0 Micro B Plug（with locking screw） | Input Power(Host Side) | Input Voltage | 4.75~5V |
| Dimension of The End | MB 51.61mm/23.5mm/8mm AM 53.04mm/19.14mm/10mm | Net Weight (Typical 10m) | 408g | Current(max) | 200mA | |
| Cable Diameter | 4.0mm | Cable Length | Up to 50m | Power Consumption (max) | 0.94W | |
| Option Cable Length | 5m/10m/20m/30m/40m/50m | Bend Radius (Dynamic/Static) | 40mm/20mm | Output Power(Device Side) | Output Voltage | ＞4V |
| Tensile Strength (Long Term/Short Term) | 220N/120N | Crush Resistance (Long Term/Short Term)/100mm | 200N/350N | Current(max) | 900mA, 700mA@20m | |
| Operating/Storage Temperature | -20~+60°C/-40~+85°C | Operating/Storage humidity | 20%~80% RH/20%~80% RH | |||
| General Information | ||
| ROHS2.0 | CE/FCC | Warranty |
| Yes | Yes | 1 year |
