SVI4K-0745 Smart Visual Inspection System without Computer Setups | Highgovision®️

Intelligent Measurement Assistant System can handle without a PC.

The SVI4K-0745 simplifies precise measurements with its smart visual inspection capabilities. Unlike conventional vision systems that require complex computer setups and technical expertise, the SVI4K-0745 works right out of the box—no PC required.

It requires no manual calibration before use - just power on, select a tool, and define your measurement area. The system handles the rest automatically, finding features and calculating measurements with exceptional accuracy.

3 Simple Steps to Precise Measurement

1. Power On - System initializes with automatic calibration
2. Select Function - Choose from 18 built-in measurement tools
3. Define Range - Select the area to measure

The system automatically recognizes features within your defined area and performs accurate measurements at high speed.

Key Features

• Auto-Calibration Technology: Measure directly without tedious calibration procedures
• Automatic Feature Recognition: System identifies measurement points after you select the tool
• One-Click Image Export: Capture and save high-resolution images with measurements
• One-Click Data Export: Generate measurement data tables instantly
• Smooth 4K Imaging: 60 FPS video feed provides clear, blur-free viewing
• Versatile Magnification: Continuous 0.7X-4.5X zoom range (model dependent)

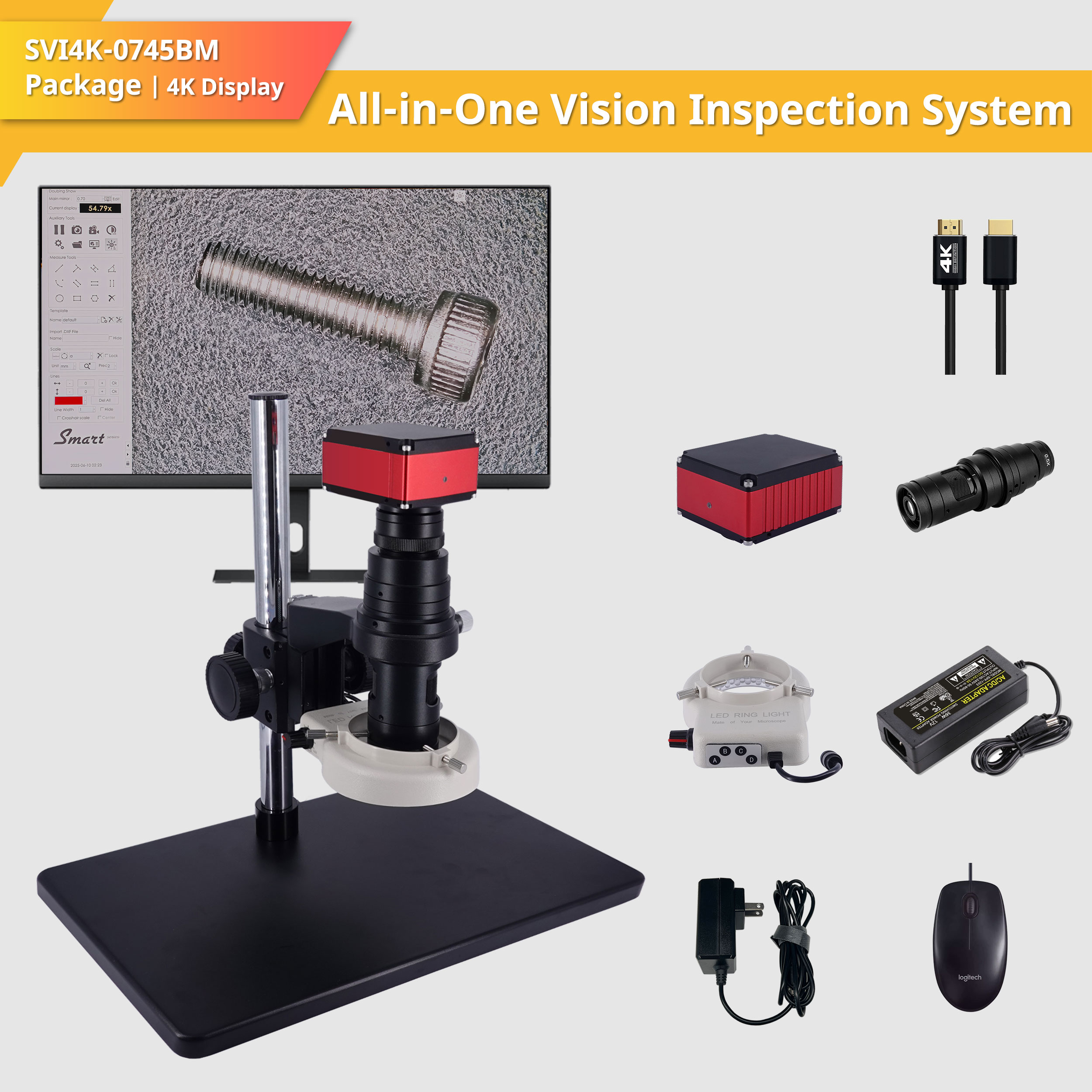

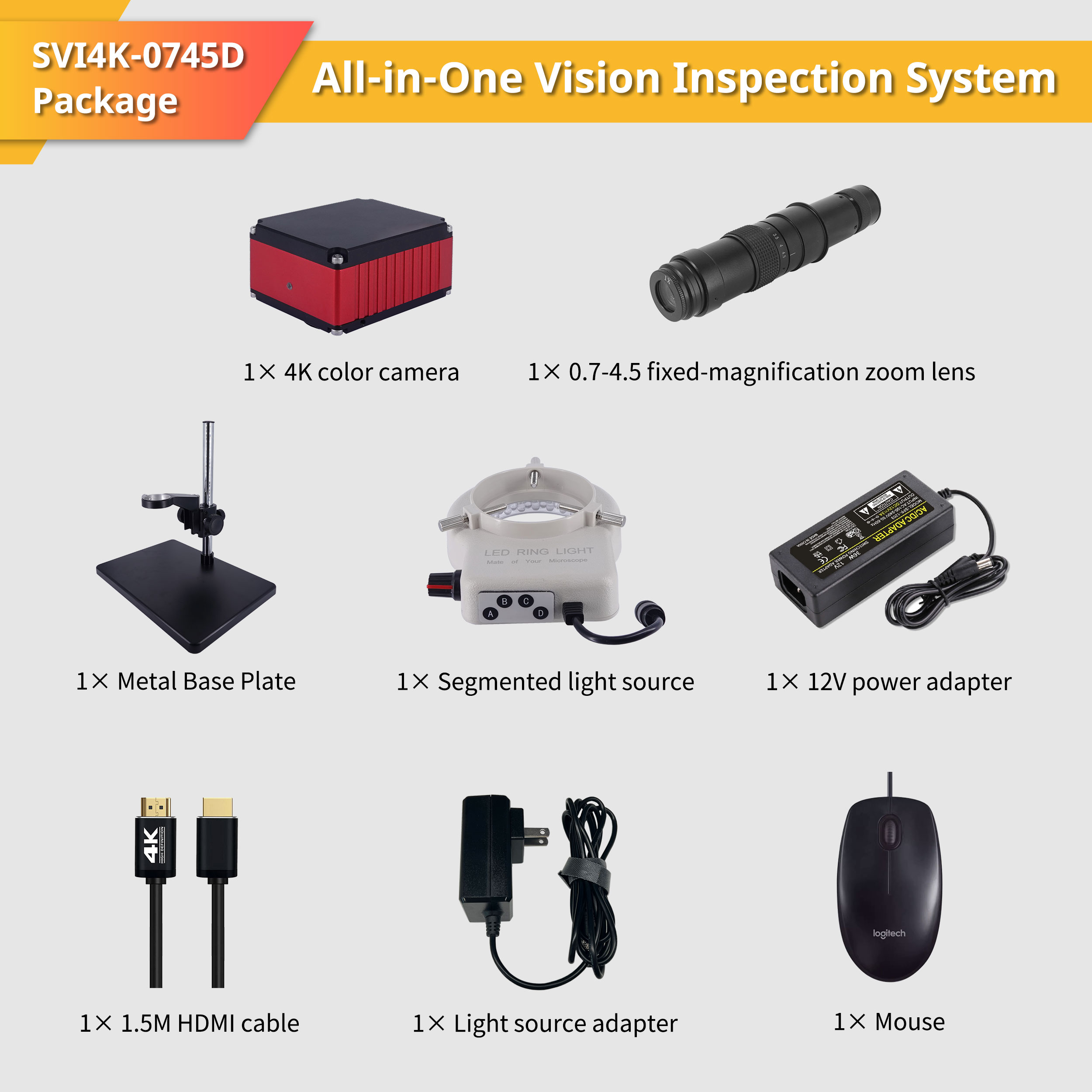

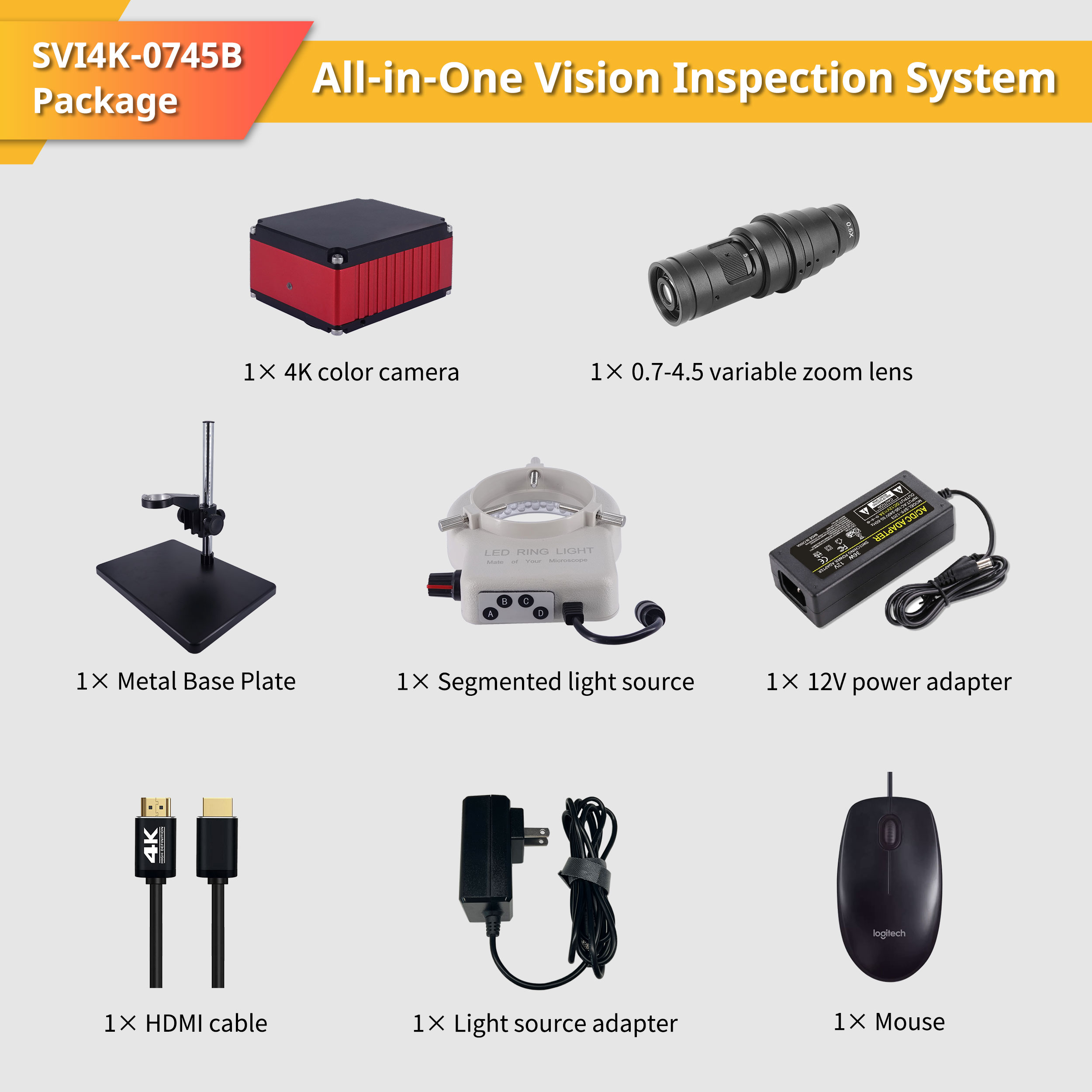

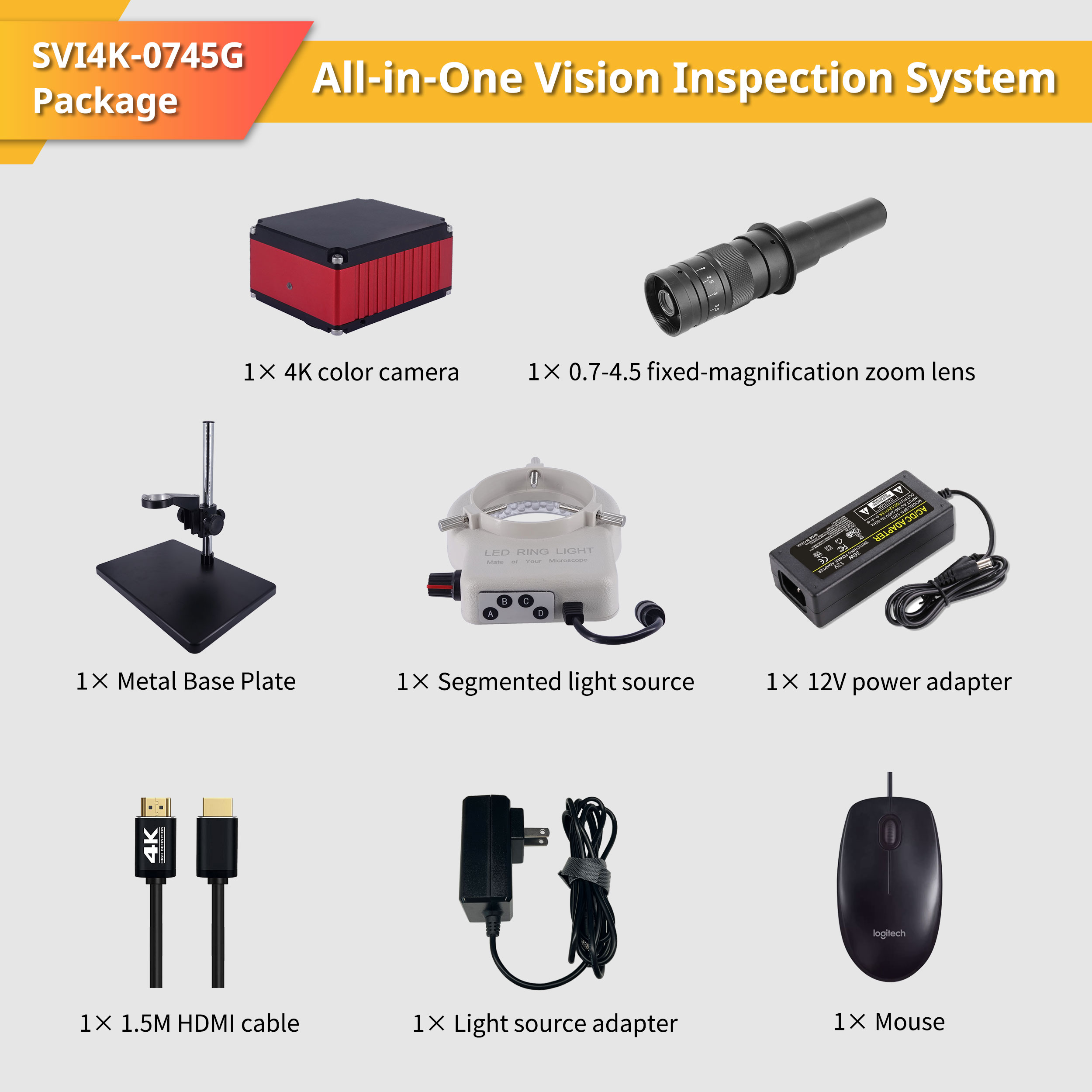

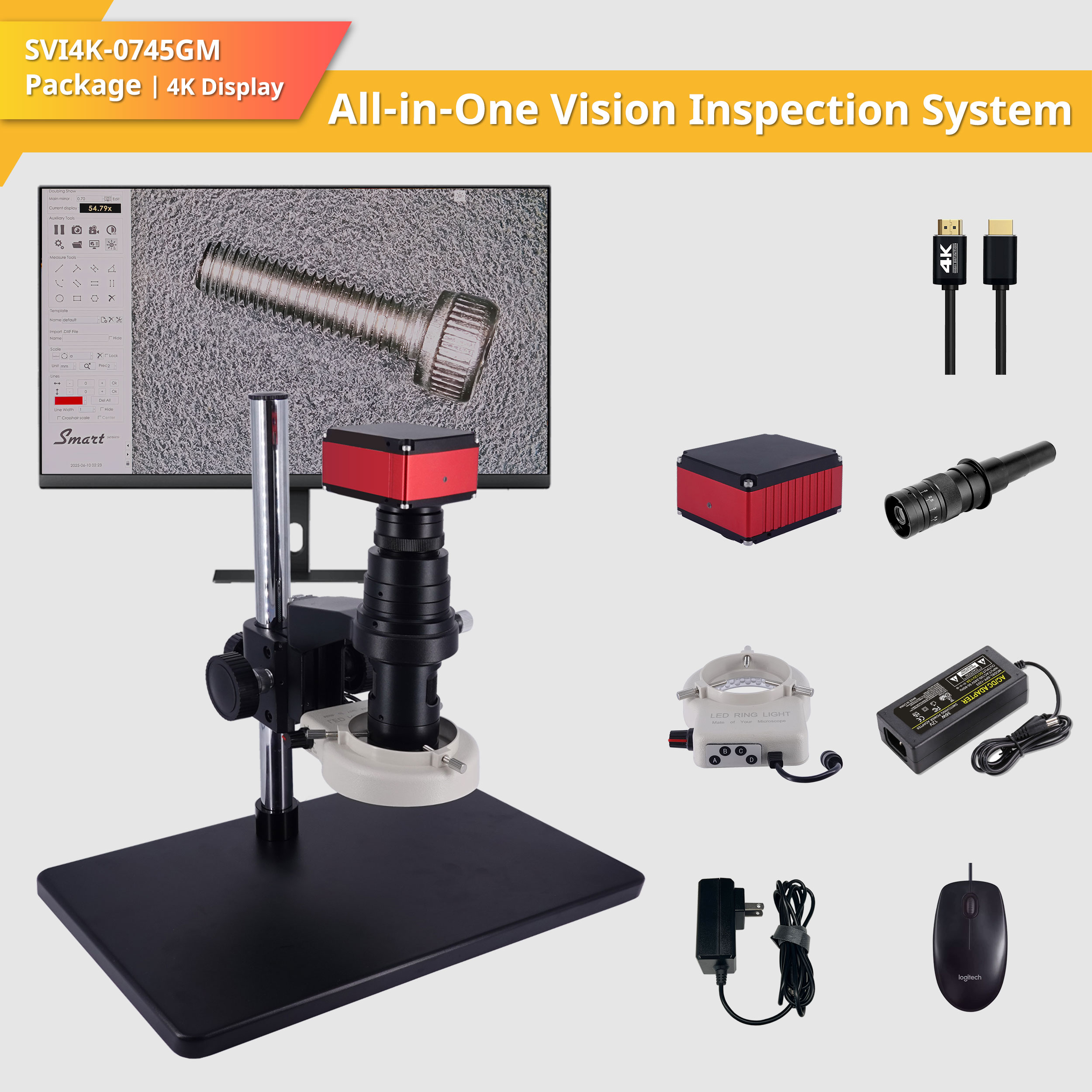

Vision System Components

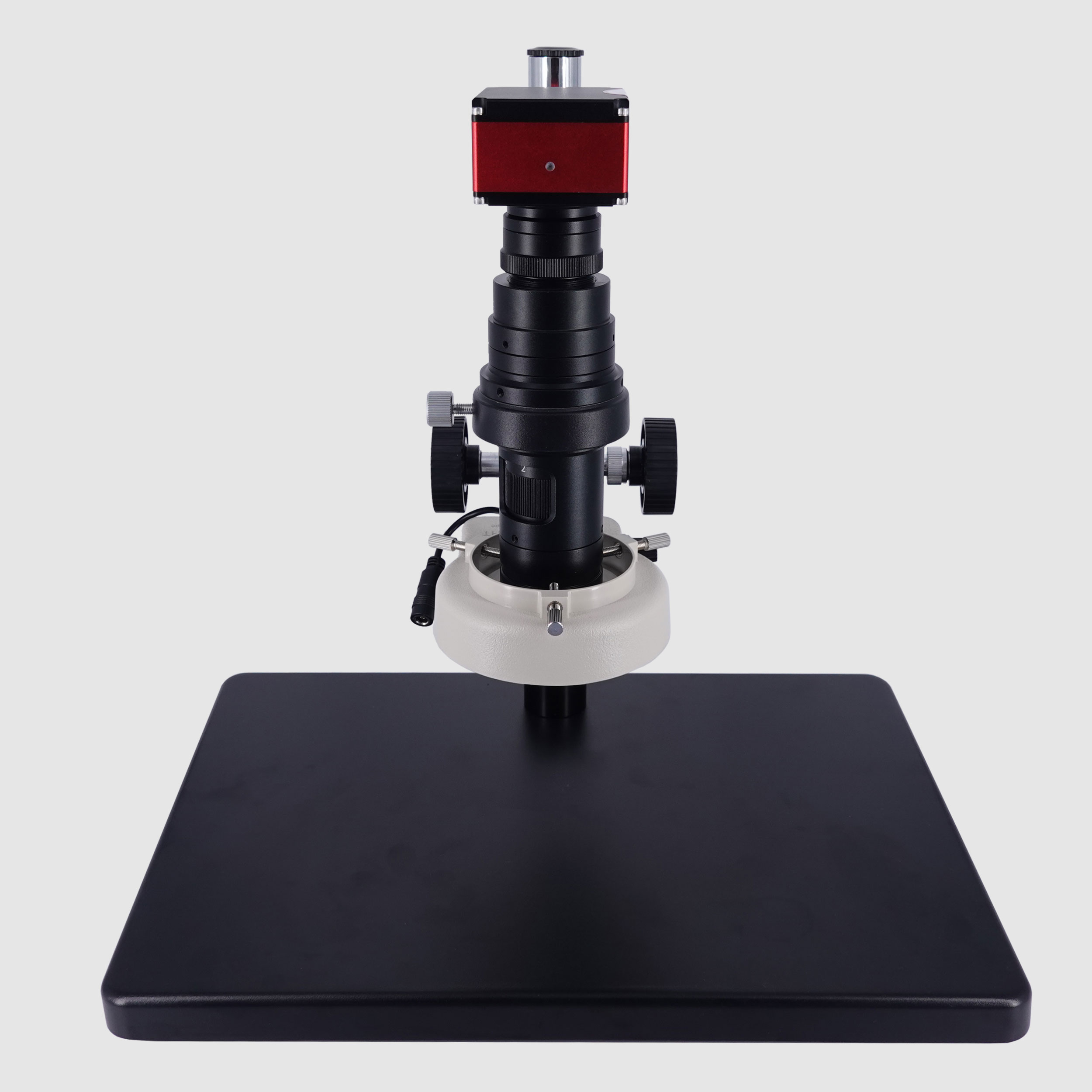

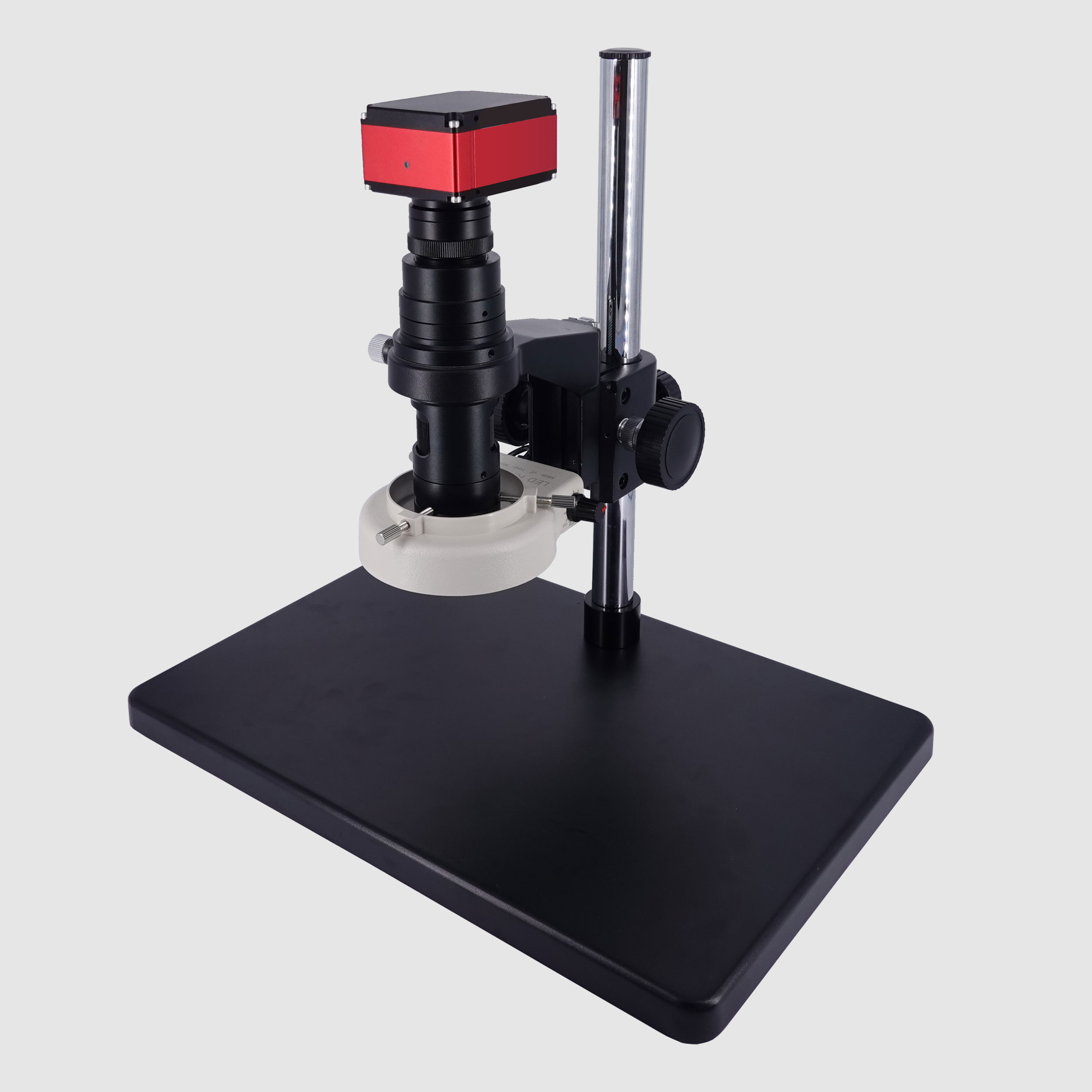

	Main Camera Stand Camera: Industrial camera with high-resolution sensor Mounting Pole: Mounting Pole: 34cm height support column Zoom Lens: Variable magnification optics Light Source: Built-in illumination Fine Adjustment Knob: Precision focus control Light Intensity Control: Brightness adjustment Metal Base Plate: Stable platform (38cm × 26cm)

Camera Interface	Optical Components	LED Ring Light
Power Input: Main connection port USB 2.0 Port: Data transfer connection USB 3.0 Port: High-speed data transfer GigE Connection: Network interface HDMI Output: Direct display connection	C-Mount Interface: Standard lens connection Magnification Scale: Zoom level indicator Magnification Adjustment Ring: Focus control	Mounting Brackets:Secure attachment system Light Intensity Control:Brightness adjustment dial Segment Control Switches:A/B/C/D quadrant lighting selectors

Soluciones Inteligentes Todo-en-Uno para Cada Industria

Nuestros sistemas de visión ofrecen medición precisa y control de calidad en diversas aplicaciones, optimizando su flujo de trabajo con tecnología intuitiva que se adapta a sus necesidades específicas.

Electronic Components Pin measurements on microchips  Solder ball inspection  Gold wire measurements  PCB inspection

Manufacturing Quality Control Small metal part measurements Watch component inspection Fine defect detection

Materials Analysis Lens and wafer scratch/contamination detection Polymer material analysis Fabric and textile inspection

Precision Operations Micro-assembly assistance Small component soldering Detailed visual inspection

Precision Machining & Metal Components Transform your quality control process with high-definition inspection of machined parts. Our system provides crystal-clear views of metal cutting edges, surface finishes, and critical tolerances—all with simple point-and-click measurement tools.	Pin Measurement & Component Analysis Achieve sub-micron measurement accuracy for PCB pins, connectors, and electronic components. The system's auto-detection tools measure point-to-point distances with precision down to 0.001mm, ensuring your components meet exact specifications.
Optical Surface Inspection Detect microscopic scratches, contamination, and defects on lenses, wafers, and sensitive sensor surfaces. The extended depth of field allows full inspection without constant refocusing, dramatically increasing inspection efficiency.	Textile & Polymer Material Analysis Examine fiber quality, weave patterns, and material integrity with exceptional clarity. The 4K color imaging system reveals material characteristics invisible to the naked eye, from synthetic polymers to natural textiles.
Micro-Assembly Operations Support delicate assembly work with hands-free magnification and measurement. The continuous zoom range provides the perfect view for soldering tiny components, wire bonding, and precision positioning tasks.	Watchmaking & Small Parts Inspection Perfect for luxury watch repair and small mechanism inspection. Examine intricate watch movements, gears, and small mechanical parts with exceptional detail, making component verification and defect detection effortless.
