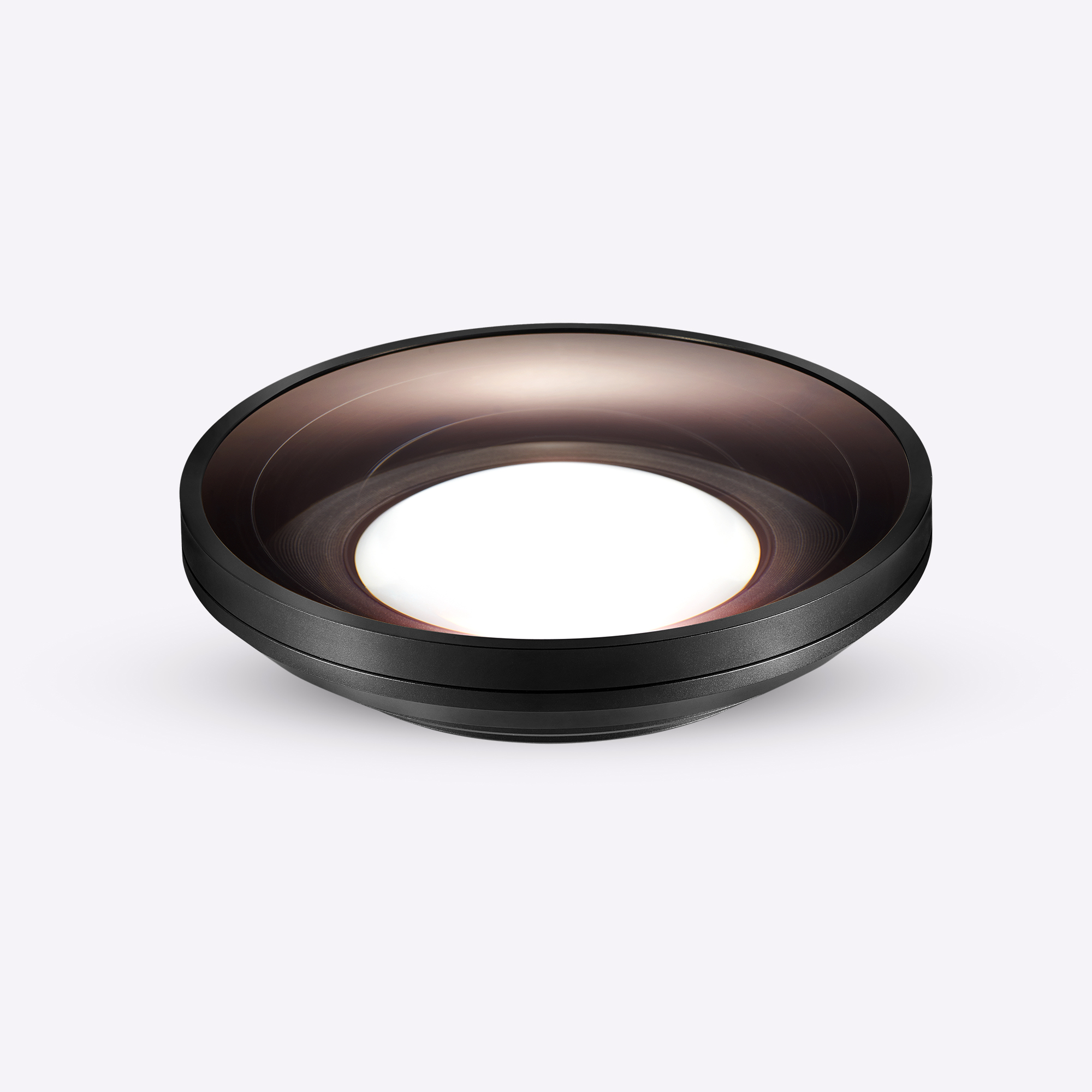

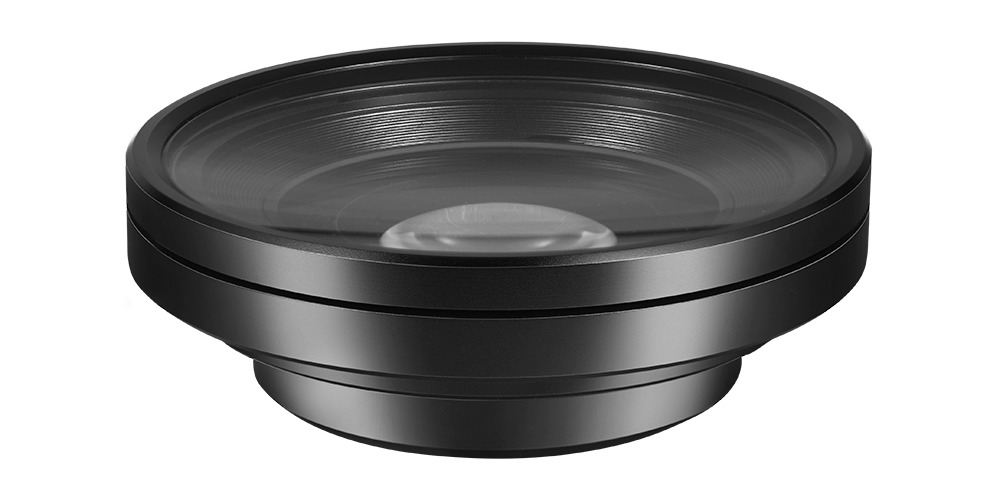

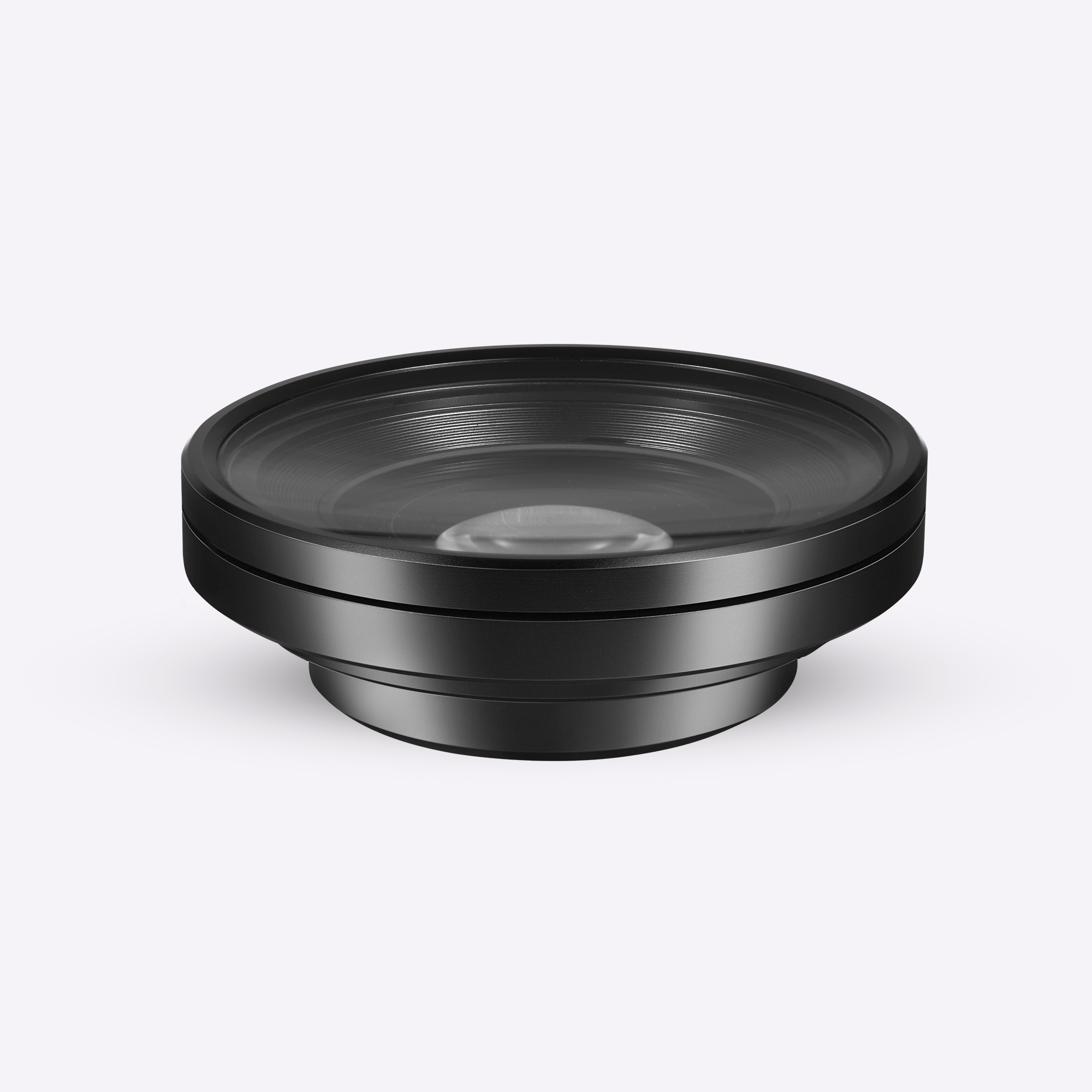

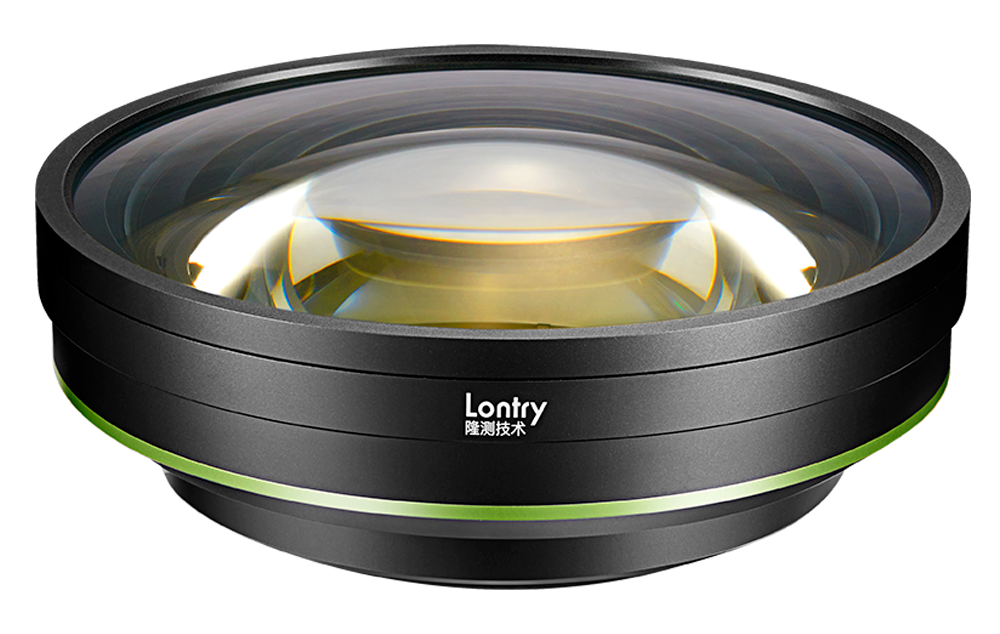

Relay Lens RL09150B
| Model No. | FOV | MDR | Exit Pupil Diameter | Weight | Simulated Distance Range | Distortion | Outline Size |
| RL09150B | 150° | 9mm | 5mm | 4.2kg | 400-INFmm | <60% |
Φ185x75.48mm |

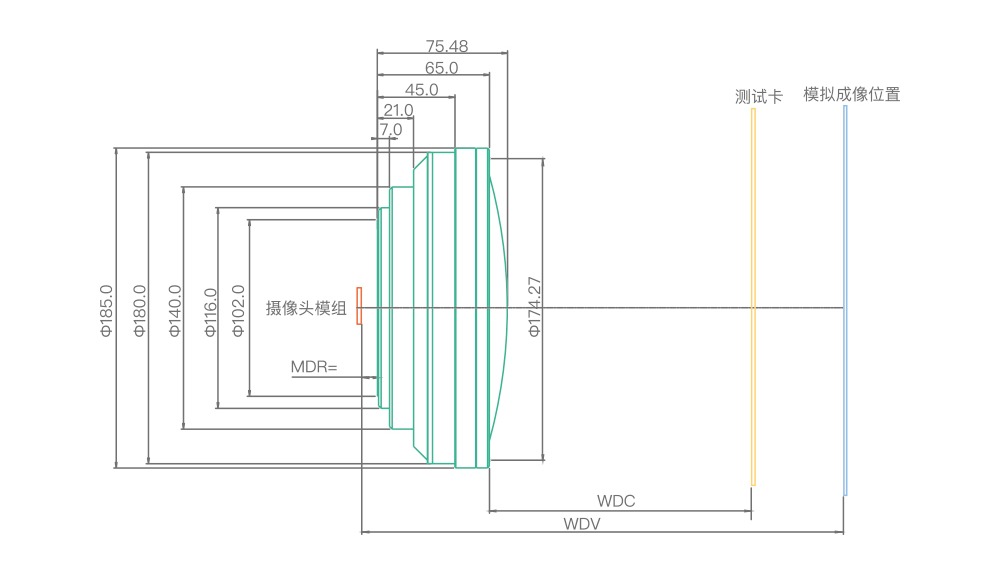

· MDR: Mounting Distance for Relay Lens from CCM top
· WDC: Working Distance for Target from the Injection End of Relay Lens · WDV: Working Distance for Visual Image of the Test Target from CCM top
|
WDV (mm) |

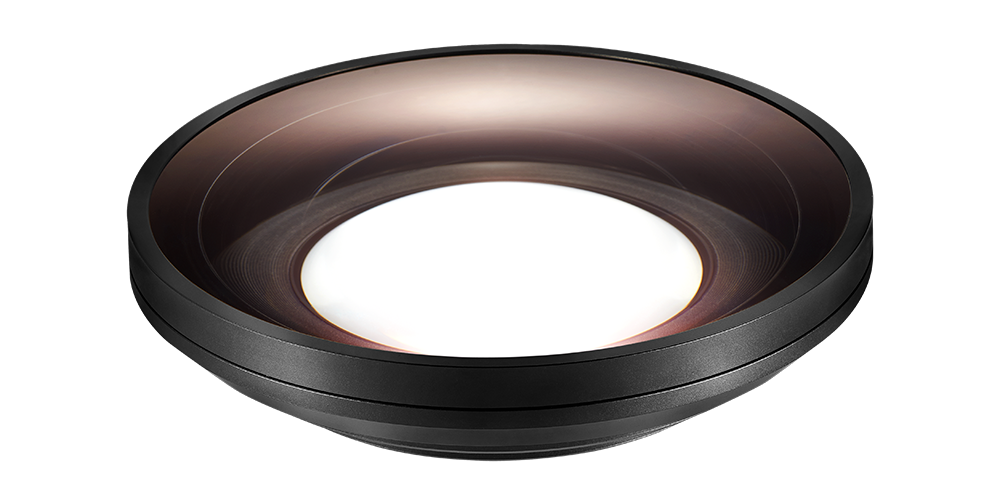

WDC (mm) | Chart Diagonal Size(mm) | |||
| 16:9 | 4:3 | ||||
| length(mm) | width(mm) | length(mm) | width(mm) | ||
| 400 | 139.78 | 425.15 | 239.15 | 390.24 | 292.68 |
| 1000 | 168.55 | 482.07 | 271.16 | 442.48 | 331.86 |
| 5000 | 186.71 | 518.06 | 291.41 | 475.52 | 356.64 |
| ∞ | 191.60 | 527.74 | 296.85 | 484.40 | 363.30 |
| Model No. | FOV | MDR | Exit Pupil Diameter | Weight | Simulated Distance Range | Distortion | Outline Size |
| RL25130-750 | 130° | 18mm | 3mm | 1.08kg | 300-INFmm | <20% |
Φ150x39.8mm |

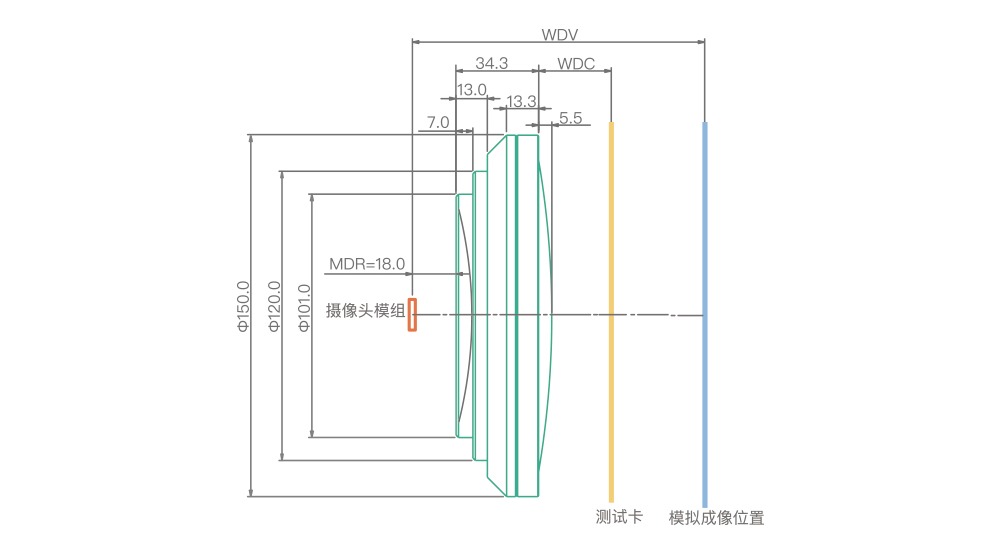

RL25130-750 Structure
· MDR: Mounting Distance for Relay Lens from CCM top
· WDC: Working Distance for Target from the Injection End of Relay Lens · WDV: Working Distance for Visual Image of the Test Target from CCM top
RL25130-750 Specification List
|
WDV (mm) |

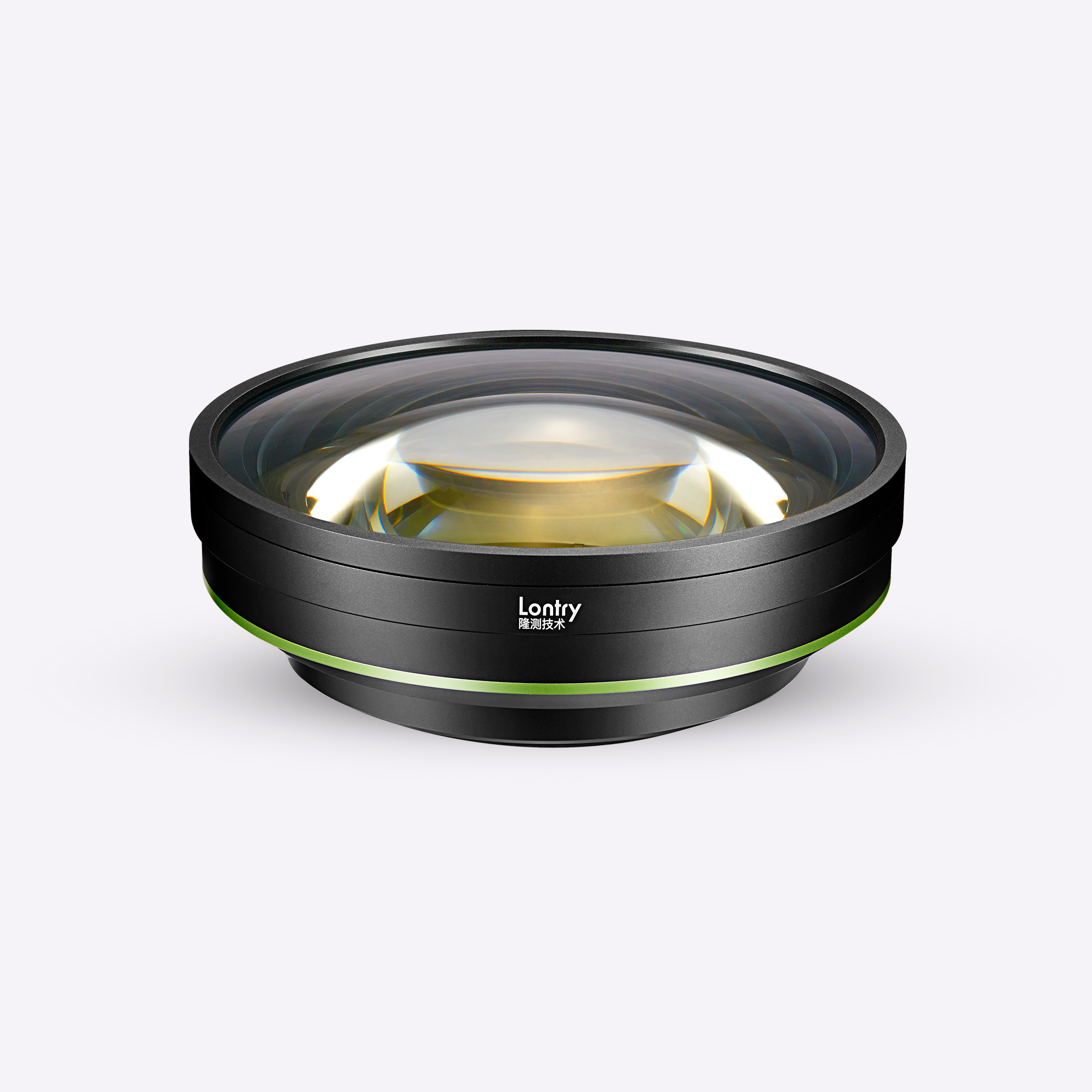

WDC (mm) | Chart Diagonal Size(mm) | |||
| 16:9 | 4:3 | ||||
| length(mm) | width(mm) | length(mm) | width(mm) | ||
| 400 | 171.5 | 595.0 | 334.7 | 546.1 | 409.6 |
| 1000 | 248.0 | 806.5 | 453.7 | 740.3 | 555.2 |
| 5000 | 316.0 | 994.7 | 559.5 | 913.0 | 684.7 |
| ∞ | 338.3 | 1056.2 | 594.1 | 969.5 | 727.1 |
| Model No. | FOV | MDR | Exit Pupil Diameter | Weight | Simulated Distance Range | Distortion | Outline Size |
| RL06130C | 130° | 6mm | 4.5mm | 0.35kg | 250-INFmm | <15% |
Φ92x31mm |

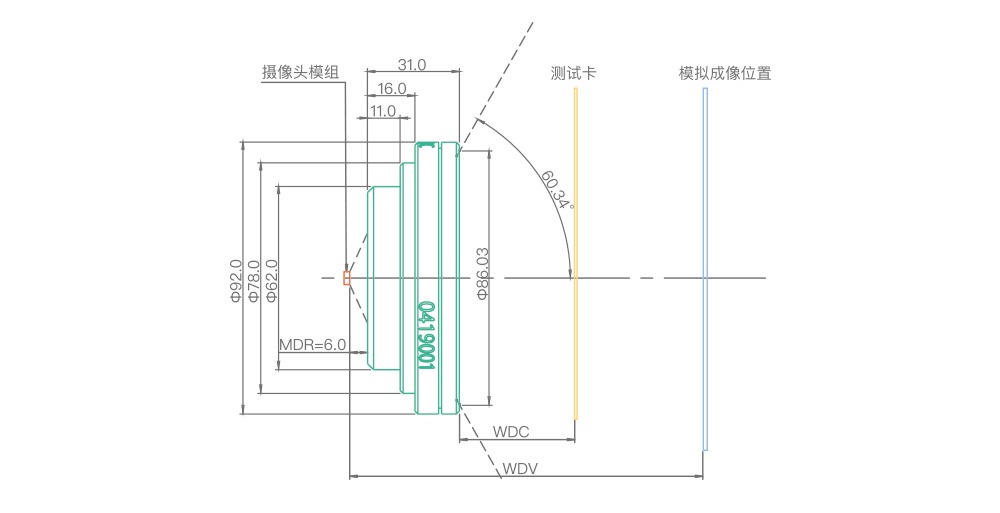

RL10116 Structure
· MDR: Mounting Distance for Relay Lens from CCM top
· WDC: Working Distance for Target from the Injection End of Relay Lens · WDV: Working Distance for Visual Image of the Test Target from CCM top
RL06130C Specification List
|
WDV (mm) |
WDC (mm) | Chart Diagonal Size(mm) | |||
| 16:9 | 4:3 | ||||
| length(mm) | width(mm) | length(mm) | width(mm) | ||
| 300 | 115.4 | 428.7 | 241.1 | 393.5 | 295.1 |
| 1000 | 171.9 | 603.0 | 339.2 | 553.4 | 415.1 |
| 5000 | 203.1 | 699.5 | 393.5 | 642.1 | 481.6 |
| ∞ | 212.52 | 728.6 | 409.8 | 668.7 | 501.6 |
| Model No. | FOV | MDR | Exit Pupil Diameter | Weight | Simulated Distance Range | Distortion | Outline Size |

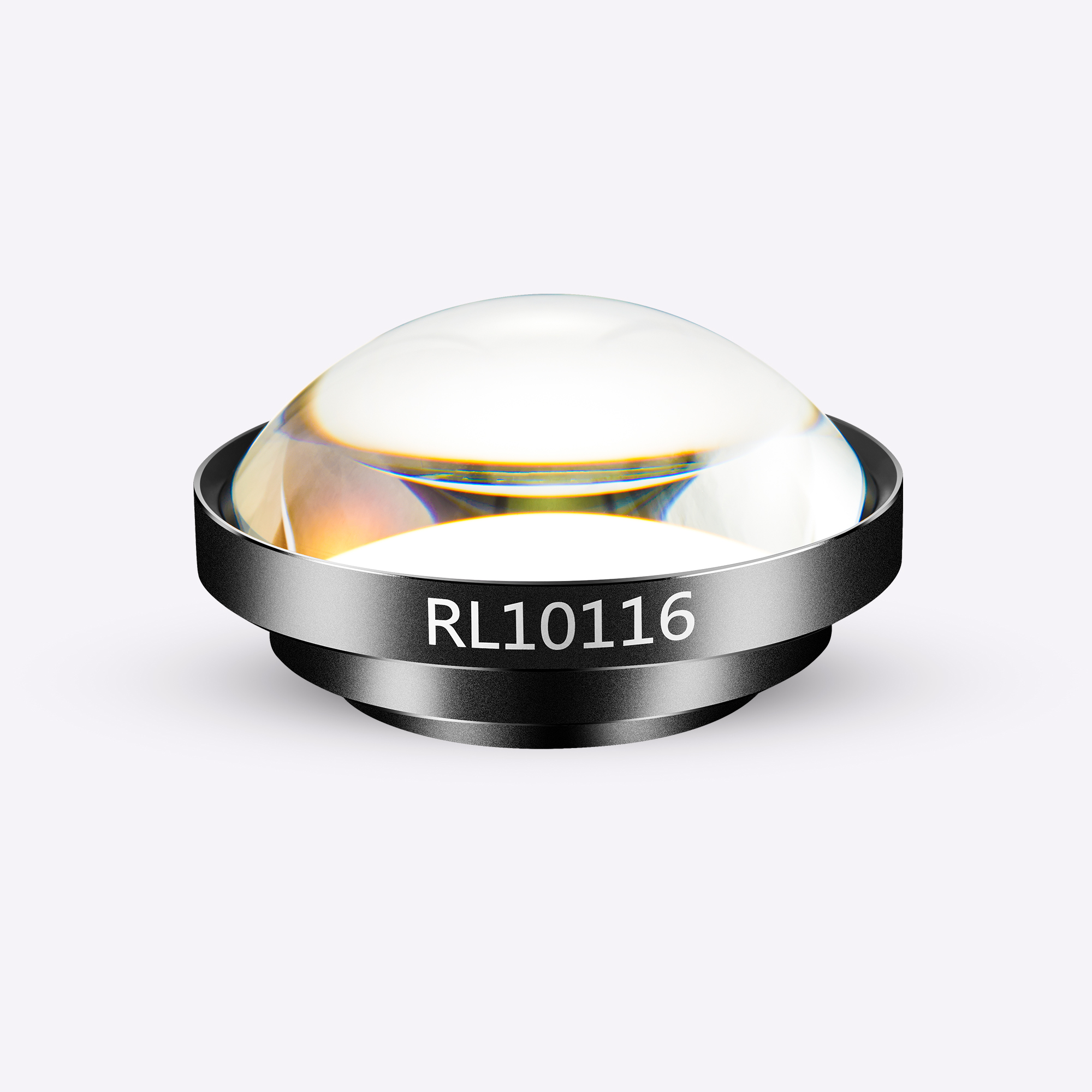

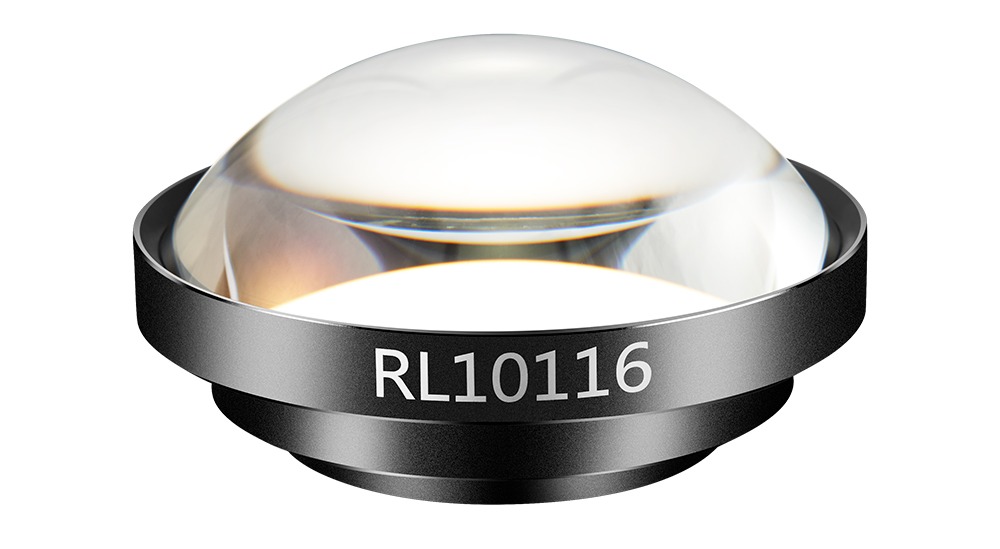

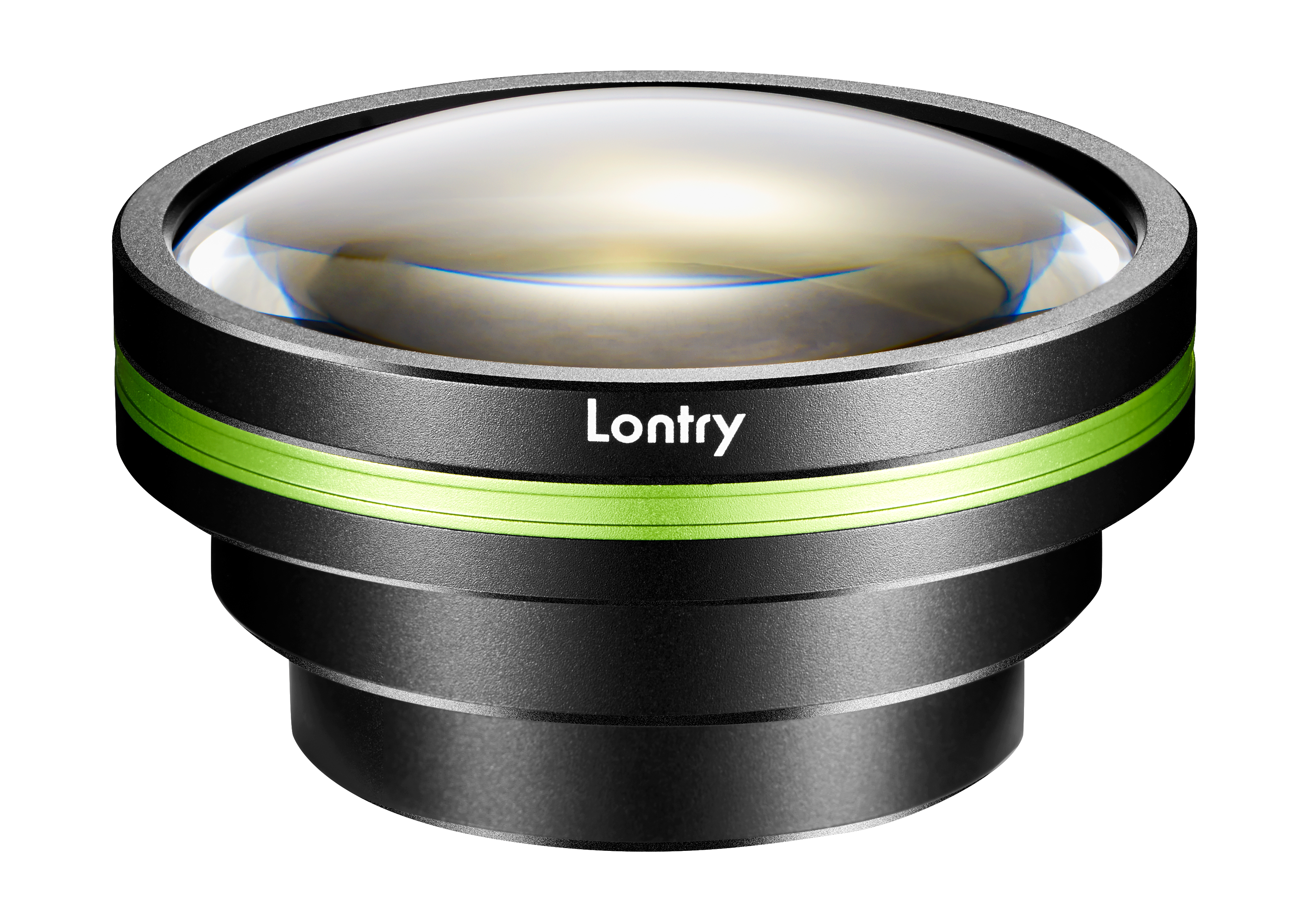

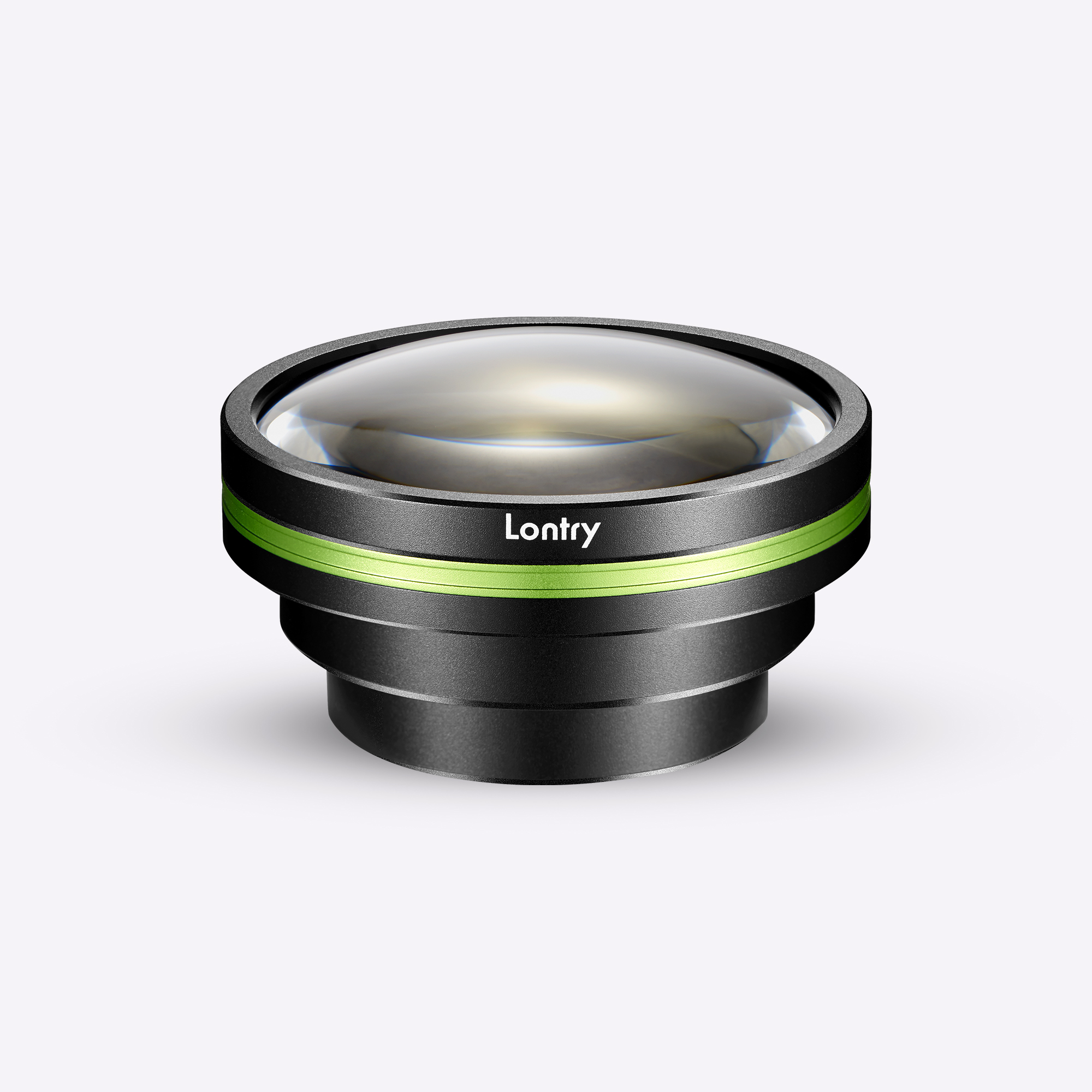

| RL10116 | 116° | 10mm | 4.5mm | 0.51kg | 350-INFmm | <20% |
Φ89.5x48.54mm |

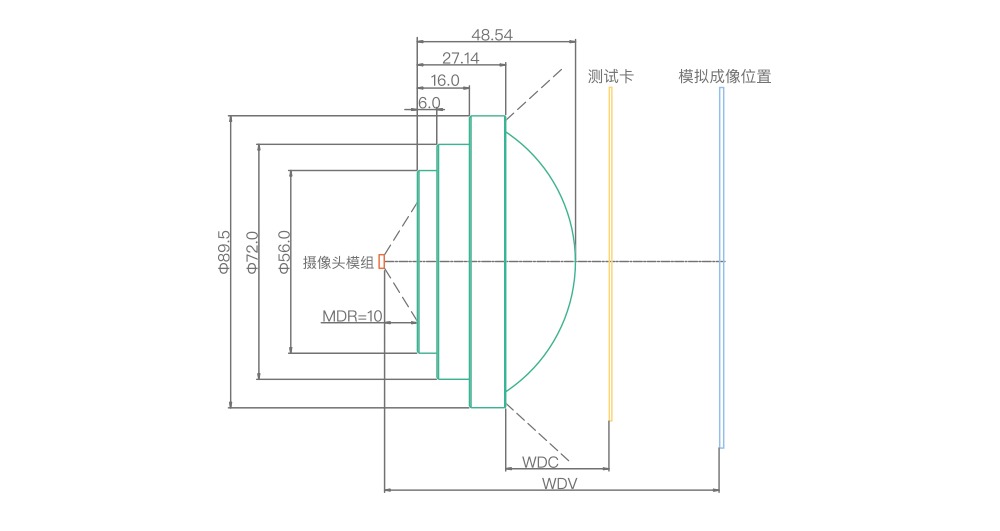

RL10116 Structure
· MDR: Mounting Distance for Relay Lens from CCM top
· WDC: Working Distance for Target from the Injection End of Relay Lens · WDV: Working Distance for Visual Image of the Test Target from CCM top
RL10116 Specification List
|
WDV (mm) |
WDC (mm) | Chart Diagonal Size(mm) | |||
| 16:9 | 4:3 | ||||
| length(mm) | width(mm) | length(mm) | width(mm) | ||
| 400 | 213.18 | 415.22 | 233.56 | 381.12 | 285.84 |
| 1000 | 275.43 | 515.19 | 289.79 | 472.88 | 354.66 |
| 5000 | 322.57 | 590.93 | 332.40 | 542.40 | 406.80 |
| ∞ | 336.59 | 613.41 | 345.05 | 563.04 | 422.28 |
| Model No. | FOV | MDR | Exit Pupil Diameter | Weight | Simulated Distance Range | Distortion | Outline Size |
| RL4045 | 45° | 40mm | 18mm | 0.1kg | 300-INFmm | <0.3% |
Φ58x34.17mm |

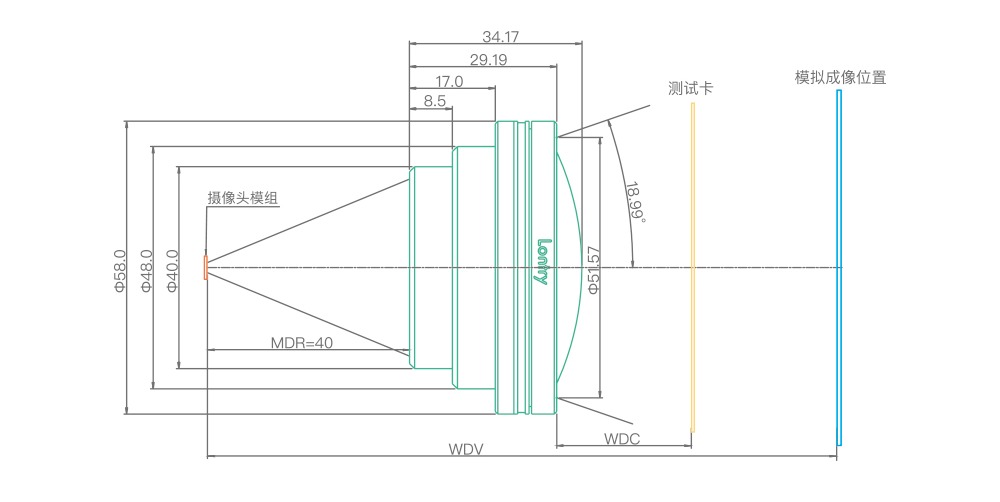

RL4045 Structure
· MDR: Mounting Distance for Relay Lens from CCM top
· WDC: Working Distance for Target from the Injection End of Relay Lens · WDV: Working Distance for Visual Image of the Test Target from CCM top
RL4045 Specification List
|
WDV (mm) |
WDC (mm) | Chart Diagonal Size(mm) | |||
| 16:9 | 4:3 | ||||
| length(mm) | width(mm) | length(mm) | width(mm) | ||
| 500 | 231.20 | 183.32 | 103.12 | 168.26 | 126.20 |
| 1000 | 315.16 | 234.18 | 131.73 | 214.95 | 161.21 |
| 5000 | 425.37 | 300.95 | 169.28 | 276.24 | 207.18 |
| ∞ | 463.49 | 324.05 | 182.28 | 297.43 | 223.08 |
