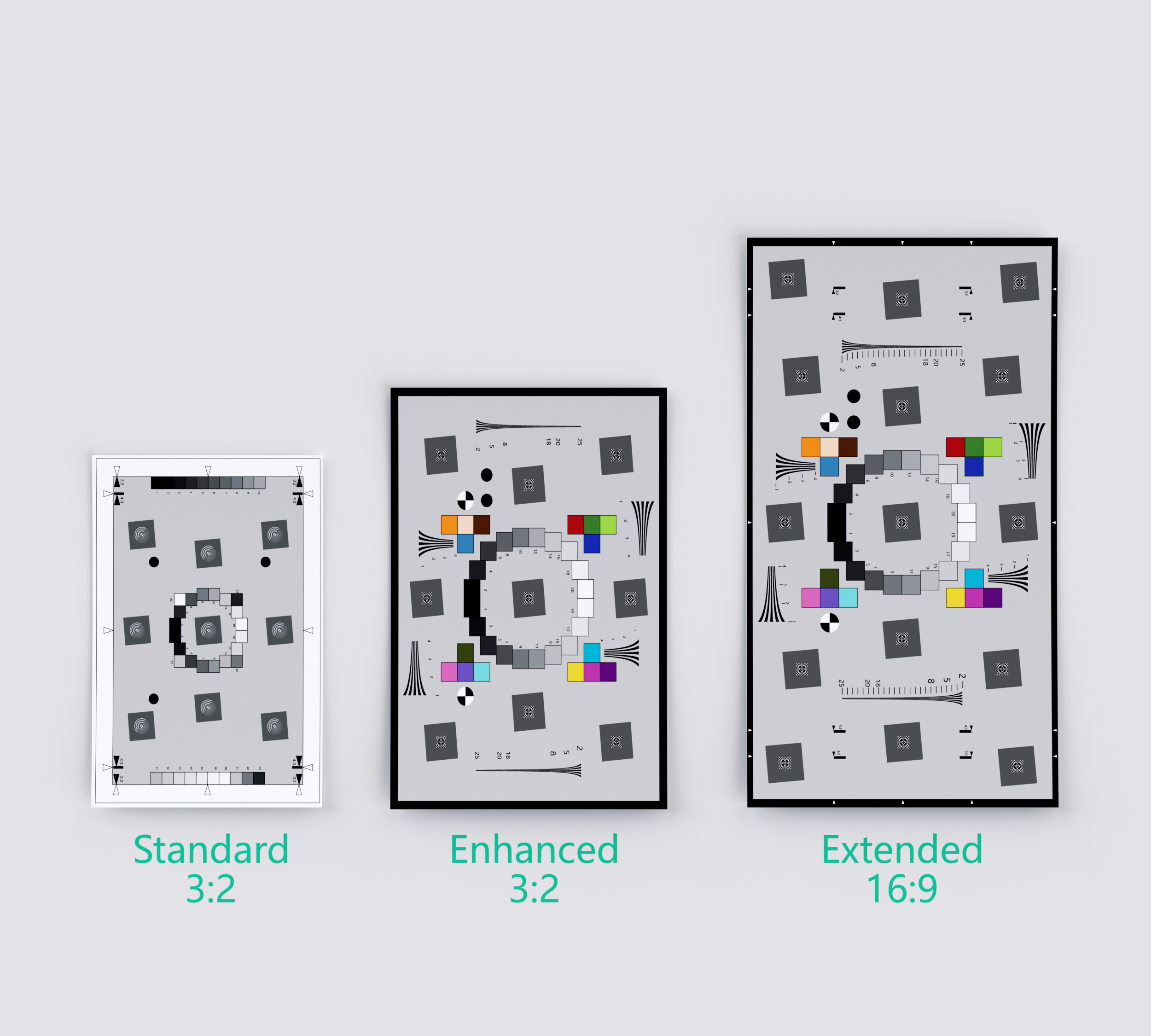

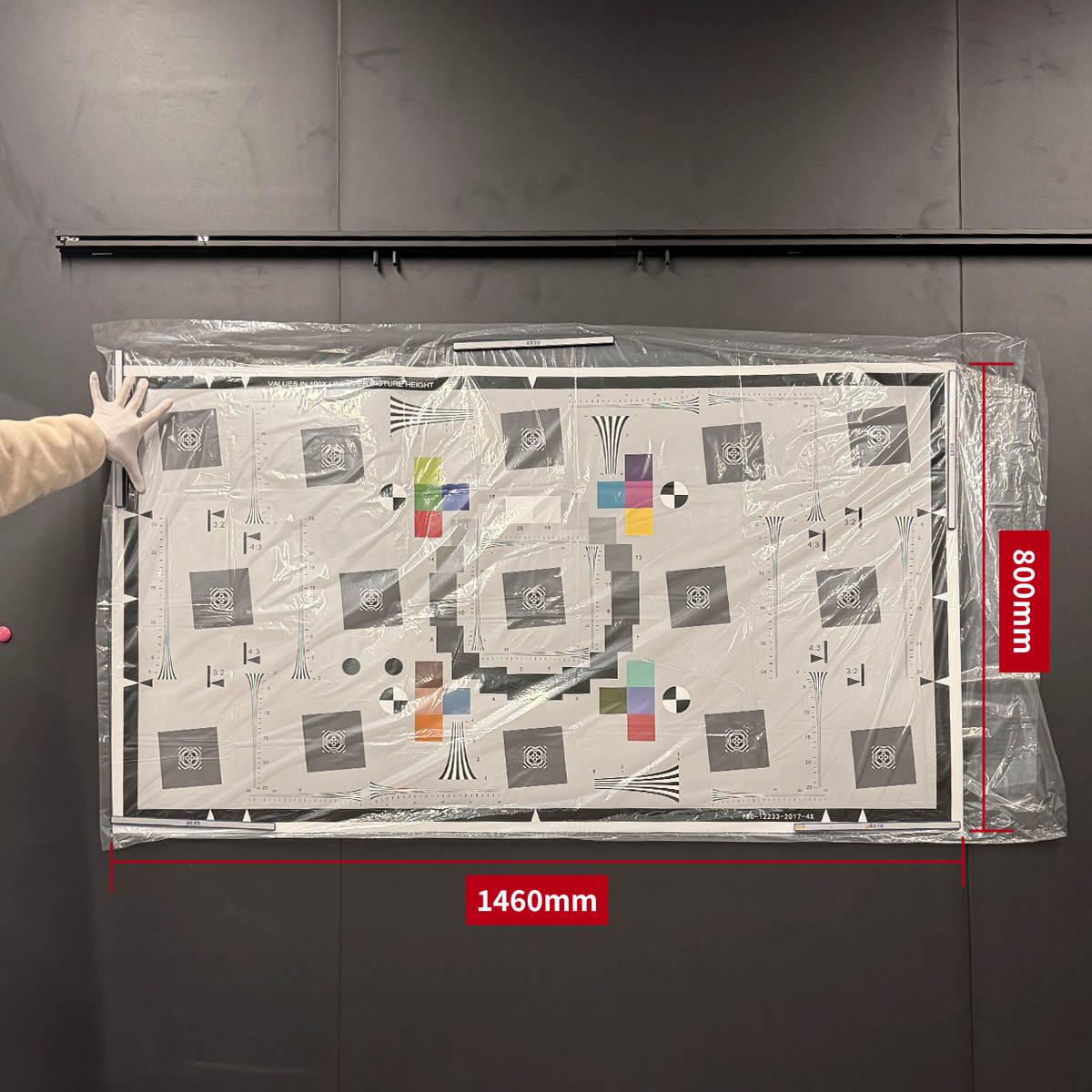

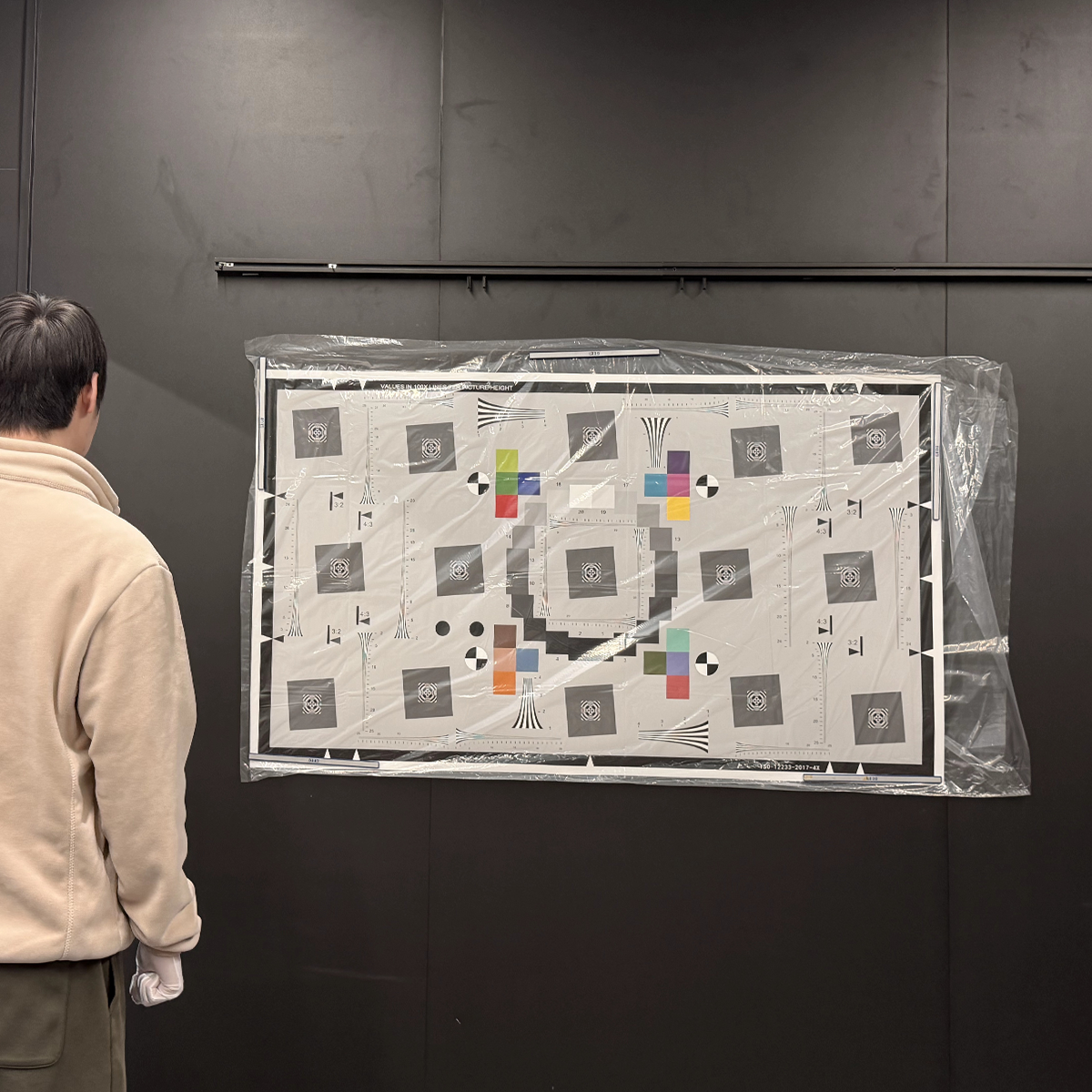

ISO12233 2017 Edge SFR Test Charts
$303.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | Material | Substrate Type | Active Pattern Area | Pattern Type | Standard | Accuracy |
| LT-FT-200x305-eSFR | Film | Transmissive |
200x305 mm |
3:2, Standard, 1.0X | ISO-12233 2017 | ±15μm |
| LT-WFT-200x356-eSFR | White Film | Transmissive |
200x356 mm |
16:9, Standard, 1.0X | ISO-12233 2017 | ±20μm |
| LT-FT-400x610-eSFR | Film | Transmissive |
400x610 mm |
3:2, Standard, 2.0X | ISO-12233 2017 | ±15μm |
| LT-WFT-400x730-eSFR | White Film | Transmissive |
400x730 mm |
16:9, Extended, 2.0X | ISO-12233 2017 | ±20μm |
| LT-FT-800x1220-eSFR | Film | Transmissive |
800x1220 mm |
3:2, Standard, 4.0X | ISO-12233 2017 | ±15μm |
| LT-WFT-800x1460-eSFR | White Film | Transmissive |
800x1460 mm |
16:9, Extended, 4.0X | ISO-12233 2017 | ±20μm |
|
LT-PT-800x1220-eSFR |
Photo Paper | Transflective |
800x1220 mm |
3:2, Standard, 4.0X | ISO-12233 2017 | ±0.1mm |
|
LT-PT-800x1460-eSFR |
Photo Paper | Transflective |
800x1460 mm |
16:9, Extended, 4.0X | ISO-12233 2017 |
±0.1mm |
