ISO 12233 Digital Resolution Still Camera Test Chart
  • ISO 12233 Test Chart for Comprehensive Digital Camera Testing and Analysis | Oklab
  • ISO 12233 Digital Resolution Still Camera Test Chart
1 / 2

ISO 12233 Test Chart for Comprehensive Digital Camera Testing and Analysis | Highgovision

$27.00 USD
Material
Pattern Type
Over Size
PCS

  • Return & Refund Policy

  • Fast Delivery

  • One-on-one service

  • Reliable Manufacturer

  • Worldwide shipping

  • Multiple payment methods

Standard Item Options

Model NO. Material Substrate Type Active Pattern Area Pattern Type  Standard Accuracy
LT-FT-0.25X-ISO12233 Film Transmission 50 x 89mm 16:9, Standard, 0.25X  ISO-12233 ±15μm
LT-FT-0.5X-ISO12233 Film Transmission 100 x 178mm 16:9, Standard, 0.5X  ISO-12233 ±15μm
LT-FT-0.75X-ISO12233 Film Transmission 144 x 267mm 16:9, Standard, 0.75X  ISO-12233 ±15μm
LT-FT-1X-ISO12233 Film Transmission 200 x 356mm 16:9, Standard, 1.0 X  ISO-12233 ±15μm
LT-FT-1X- ISO12233 Pro Film Transmission 200 x 356mm 16:9, Pro, 1.0 X  ISO-12233 ±15μm
LT-PT-1X-ISO12233 Photo Paper Transflective 200 x 356mm 16:9, Standard, 1.0 X  ISO-12233 ±0.1mm
 LT-PT-2X-ISO12233 Pro Photo Paper Transflective 400 x 712mm 16:9, Pro, 2.0 X   ISO-12233  ±0.1mm
LT-PT-3X-ISO12233 Photo Paper Transflective 600 x 1068mm 16:9, Standard, 3.0 X  ISO-12233 ±0.1mm



Specification

Product Film
Pattern Production Process Reprint
Minimum Line/space 15μm / 30μm
Feature Accuracy ±10μm
Coating Photosensitive ink
Optical Density OD 2(Transmittance=1%)
Reflectivity 6%
Color Selection Black
Film Base Application Reflective and Transmissive illumination applications
Expansion Coeff  18μm/℃ of 1m
The film contract with heat and expand with cold.
When the relative humidity is constant, the film with a length of 1m will change by 18μm when the temperature changes by 1℃.
Transmission
(400~700nm)		 >50%
Film Base Thickness 0.1±0.01mm)
MAX Size 1.8x1.2m (±0.1mm) (Min Line 15μm)
Waterproof Waterproof
Overall Shape Straight Edge Cutting / Round Hole Hollowing by Laser Cutting

Hyperbolic Wedges

Special curved patterns that help determine the finest detail a camera can capture, ranging from basic to ultra-high resolution

Checker Patterns

Black and white squares that help detect image distortion and focus issues

Slant-Edge Lines

Angled lines that reveal how sharp camera edges really are

Center-Focus Zones

Targets that test if the camera focuses accurately on the center point

Important: Remove Protective Film Before Use

📋 NOTICE: Your ISO 12233 Test Chart comes with a protective film on the surface to prevent scratches during shipping and handling.

🔧 BEFORE FIRST USE: Please carefully remove the protective film to ensure optimal testing results and image clarity.

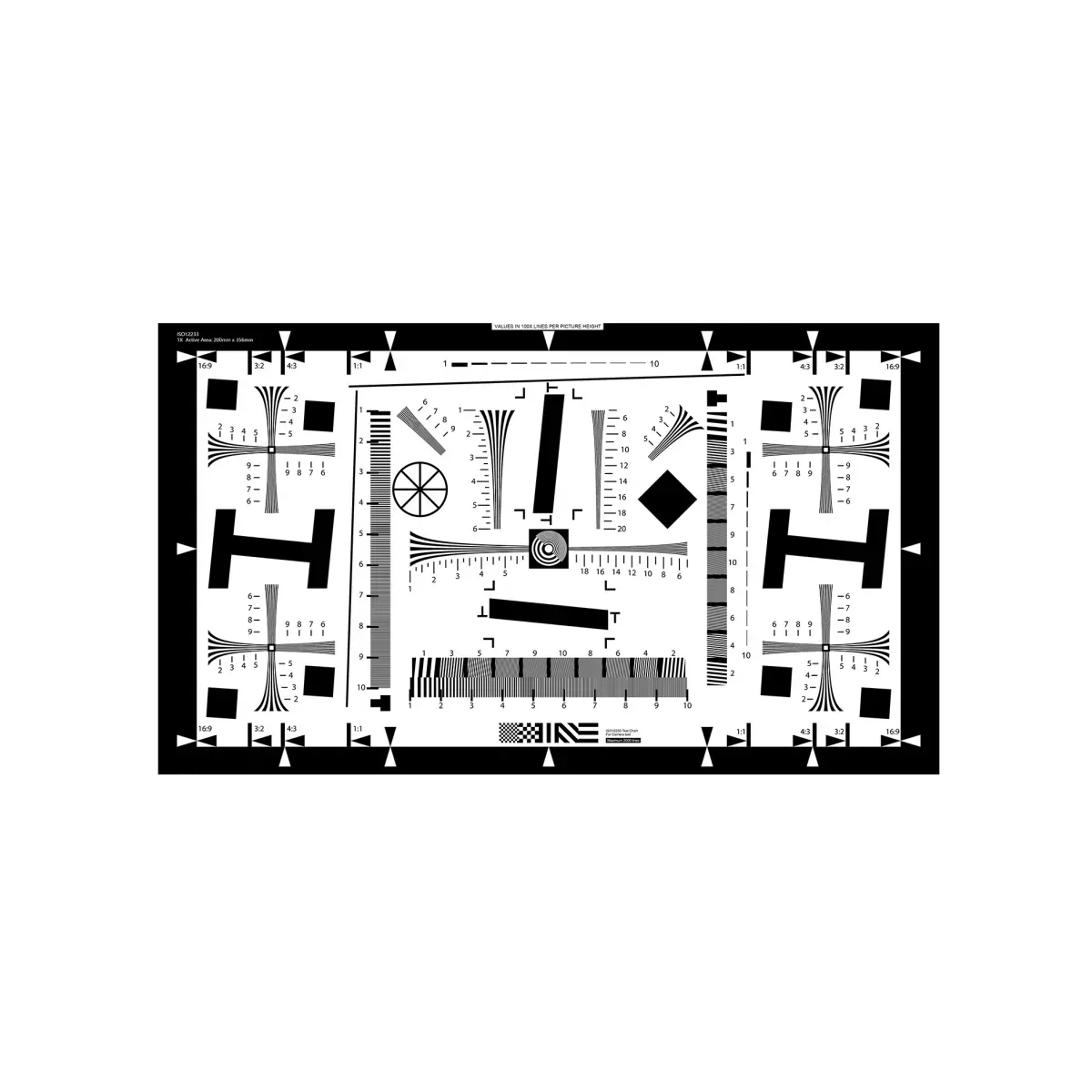

What are ISO 12233 Test Charts?

ISO 12233 Test Charts are standardized patterns used to evaluate the resolution and image quality performance of digital cameras and imaging systems.

ISO 12233 Test Charts are precision-manufactured testing targets that conform to the internationally recognized ISO-12233:2000 standard. These charts contain specific geometric patterns designed to measure how well cameras can capture fine details, maintain sharpness, and reproduce accurate images.

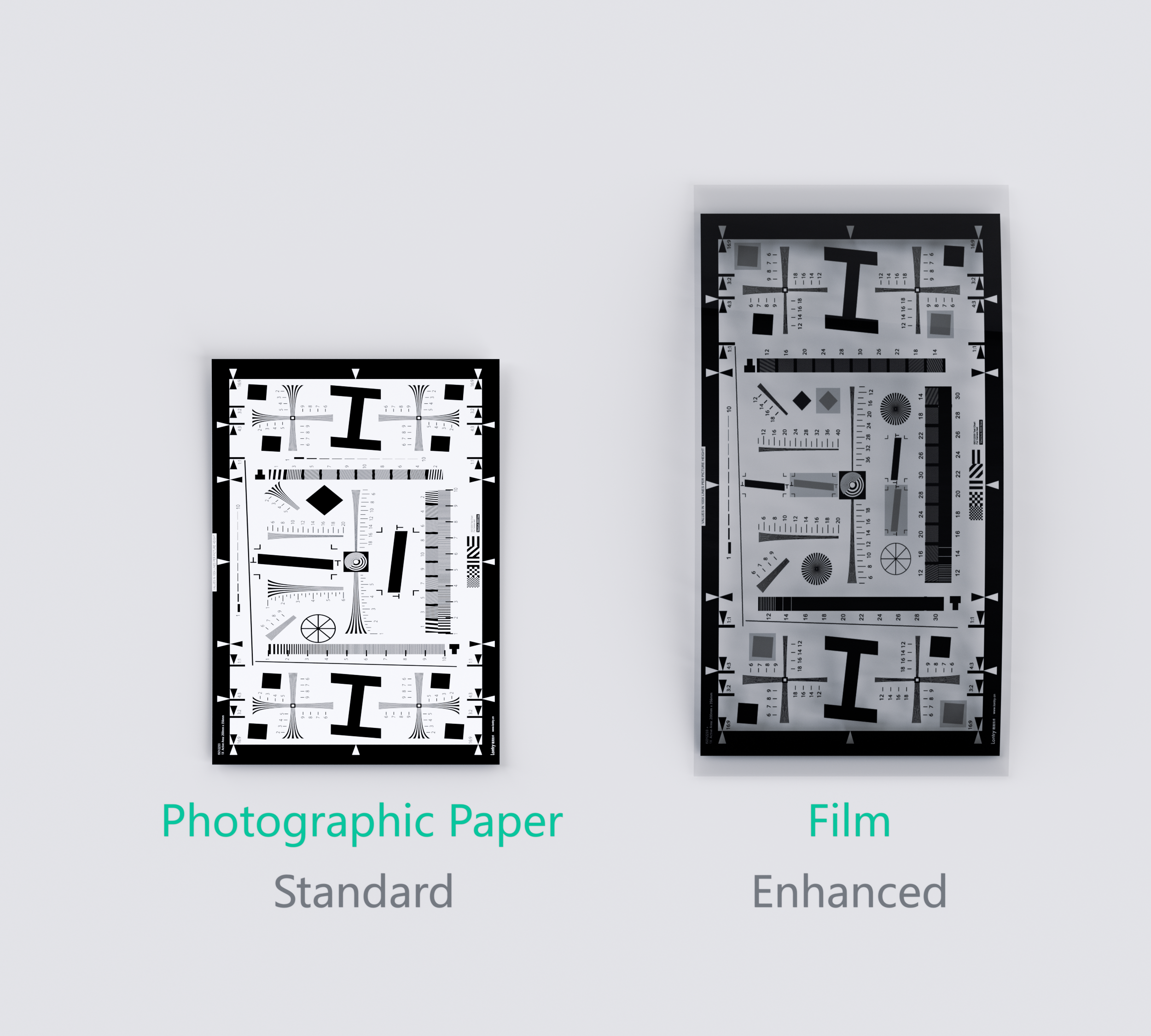

Standard Version

Enhanced Version
Full ISO-12233:2000 Compliance for Essential Camera Testing Advanced Features for Next-Generation Camera Development
The Standard version provides complete conformity to the internationally recognized ISO-12233:2000 standard, delivering all the core testing patterns camera manufacturers rely on. Features precision hyperbolic wedges that evaluate camera resolution from 100 to 2000 lines per picture height - covering the range needed for most digital camera applications. The Enhanced version includes everything from the Standard version plus cutting-edge test patterns designed for high-resolution camera development and advanced image analysis. Extended resolution range reaches up to 4000 Line Width/Pixel Height - ideal for ultra-high resolution sensors and emerging camera technologies.
Essential test elements include:
  • Checker patterns for distortion analysis
  • Multiple slant-edge lines for sharpness evaluation
  • Center-focus zone plates for autofocus accuracy testing
  • Universal framing marks supporting 1:1, 4:3, 3:2, and 16:9 aspect ratios
 Advanced features include:
  • Star Sector targets for comprehensive angular resolution analysis
  • 5° slant bars for enhanced edge detection testing
  • 5° dark gray squares optimized for advanced SFR (Spatial Frequency Response) analysis
  • Extended hyperbolic wedges supporting 2x higher resolution testing range
  • All Standard version features plus next-generation test patterns

Perfect for routine quality control, production testing, and standard camera evaluation.

Essential for R &D teams, high-end camera development, and cutting-edge imaging applications.

Industry Applications & Use Cases

Whether you're developing the next smartphone camera or testing professional photography equipment, these charts provide the industry-standard patterns you need to ensure your cameras perform at their best.

  • Camera Manufacturers - Quality control and product validation
  • Testing Labs - Independent camera performance analysis
  • R&D Teams - New camera technology development
  • Quality Assurance - Production line testing and certification
