These cables can be used in demanding applications.
They are ensure network throughput in harsh industrial environments.

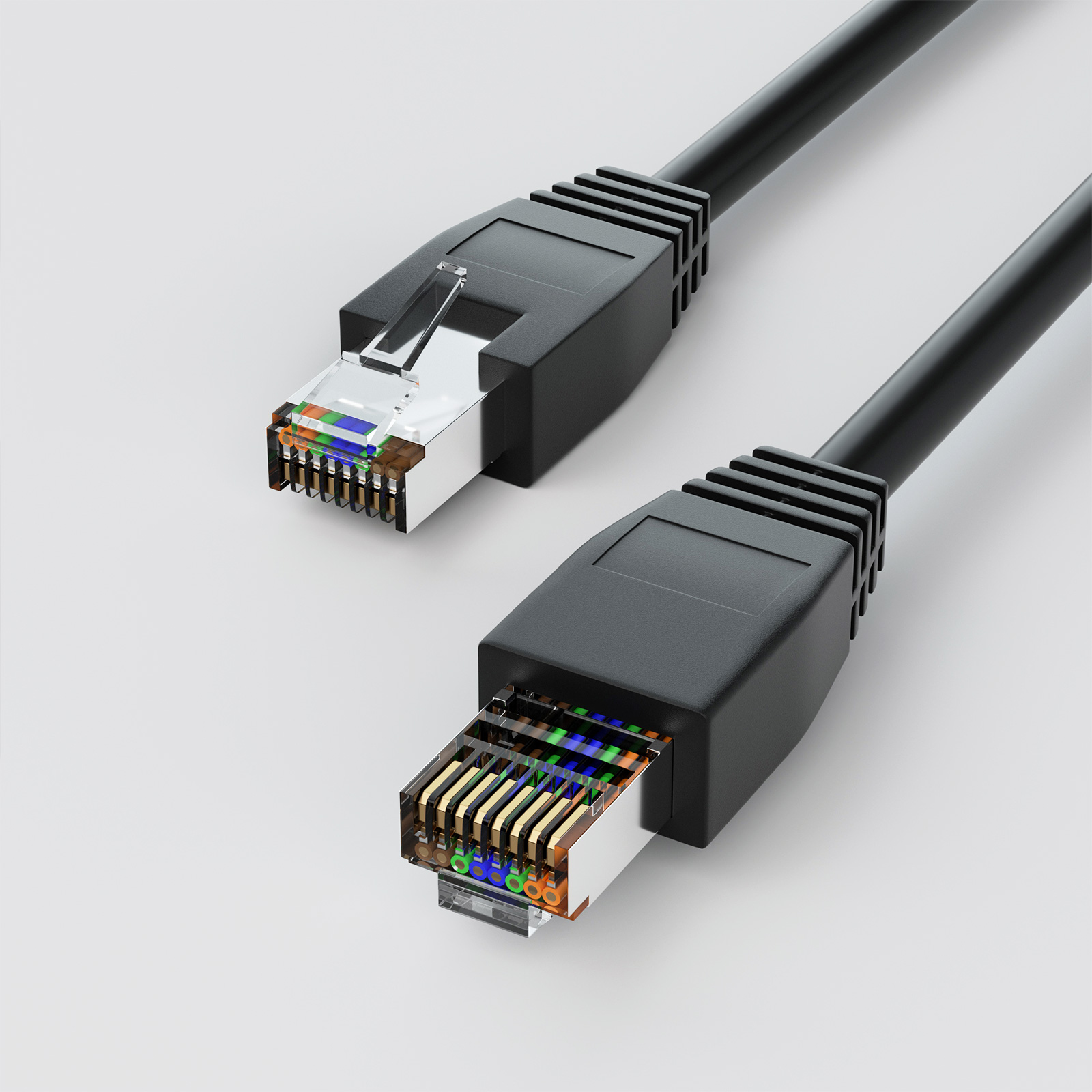

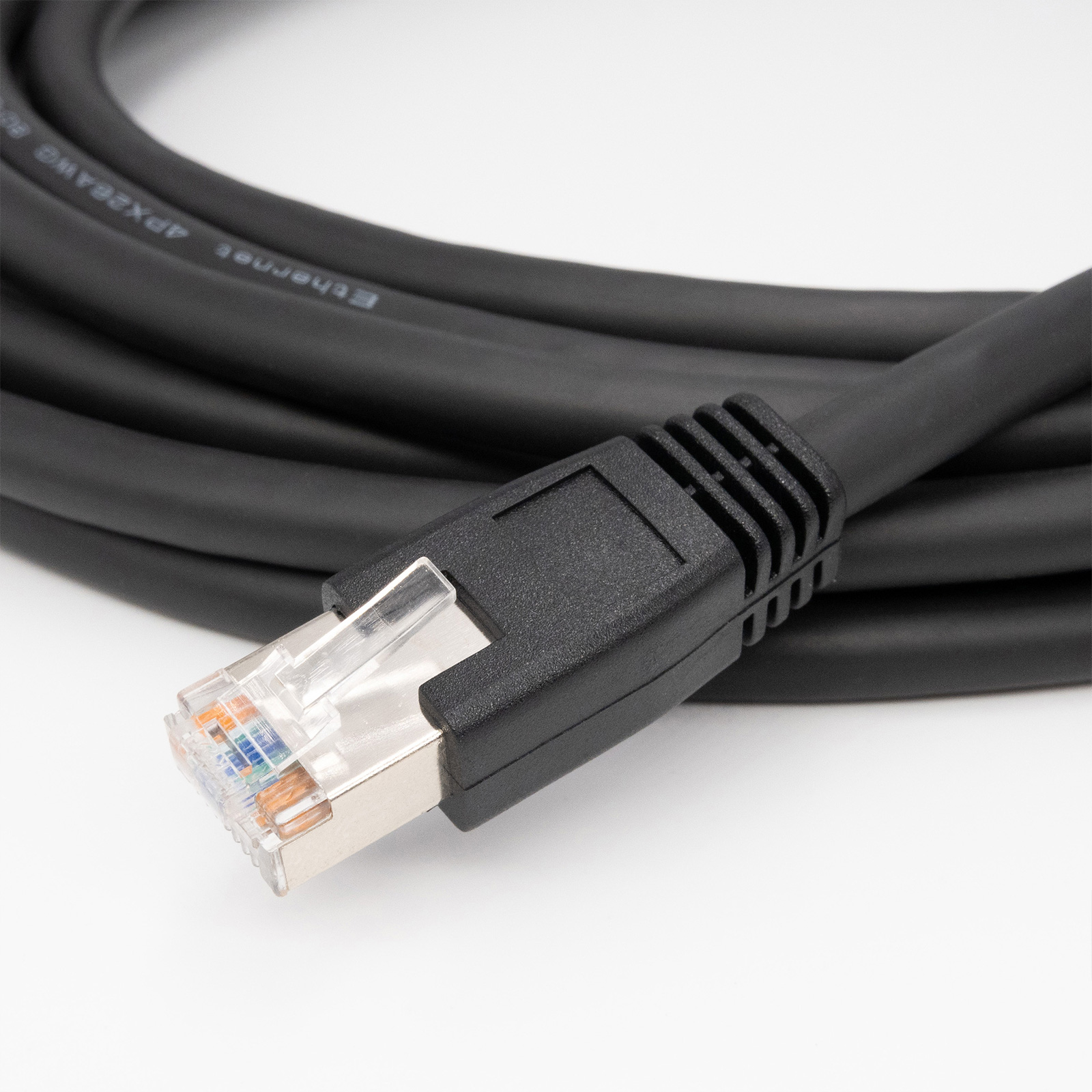

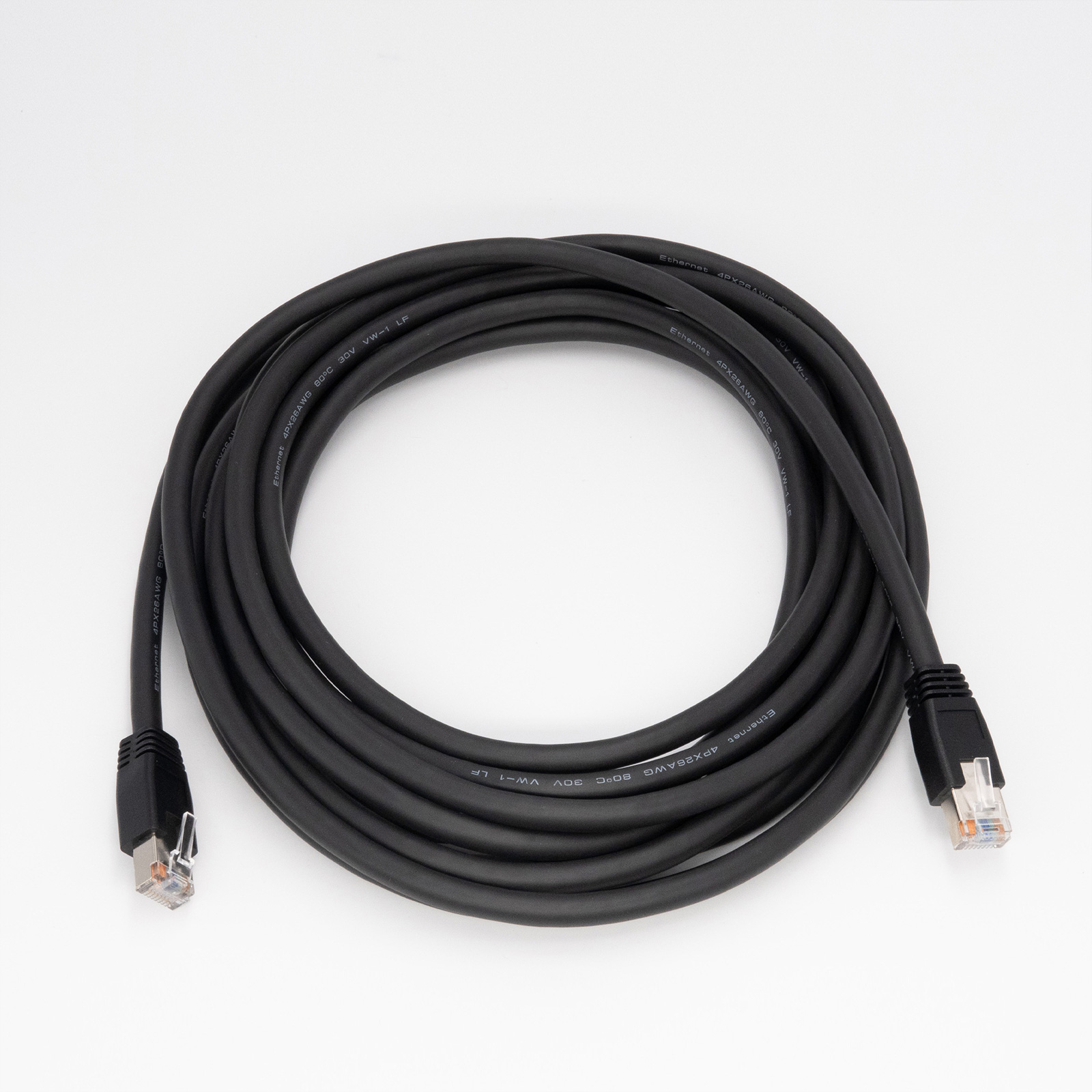

• This twisted GigE cable is used for data transmission and comes outfitted with two RJ45 plugs, one with horizontal screw.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.
• High flexible, drag chain test 20KK cycles.

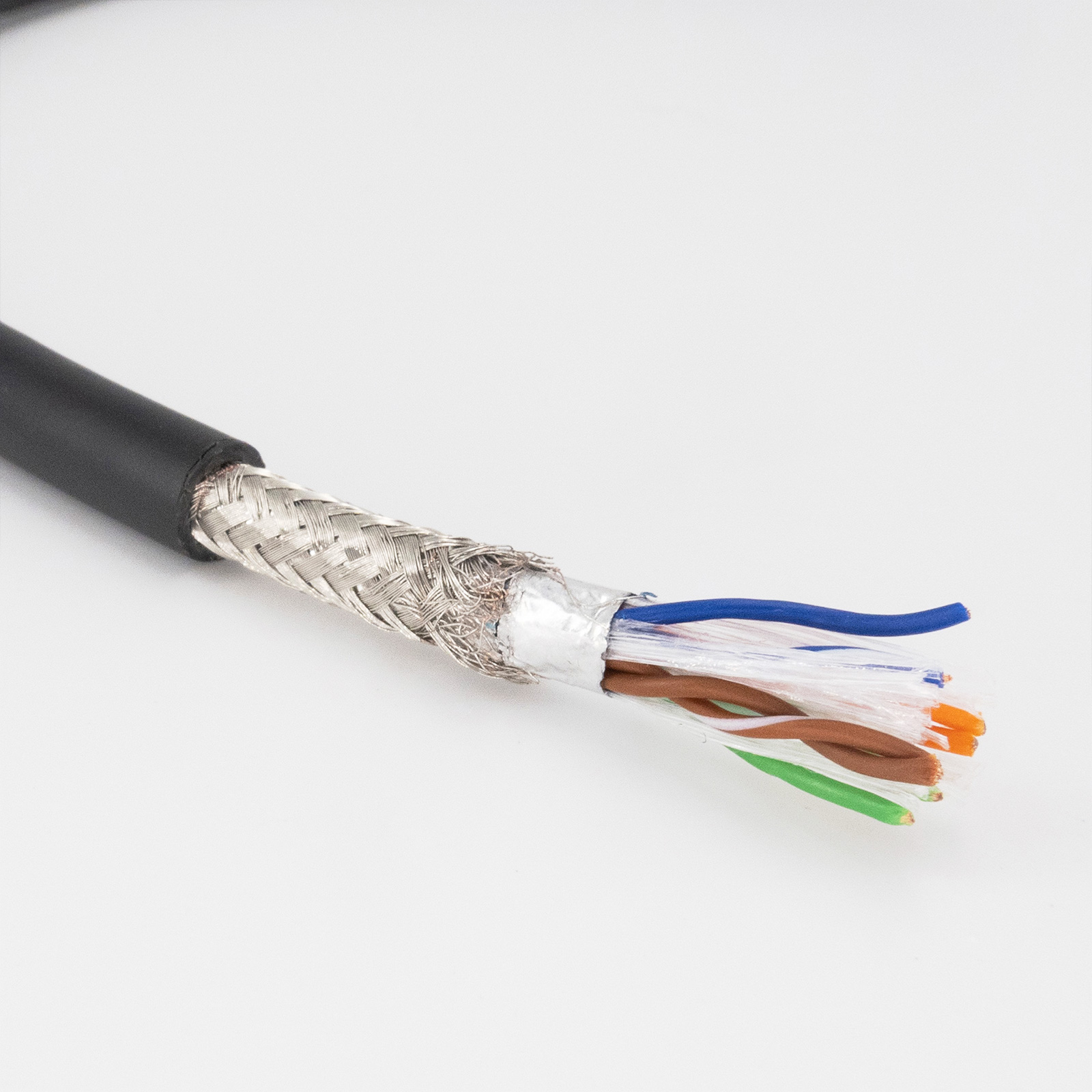

• 99% shielded, reliable signal transmission, 360 degree omni-directional Shielding in EMI Environment.

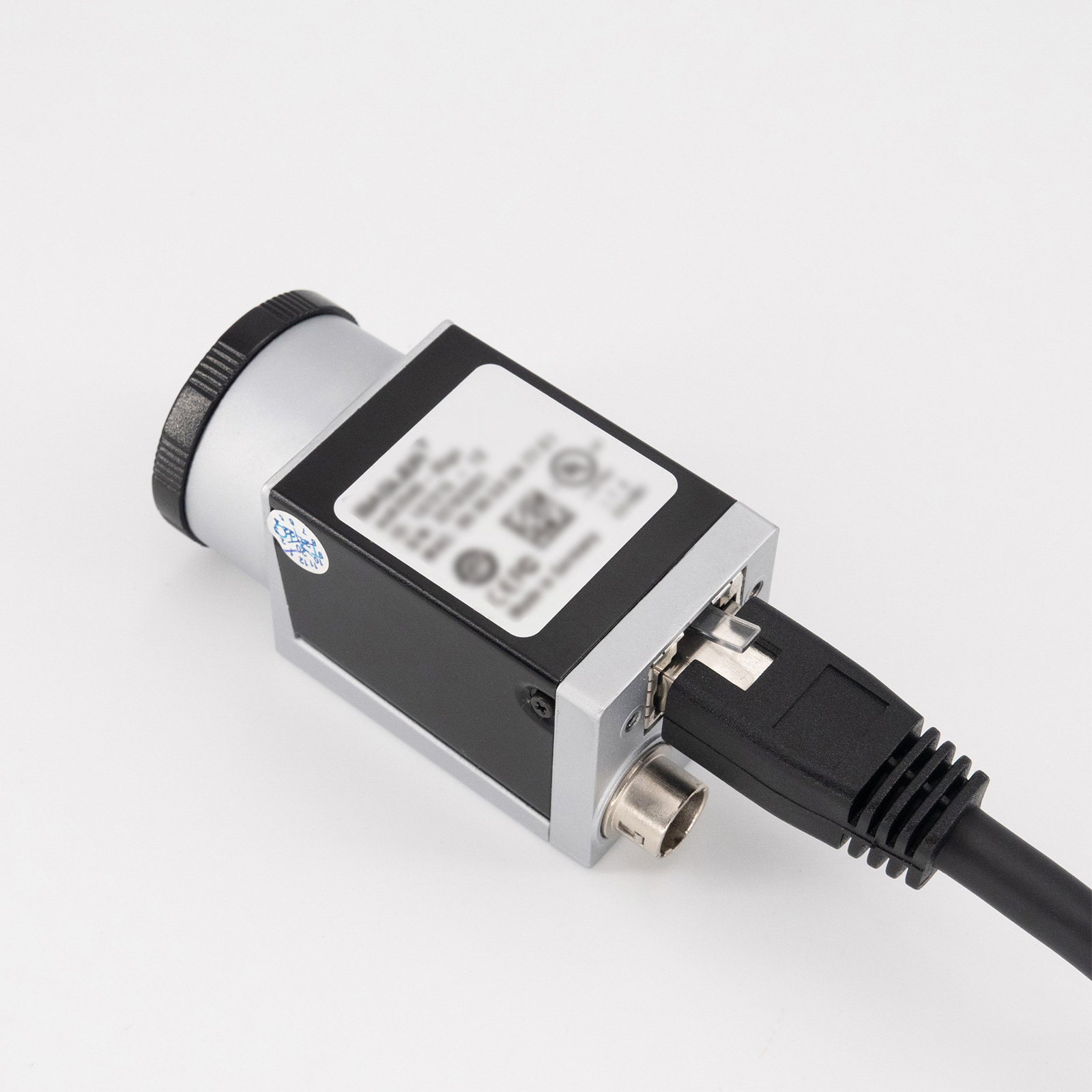

• For industrial machinery, Basler Sony Cognex CCD cameras, Matrix Vision Camera, Triton camera models, Networks, Ethernet, Power.
Application: Industrial Machine / EtherCAT and EtherNet/IP / Factory Automation
Delivery Time: 4-10 working days
Payment Terms: online or T/T
| Connector Specification |
 |
| Bill Of Materials | Wiring Diagram | |||
| Item | Description | QTY | Specification |  |
| ① | Wire | 1 | GIGE CABLE CAT5E BLACK LF 4PX26AWG | |
| ② | RJ45 Connector | 2 | 8P8C | |
| ③ | Screw Rod | 2 | M2.0*0.4 4.75 | |
| ④ | Inner Mold | 1 | PE(J5019) | |
| ⑤ | Outer Mold | 1 | DWHC-10035(Black) | |
| Drawing | Pair Twist Insulator Colour | ||
 |
Pair Twist | Insulator Colour 1 | Insulator Colour 2 |
|---|---|---|---|
| 1 | Blue | Blue / White | |
| 2 | Orange | Orange / White | |
| 3 | Green | Green / White | |
| 4 | Brown | Brown / White | |
| Blue / White: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others. | |||
| Model NO. | OLA-GIGE-1-1-1-XM CABLE | Printing | Ethernet, 4PX26AWG, 80°C, 30V, VW-1, LF | ||
| Style | GIGE Ethernet/T/20276-SB BLACK LF 4PX26AWG | Size | 4PX26AWG | ||
| Approbation | UL20276 AWM 80°C 30V | Flame Retardant Grade | VW-1 | ||
| Conductor |
Size | 26AWG/4P | Shielded |
Al/Pet | 0.05*20mm |
| Cond. Material | Bare Copper BC | Braid | 24/8/0.1TC | ||
| Construction | 30/0.08 BC | Covered | 99% Min | ||
| Diameter | 0.51mm | Jacketed |
Material | PVC | |
| Tolern | ±0.003mm | Avg.Thick. | 0.765mm | ||
| Insulation | Material | HDPE | Min.Thick. | 0.723mm | |
| Avg.Thick. | 0.207mm | Diameter | ø6.5±0.2mm | ||
| Min.Thick. | 0.184mm | Colour | Black (Similar to RAL 9005) | ||
| Diameter | 0.95±0.05mm | Electrical Properties |
Conductor Resistance | ≤124 Ω/km 20°C | |
| Colour | (Bule*Bule/White) | Test Voltage | 500V/1min | ||
| (Orange*Orange/White) | Insulating Resistance | > 10 MΩ/km 20°C | |||
| (Green*Green/White) | Characteristic Impedance | 100±15Ω | |||
| (Brown*Brown/White) | Wokring Tempearture | Fixed Installation | -20°C ~ 80°C | ||
| Pair Twist |
Pair Twist | 1P*26AWG | Moved Installation | -5°C ~ 50°C | |
| Diameter | 1.94mm | Minimal Bending Radius |
Fixed Installation | 5 X Cable-ø | |
| Assembly Standed | 26AWG/4P | Moved Installation | 8.5 X Cable-ø | ||
| Quality Certifications |     |
||||
