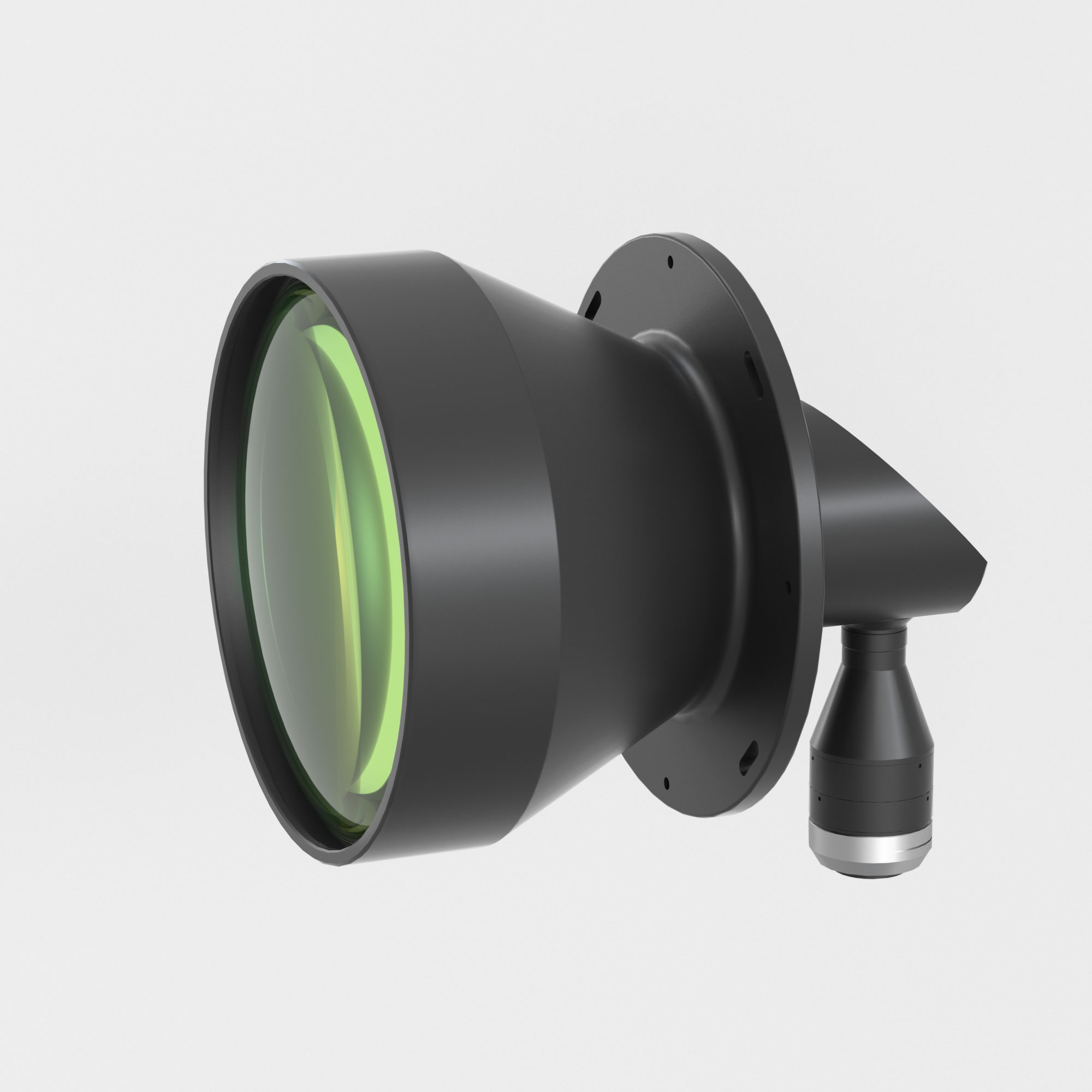

COOLENS® | M42/M58-Mount Bi-Telecentric Lenses | DTCM210
$10,320.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM210-258-T90-M40-AL | Magnification(x) | 0.128 | ||||
| Object Field of View (Φmm) | 258 | Working Distance (mm) | 338±5 | ||||
| Max Sensor Size (Φmm) | 33(2") | Best Aperture (F/#) | 7.8 | ||||
| Telecentricity typical (max) (deg) | <0.1 | Distortion typical (max) (%) | <0.1 | ||||
| MTF30 (lp/mm) | >110 | Depth of Field (mm) | ±39.1@F16 | ||||
| Length of I/O (mm) | 867±5 | Mount | M42/M58 | ||||
| Length (mm) | 355.2 | Weight (kg) | - | ||||
| Field of View (mm × mm) | 2" DALSA 12M (24.58x18.43) | 192.0x144.0 | |||||
| 2" PYTHON 25K (23.04x23.04) | 180.0x180.0 | ||||||
| Compatible Lighting | Telecentric LED Lighting | LP270-90 | |||||
