These cables can be used in demanding applications.They are ensure network throughput in harsh industrial environments.

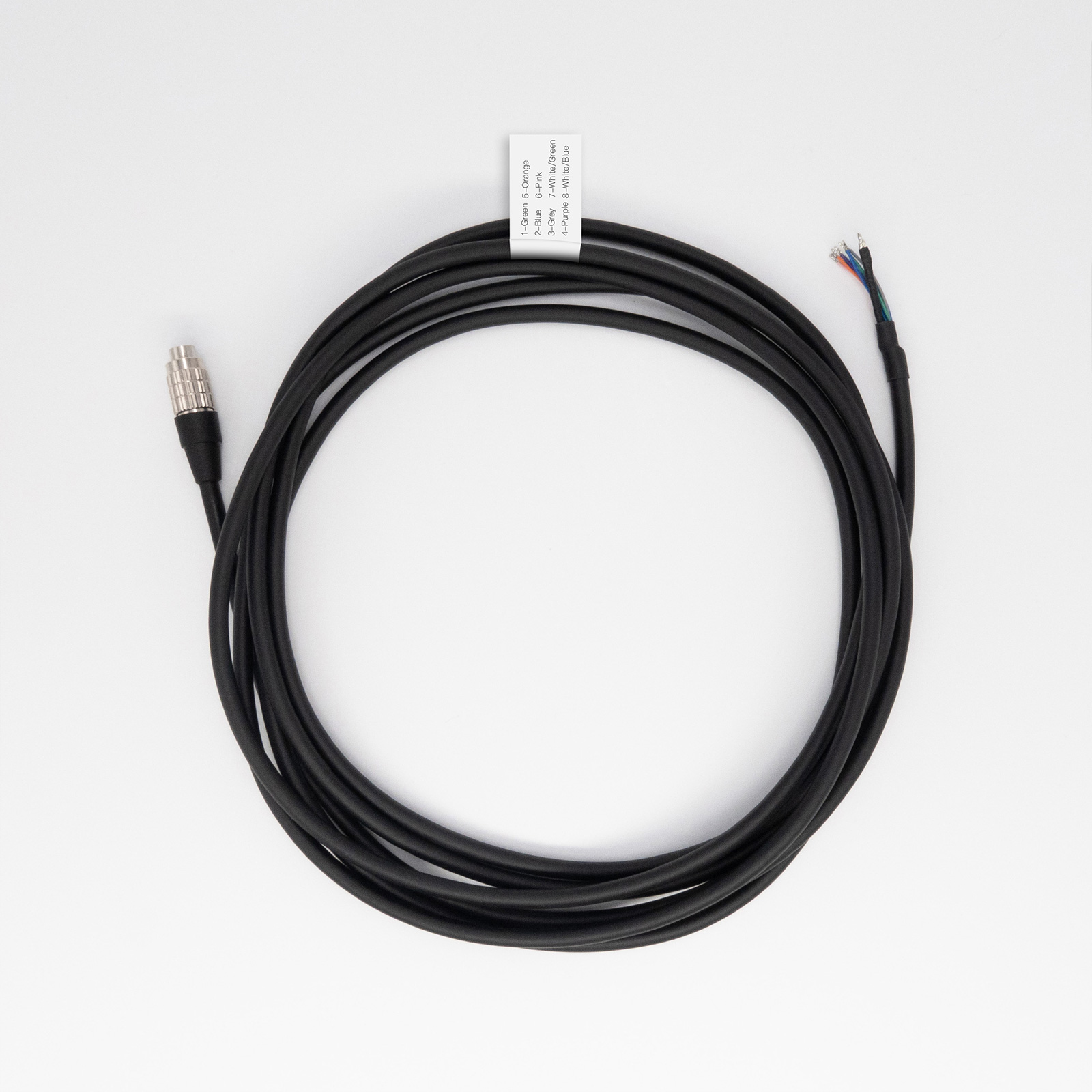

• This is an extension cable for industrial camera power supply I/O trigger and data transmit.

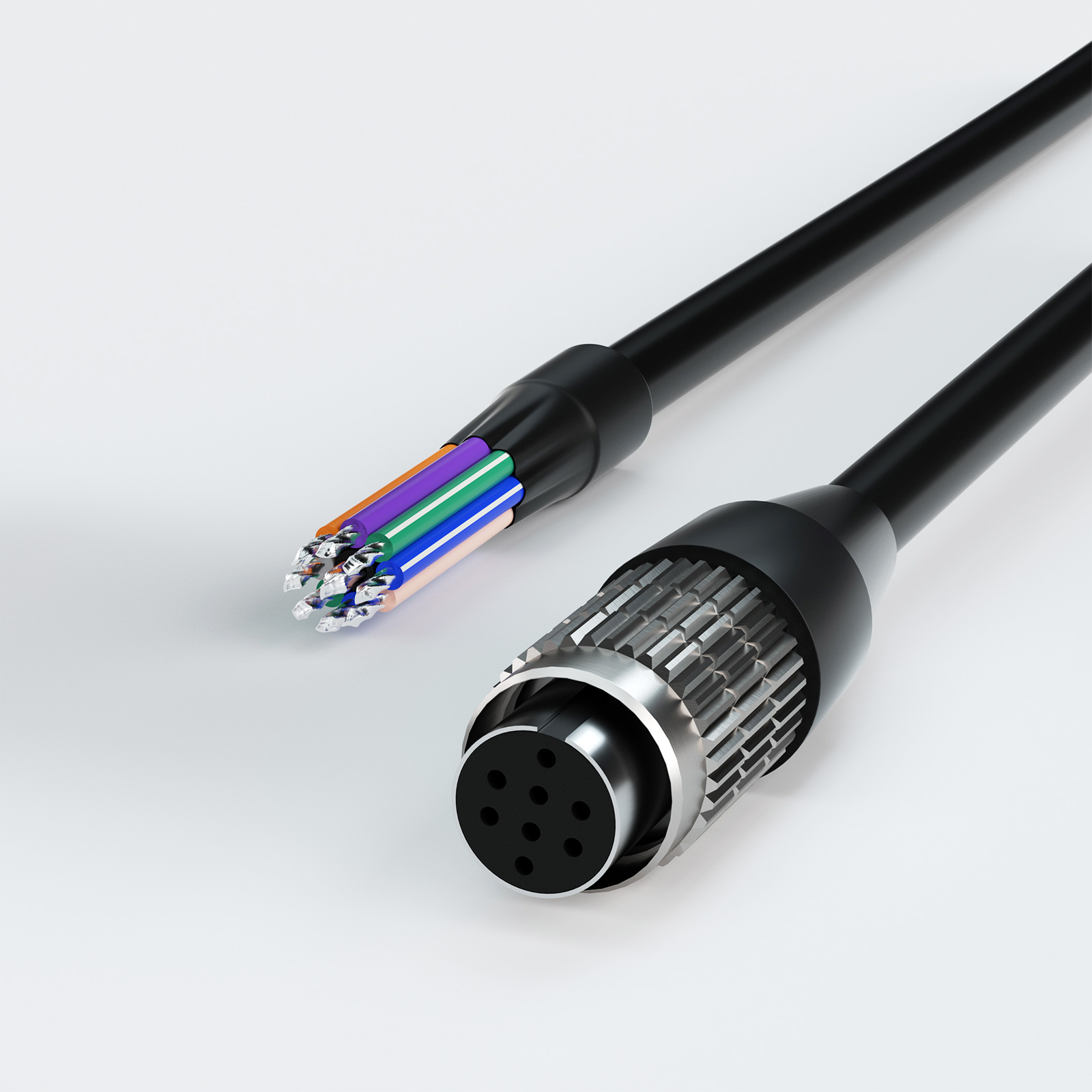

• Hirose 8 pin female connector to open end, make DIY connections according to your needs.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.
• High flexible, drag chain.

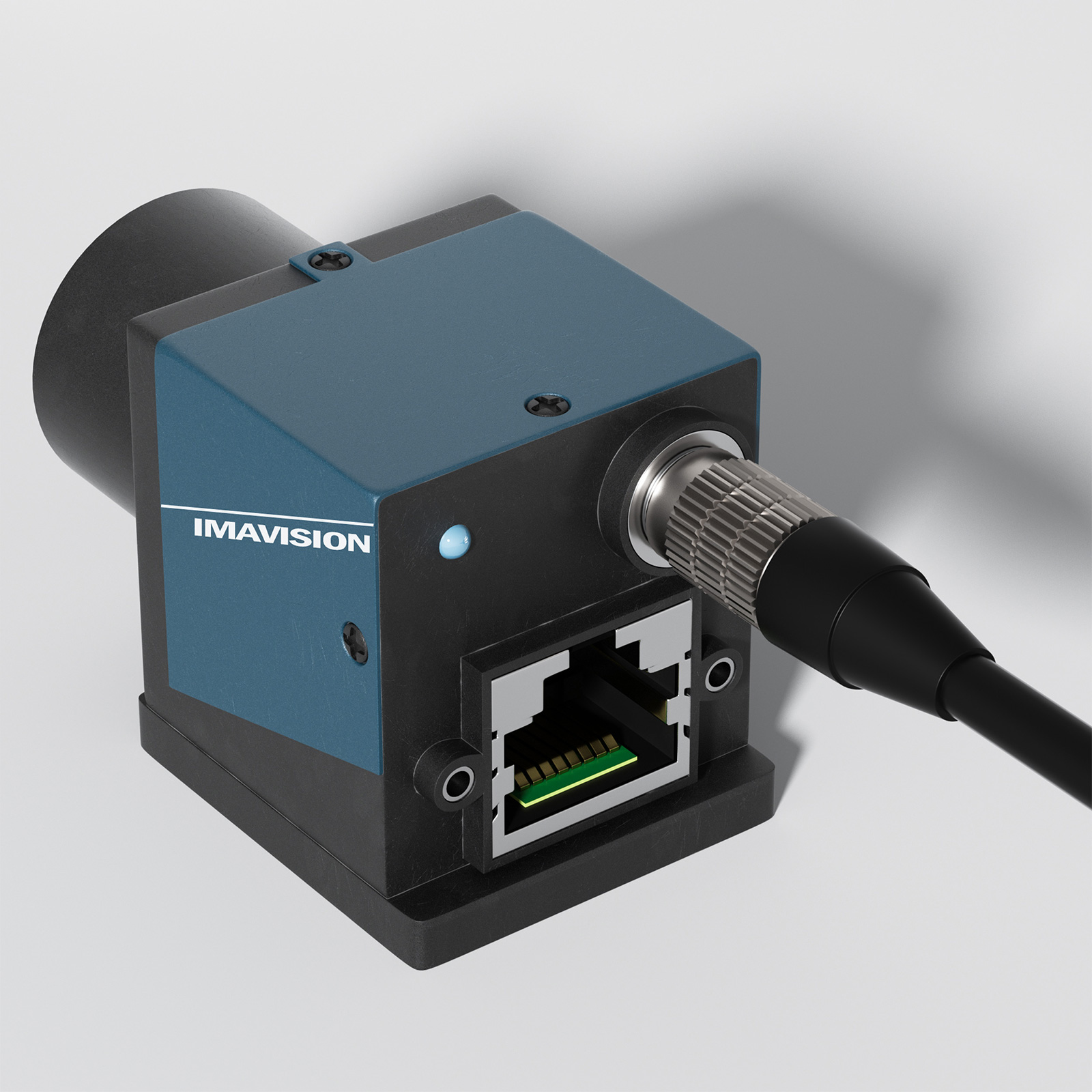

• Basler racer GigE and runner cameras, Sony industrial CCD camera, Allied Vision cameras and more industrial Machine Vision cameras with Hirose 8 pin Male Connector.
Application: Power drag chains environments
Delivery Time: 4-10 working days
Payment Terms: Online or T/T
| Connector Specification |
 |
| Bill Of Materials | Wiring Diagram | Location of Pins | |||||
| Item | Description | QTY | Specification |  |
PIC | Pin | Clour |
 |

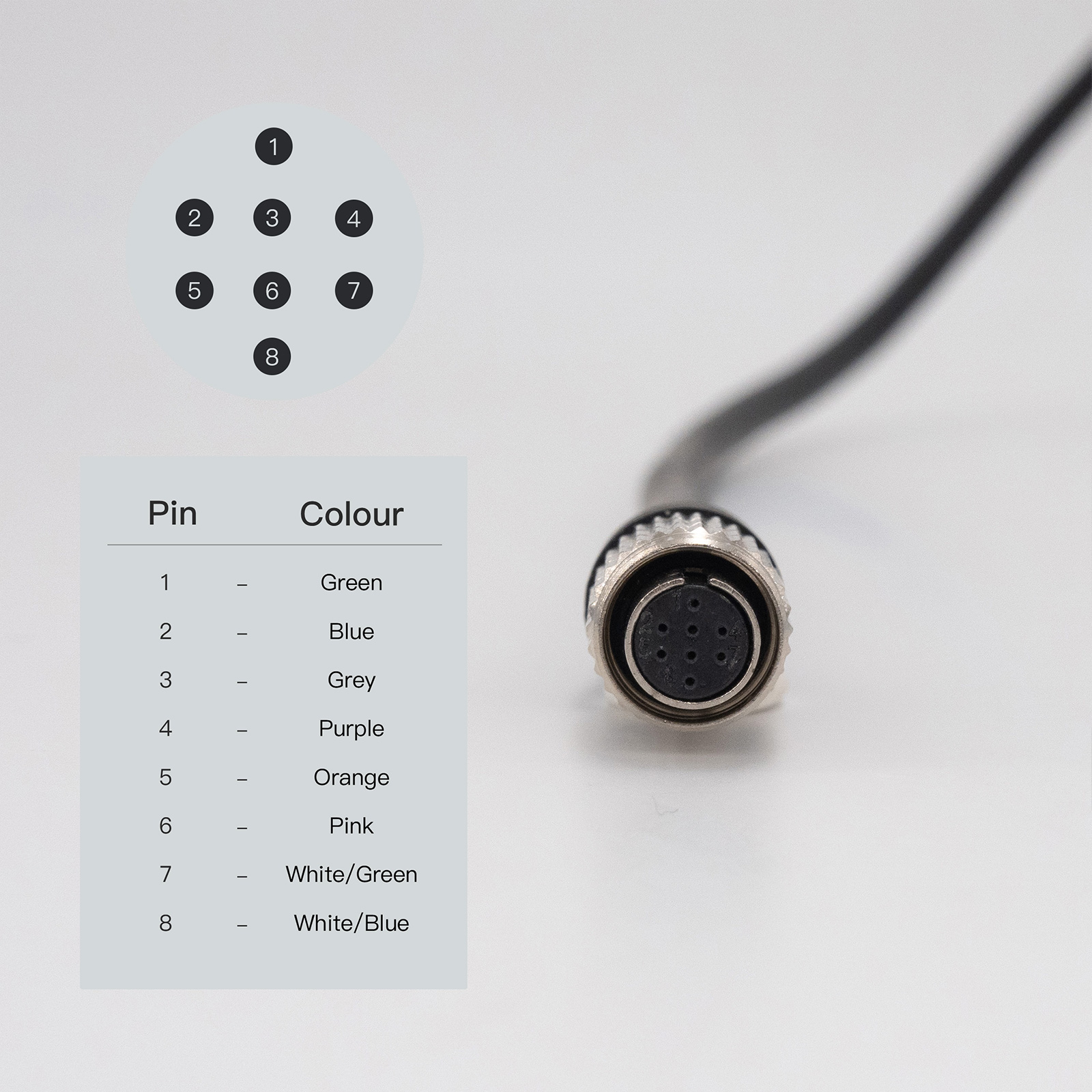

1 | Green | |||||
| ① | Wire | 1 | 6Px26AWG RoHS LF BLACK | 2 | Blue | ||
| ② | Connector | 1 | HR25-7TP-8S | 3 | Grey | ||
| ③ | Shrinkable Tube | 1 | ø6.0 | 4 | Purple | ||
| ④ | Shrinkable Tube | 1 | ø2.0 | 5 | Orange | ||
| 6 | Pink | ||||||
| ⑤ | Label | 1 | Wiring Diagram | 7 | White/Green | ||
| 8 | White/Blue | ||||||
| Drawing | Pair Twist Insulator Colour | |
 |
Pair Twist | Insulator Colour |
| 1 | Green | |
| 2 | Blue | |
| 3 | Grey | |
| 4 | Purple | |
| 5 | Orange | |
| 6 | Pink | |
| 7 | White/Green | |
| 8 | White/Blue | |
| * White / Blue: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others. | ||
| Model NO. | OLA-ANA-1-X-3M CABLE | ||||
| Style | 8CX28AWG RoHS LF BLACK | Size | 8X28AWG | ||
| Approbation | NOUL | Flame Retardant Grade | VW-1 | ||

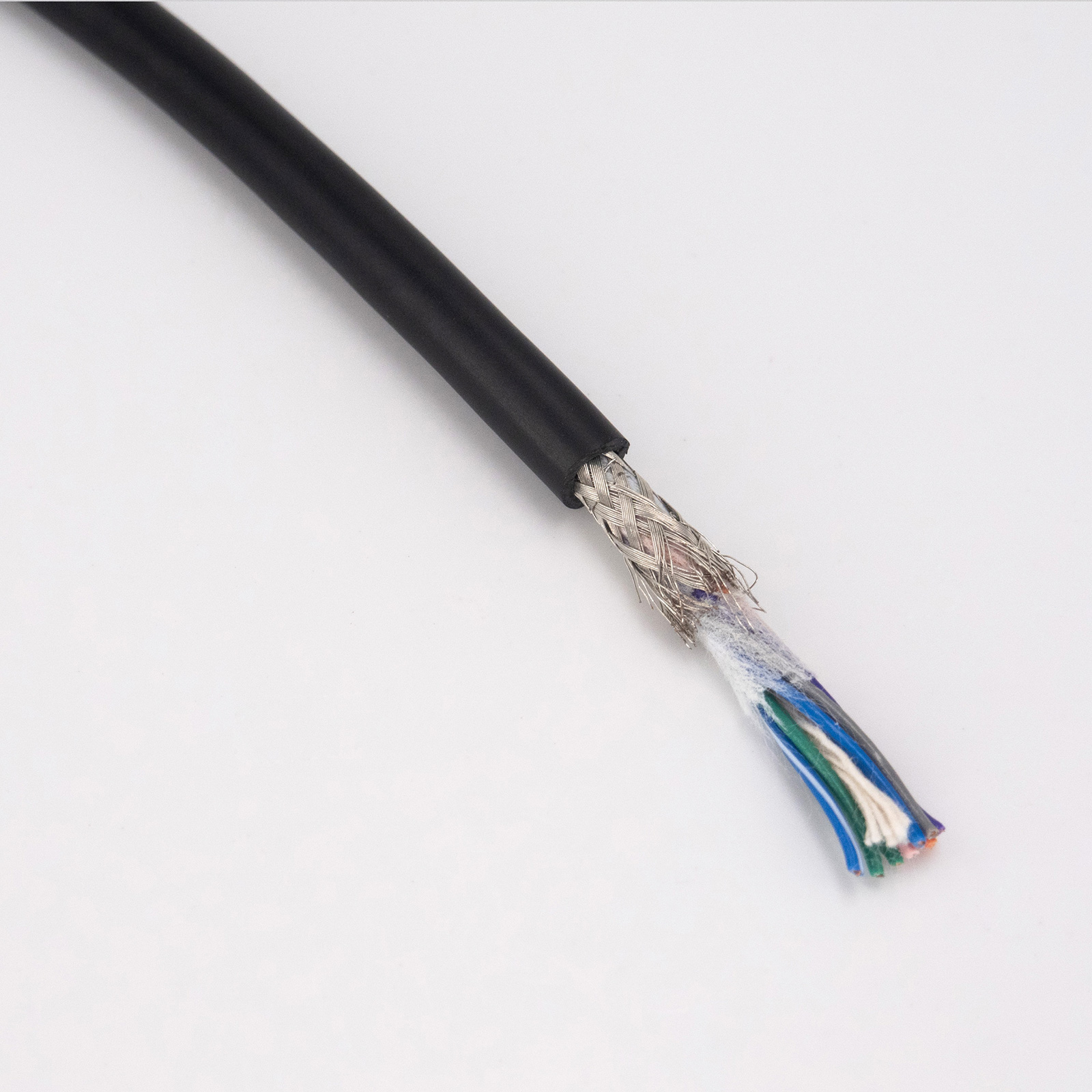

| Conductor | Size | 28AWG/8C | Shielded | Foil | 0.05*20mm |
| Cond. Material | Bare Copper BC | Braid | 16/7/0.1TC | ||
| Construction | 41/0.08 BC | 30/0.08 BC | ACovered | ||
| Diameter | 0.4mm | Jacketed |
Material | PVC | |
| Tolern | ±0.003mm | Diameter | ø5.0±0.3mm | ||
| Insulation | Material | PVC | Colour | Black (Similar to RAL 9005) | |
| Diameter | 0.8±0.05mm | Wokring Tempearture | Fixed Installation | -20°C ~ 80°C | |
| Colour | Green, Blue, | Moved Installation | -10°C ~ 50°C | ||
| Grey, Purple, | Minimal Bending Radius | Fixed Installation | 4 X Cable-ø | ||
| Orange, Pink, | Moved Installation | 8 X Cable-ø | |||
| White/Green, White/Blue | Electrical Properties | Fixed Installation | ≤87.6 Ω/km 20°C | ||
| Assembly Standed | 8CX28AWG | Test Voltage | 500V/1min | ||
