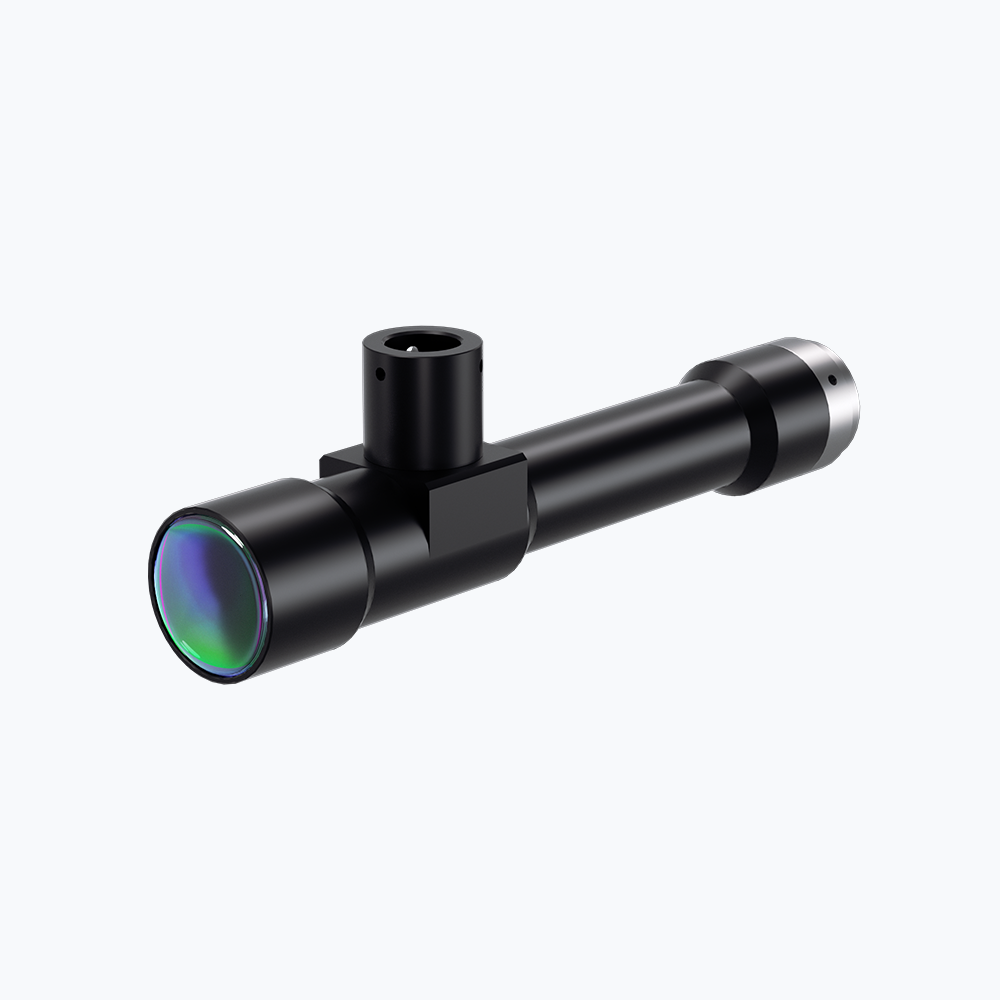

| Model NO. | WWK60-108C-111V3 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 6.000 | Working Distance(mm) | 108±2 | ||||
| NA | 0.1000 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 29.7 | ||||
| MTF30 (lp/mm) | >29 | Object Resolution(μm) | 3.4 | ||||
| Depth of Field(mm) | ±0.035@F29.7 | Distortion Typical(% max) | <0.04 | ||||
| Telecentricity Typical (°max) | <0.03 | Length (mm) | 175.5 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.1 | ||||
| Filter Screw Size | M30x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1" IMX183 (13.13x8.76) | 2.2x1.5 | ||||||
| 1" IMX183 (13.13x8.76) | 2.4x1.7 | ||||||
