These cables can be used in demanding applications.
They are ensure network throughput in harsh industrial environments.

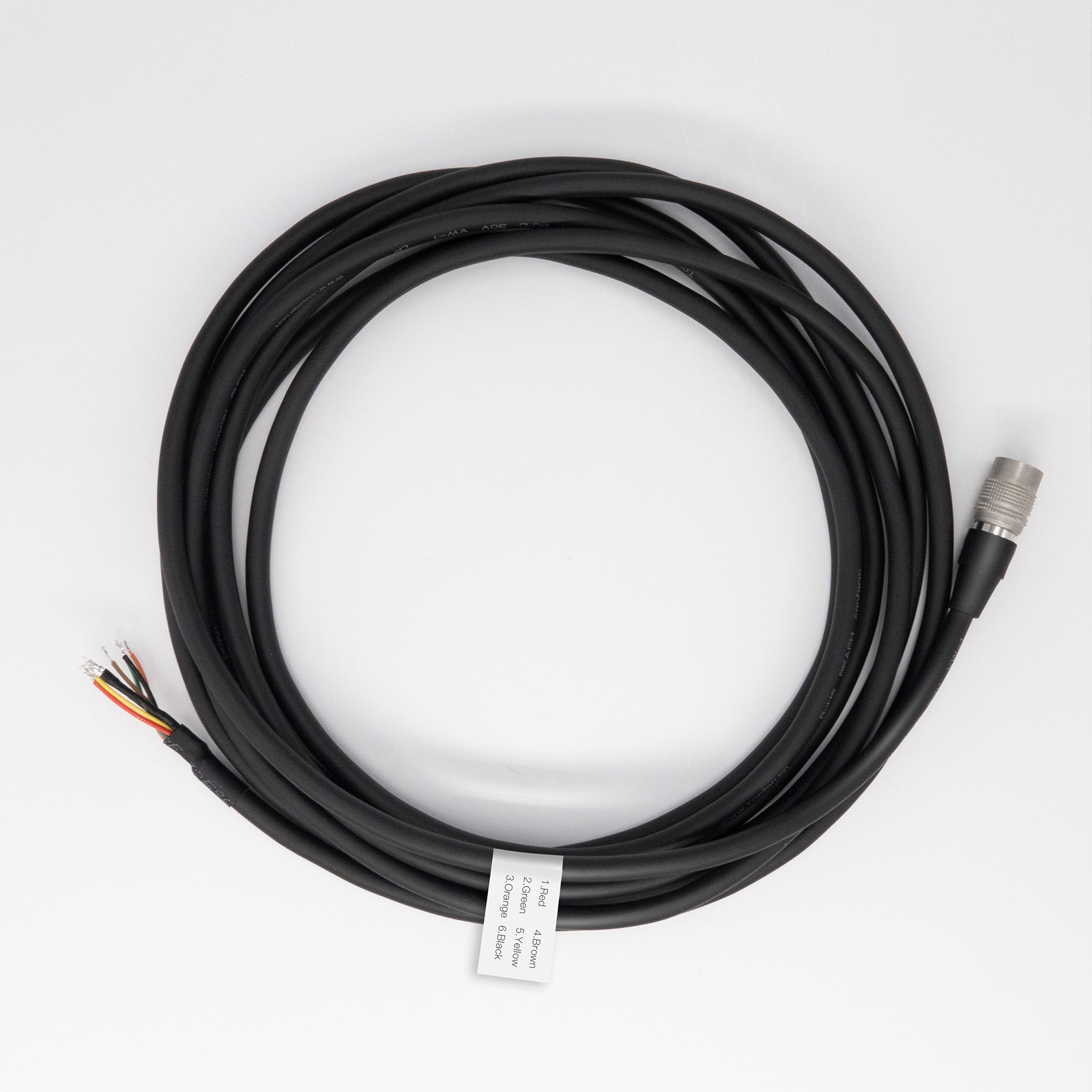

• This is an extension cable for industrial camera power supply I/O trigger and data transmit.

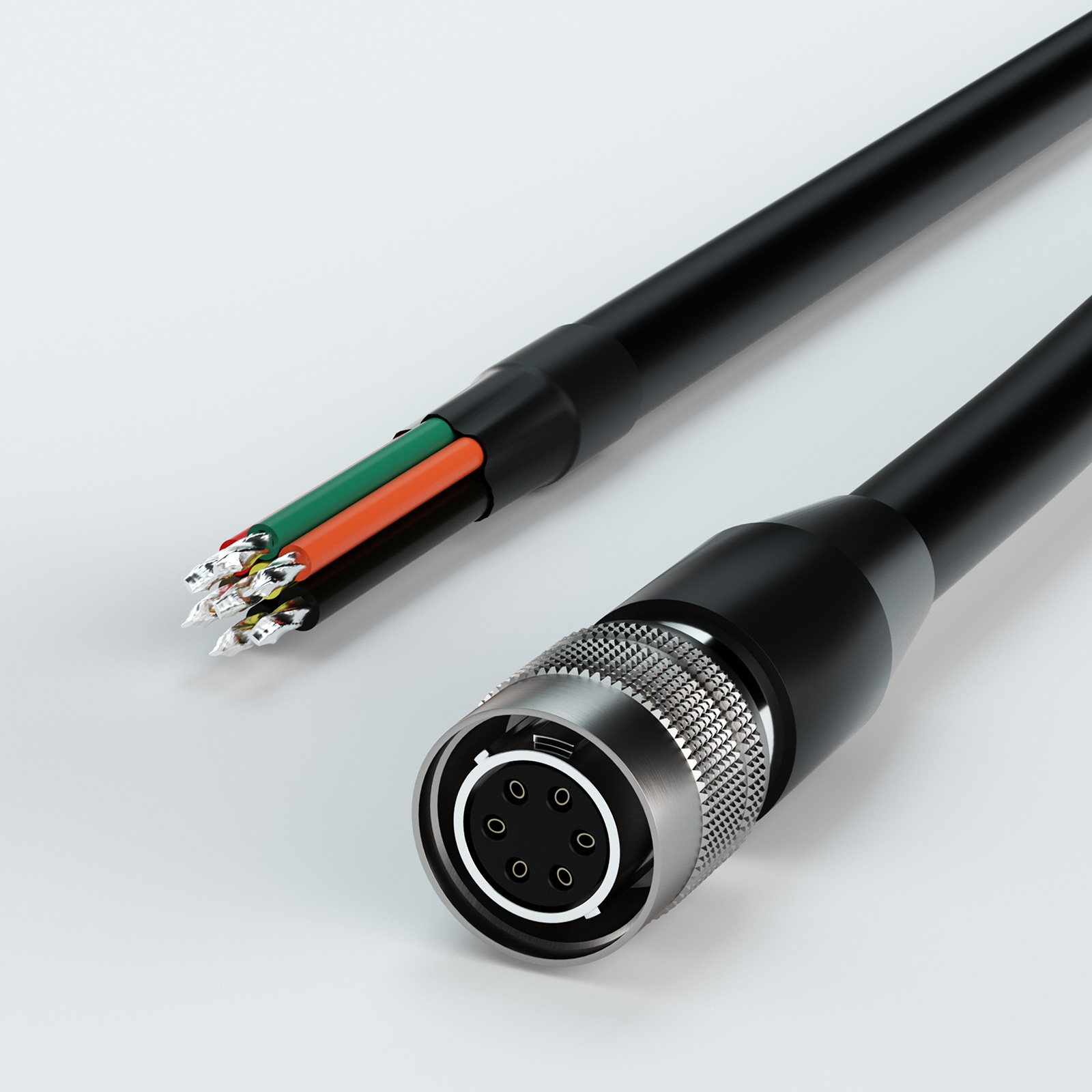

• Hirose 6 pin female connector to open end, make DIY connections according to your needs.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.
• High flexible, drag chain.

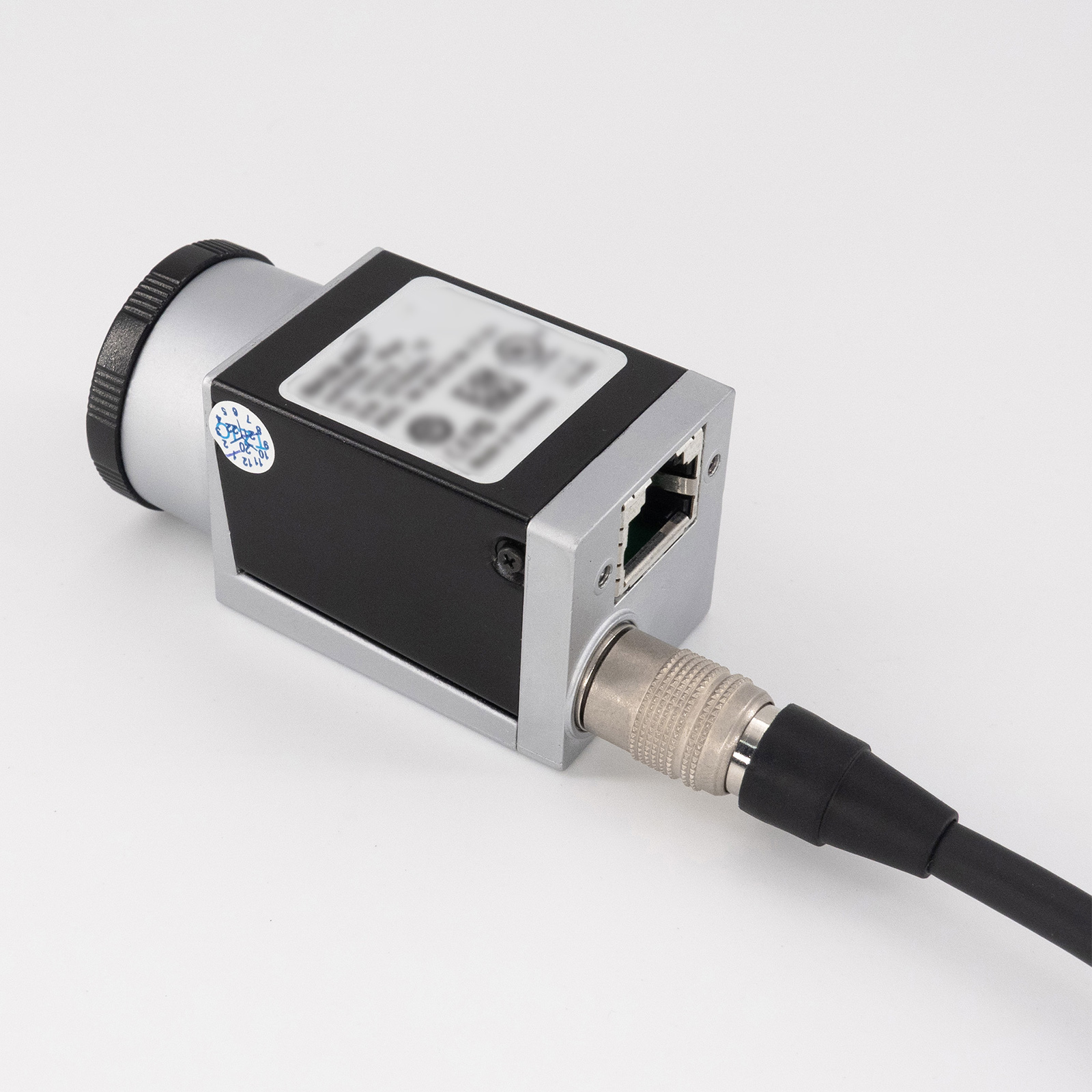

• Basler racer GigE and runner cameras, Sony industrial CCD camera, Allied Vision cameras and more industrial Machine Vision cameras with Hirose 6 pin Male Connector.
Application: Power drag chains environments
Delivery Time: 4-10 working days
Payment Terms: Online or T/T
| Connector Specification |
 |

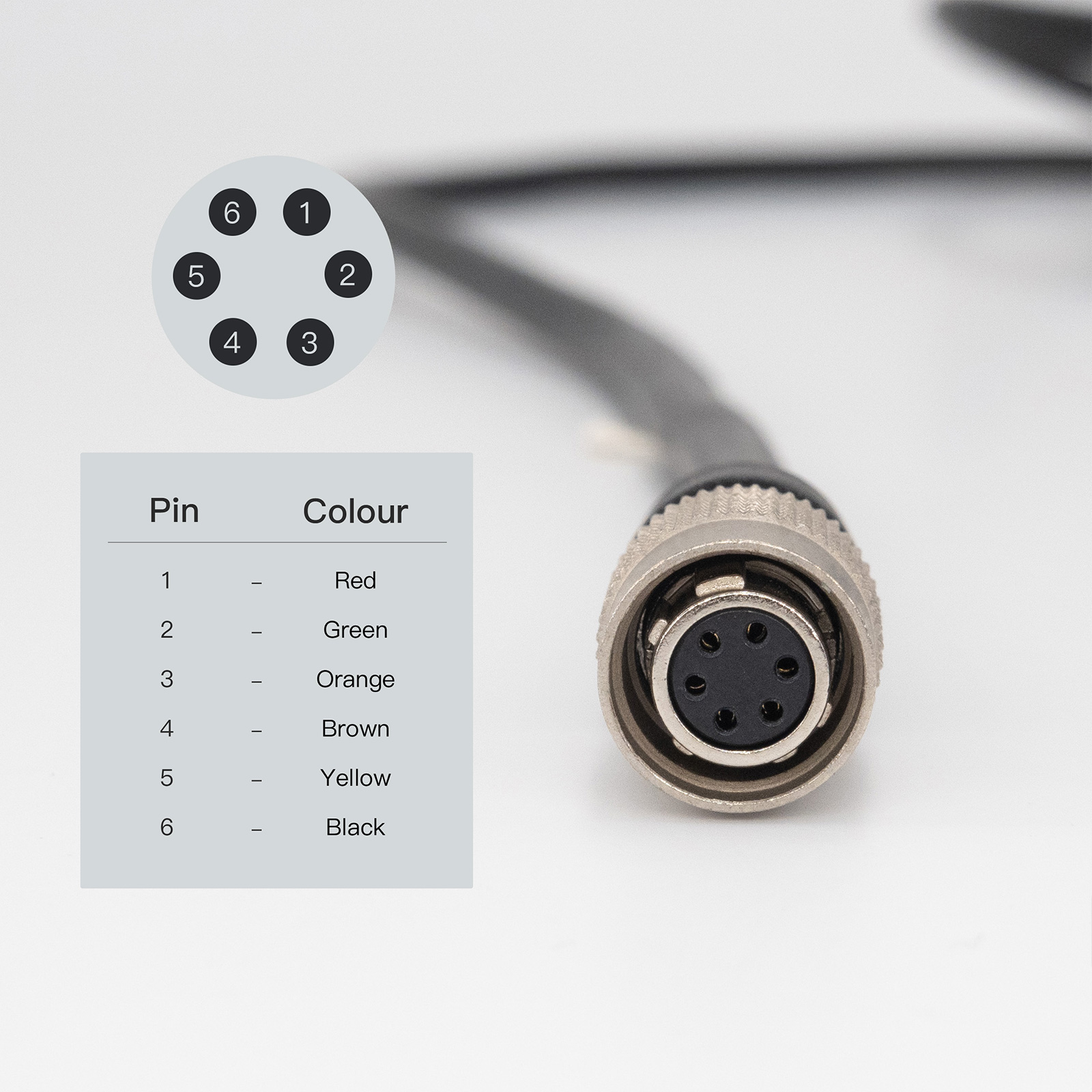

| Bill Of Materials | Wiring Diagram | Location of Pins | |||||
| Item | Description | QTY | Specification |  |
PIC | Pin | Clour |
| ① | Wire | 1 | 2X24AWG+4X26AWG RoHS LF BLACK |
 |
1 |
Red |
|
| ② | Connector | 1 | HR-10A-7P-6S | 2 |
Green |
||
| ③ | Shrinkable Tube | 1 | ø6.0 | ||||
| ④ | Shrinkable Tube | 1 | ø2.0 | 3 | Orange | ||
| ⑤ | Label | 1 | Wiring Diagram | 4 | Brown | ||
| ⑥ | Inner Mold | 1 | OFM019 | 5 | Yellow | ||
| ⑦ | Outer Mold | 1 | OFM020 | 6 | Black | ||
| ⑧ | Label | 1 | BLACK DWHC-10035 86A | ||||
| Drawing | Pair Twist Insulator Colour | |
 |

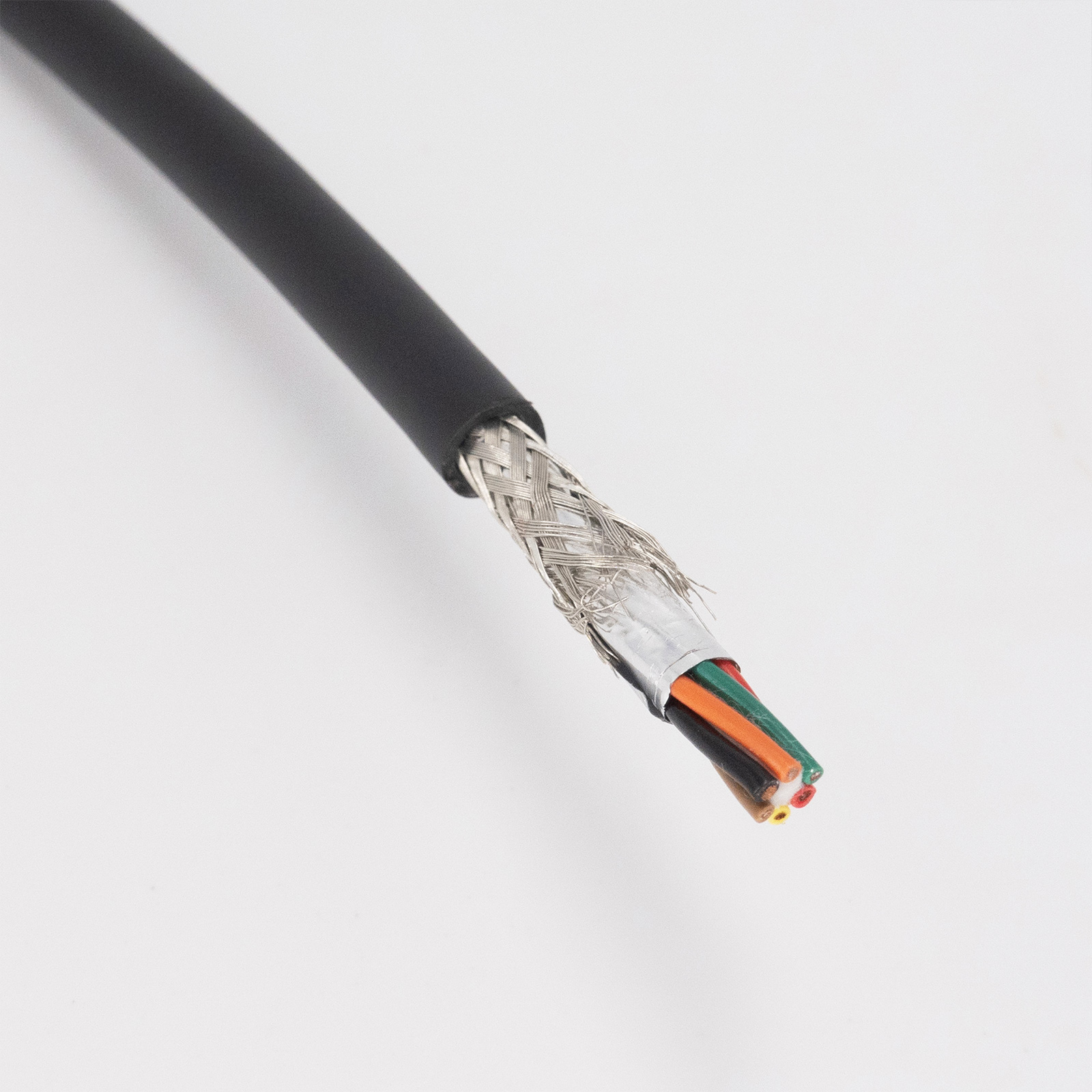

Pair Twist | Insulator Colour |
| 1 | Red | |
| 2 | Green | |
| 3 | Orange | |
| 4 | Brown | |
| 5 | Yellow | |
| 6 | Black | |
| Model NO. | OLA-ANA-2-X-XM CABLE | Printing | 2X24AWG+4X26AWG | |||
| Style | 2X24AWG+4X26AWG RoHS LF BLACK | Size | 2X24AWG+4X26AWG | |||
| Approbation | UL20276 | Flame Retardant Grade | VW-1 | |||
| Conductor | Size | 24AWG | 26AWG | Shielded | Al/Pet | 0.05*10mm |
| Cond. Material | Bare Copper BC | Bare Copper BC | Braid | 16/7/0.1TC | ||
| Construction | 41/0.08 BC | 30/0.08 BC | ACovered | 85% Min | ||
| Diameter | 0.59mm | 0.51mm | Jacketed | Material | PVC | |
| Tolern | ±0.003mm | ±0.003mm | Diameter | ø5.0±0.3mm | ||
| Insulation | Material | PVC | PVC | Colour | Black (Similar to RAL 9005) | |
| Diameter | 1.09±0.05mm | 0.95±0.05mm | Wokring Tempearture | Fixed Installation | -20°C ~ 80°C | |
| Colour | Red | Yellow, Brown, | Moved Installation | -10°C ~ 50°C | ||
| Black | Orange,Green | Minimal Bending Radius | Minimal Bending Radius | 4 X Cable-ø | ||
| Electrical Properties |
Conductor Resistance | ≤87.6 Ω/km 20°C | ≤124 Ω/km 20°C | Moved Installation | 8 X Cable-ø | |
| Test Voltage | 500V/1min | 500V/1min | Printing | Movecable FT1 80°C 30V VW-1 LF RoHS REACH conform | ||
| Sparking Voltage | 1500V | 1500V | ||||
| Quality Certifications |    |
|||||
