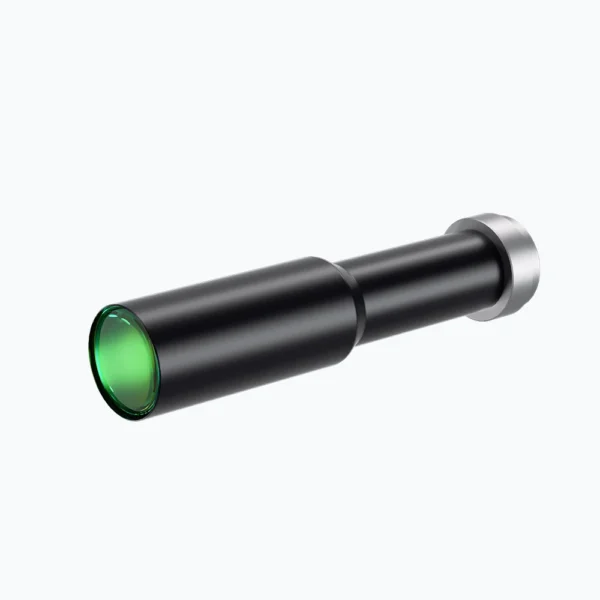

4X 2/3″ Telecentric Lenses | WWH 63 COOLENS®
$399.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWH40-63ATV3 | Magnification(x) | 4.0 | ||||
| Working Distance(mm) | 63±1 | Max Sensor Size(φmm) | 11.0(2/3") | ||||
| Aperture(F/#) | 15.8 | Telecentricity Typical(max)(deg) | 0.03 | ||||
| Distortion Typical(max)(%) | 0.01 | NA | 0.13 | ||||
| Resolution(μm) | 2.7 | Depth of Field | 0.1 | ||||
| Mount | C | Length (mm) | 124.4 | ||||
| Coaxial Illumination Port Option | NO | Iris Adjustable | No | ||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 1.6x1.2 | ||||||
| 1/1.8”（7.13x5.37） | 1.78x1.34 | ||||||
| 2/3”（8.45x7.1） | 2.2x1.65 | ||||||
Dimensions
