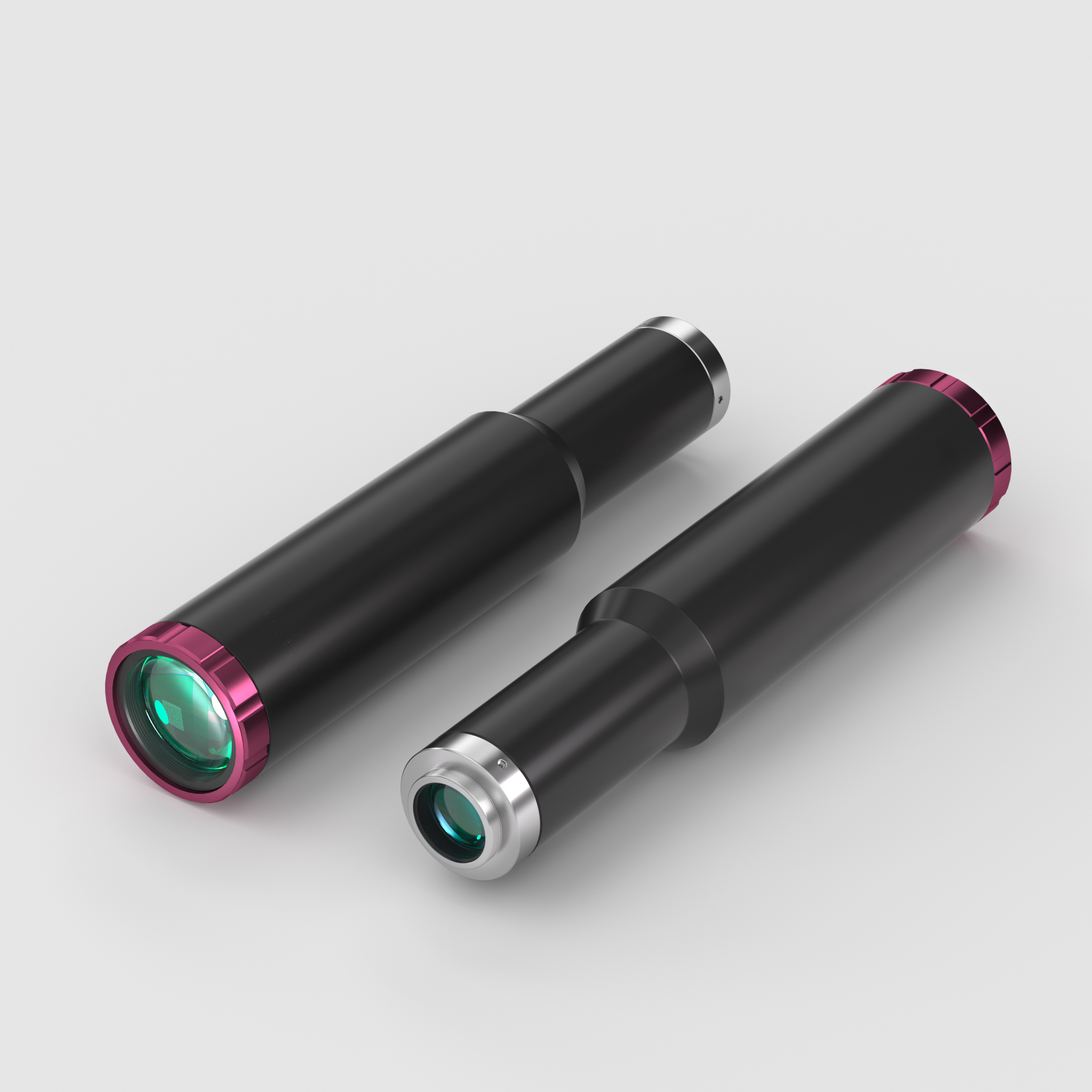

| Model NO. | DTCA121-5 | Image Circle Diameter (Φmm) | 20(1.2") | ||||
| Magnification(x) | 4 | Working Distance(mm) | 45 | ||||
| NA | 0.17 | Type | Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 5 | ||||
| Best Aperture(f/#) | 11.7 | MTF30 (lp/mm) | >73 | ||||
| Object Resolution(μm) | 2 | Depth of Field(mm) | ±0.03@F11.7 | ||||
| Distortion Typical(% max) | <0.08 | Telecentricity Typical (°max) | <0.1 | ||||
| Length of I/O(mm) | 243 | Length (mm) | 180.5 | ||||
| Weight(kg) | 0.331 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.05 | ||||
| Filter Screw Size | M28x0.5 | ||||||
| Field of View (mm × mm) |
1.2" IMX530/540 (14.6x12.6) | 3.65x3.15 | |||||
