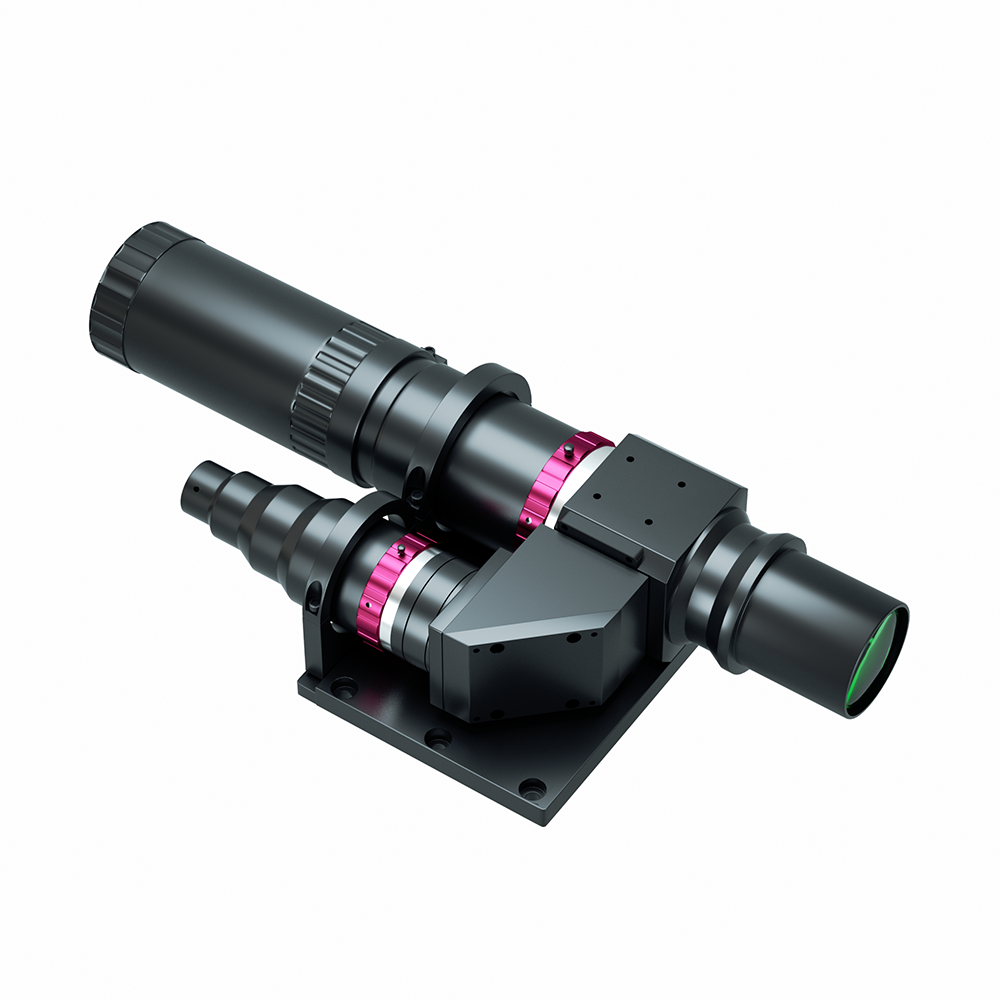

35mm Full 4X Bi-Telecentric Lenses | DTCA35F-11C-G-M58-ALV3 COOLENS®
$0.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA35F-11C-G-M58-ALV3 | Image Circle Diameter (Φmm) | 44(35mm Full) | ||||
| Magnification(x) | 4 | Working Distance(mm) | 60 | ||||
| NA | 0.18-0.0624 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 11 | ||||
| Best Aperture(f/#) | 11-32 | MTF30 (lp/mm) | 90-32 | ||||
| Object Resolution(μm) | 1.86-5.37 | Depth of Field(mm) | 0.06-0.16 | ||||
| Distortion Typical(% max) | 0.02 | Telecentricity Typical (°max) | 0.02 | ||||
| Length of I/O(mm) | 425 | Length (mm) | 365.4 | ||||
| Weight(kg) | 3.55 | Iris Adjustable | Yes | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm × mm) |
CMV50000 (36.43x27.62) | 9.1x6.9 | |||||
| KAI43142 (36.18x24.12) | 9.0x6.0 | ||||||
Dimensions
Naming Rule
