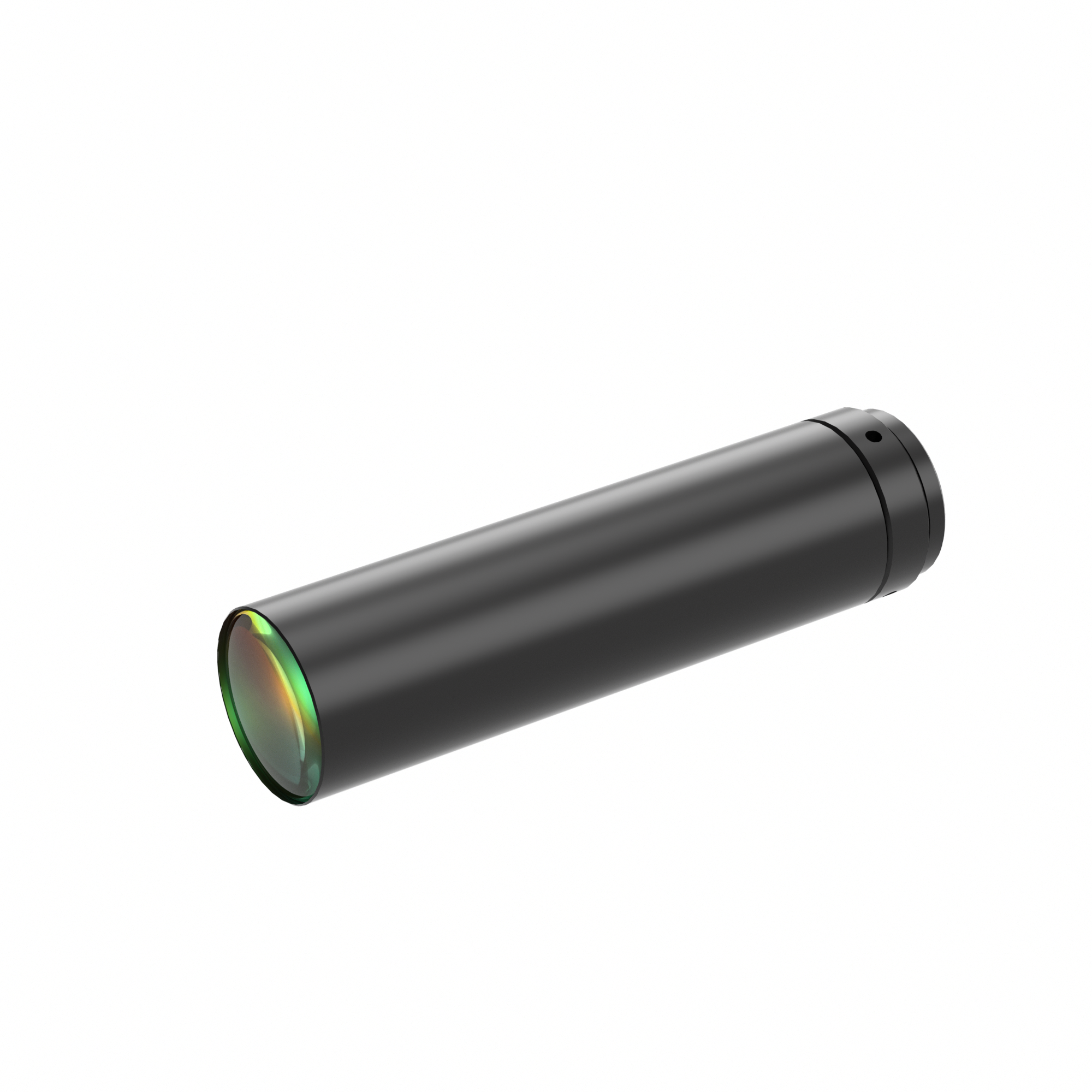

| Model NO. | WH065-360A-430 | Image Circle Diameter (Φmm) | 22.5(4/3") | ||||
| Magnification(x) | 0.65 | Working Distance(mm) | 360 | ||||
| NA | 0.0090 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 36.3 | ||||
| MTF30 (lp/mm) | 24 | Object Resolution(μm) | 37.5 | ||||
| Depth of Field(mm) | 6.9 | Distortion Typical(% max) | 3.7 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 101.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/1.8"(7.13x5.37) | 11.0x8.3 | ||||||
| 2/3"(8.8x6.6) | 13.5x10.2 | ||||||
| 1"(12.43x9.83) | 19.1x15.1 | ||||||
| 4/3"(17.86x14.32) | 27.5x22.0 | ||||||
