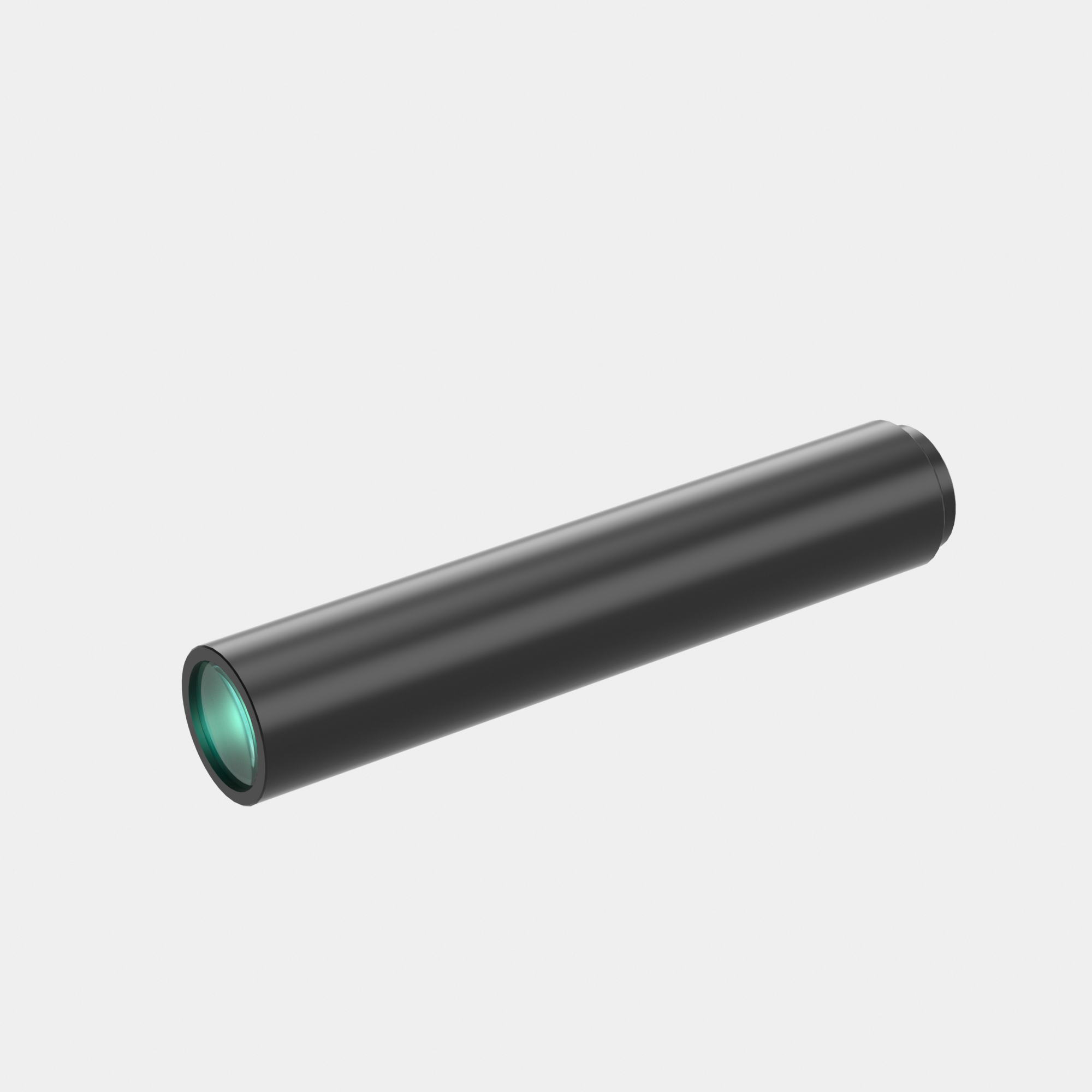

| Model NO. | WH035-330A-430 | Image Circle Diameter (Φmm) | 24(4/3") | ||||
| Magnification(x) | 0.35 | Working Distance(mm) | 330 | ||||
| NA | 0.0114 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 15.4 | ||||
| MTF30 (lp/mm) | 50 | Object Resolution(μm) | 29.5 | ||||
| Depth of Field(mm) | 10.1 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 152.3 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 7.5 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 2/3"(8.8x6.6) | 25.1x18.9 | ||||||
| 1"(12.43x9.83) | 35.5x28.1 | ||||||
| 1.1"(14.19x10.38) | 40.5x29.7 | ||||||
| 4/3"(17.86x14.32) | 51.0x40.9 | ||||||
