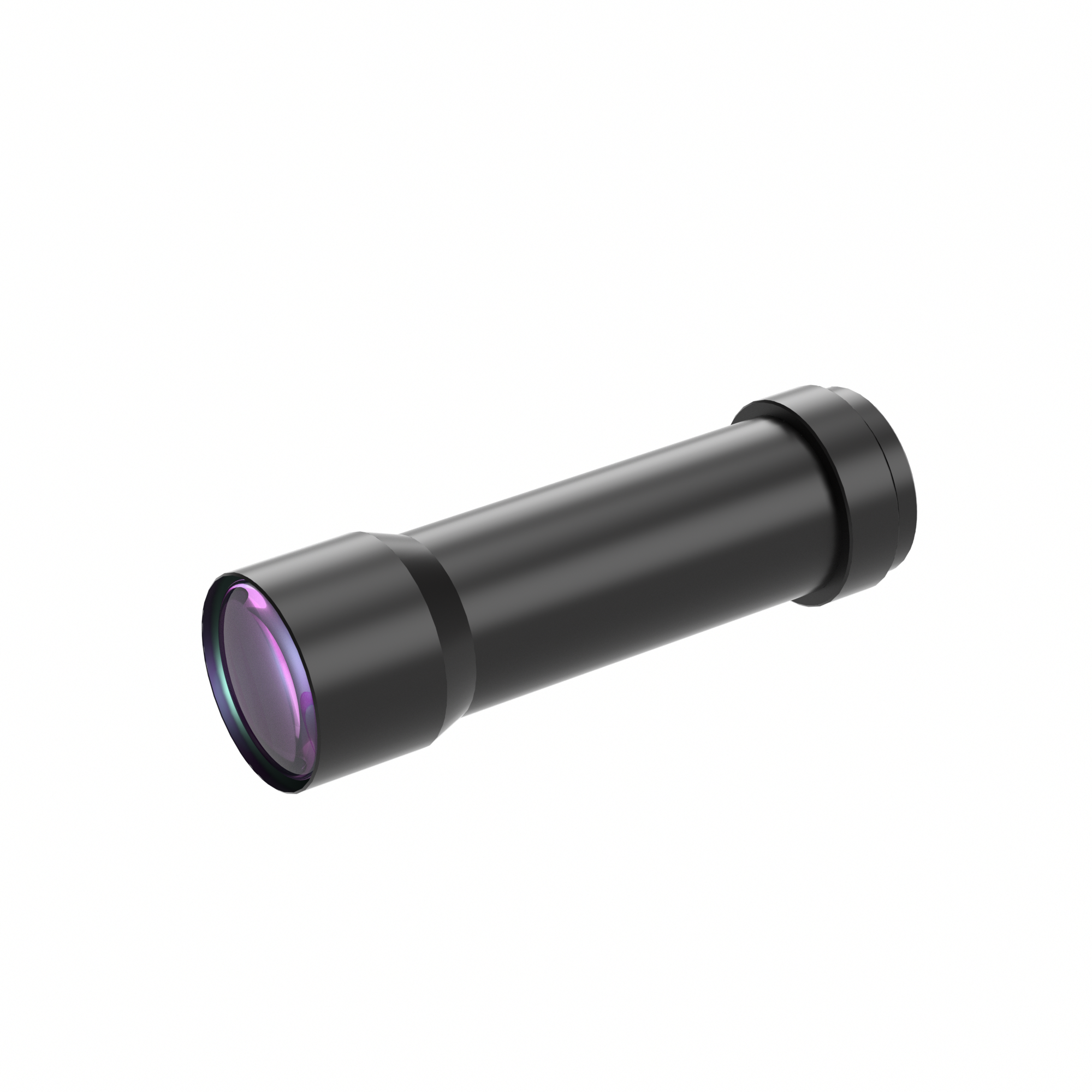

| Model NO. | WH025-330A-430 | Image Circle Diameter (Φmm) | 22.5(4/3") | ||||
| Magnification(x) | 0.25 | Working Distance(mm) | 330 | ||||
| NA | 0.0031 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 41.1 | ||||
| MTF30 (lp/mm) | 24 | Object Resolution(μm) | 108.6 | ||||
| Depth of Field(mm) | 52.6 | Distortion Typical(% max) | 0.5 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 87.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 40 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 2/3"(8.8x6.6) | 35.2x26.4 | ||||||
| 1"(12.43x9.83) | 49.7x39.3 | ||||||
| 4/3"(17.86x14.32) | 71.4x57.3 | ||||||
