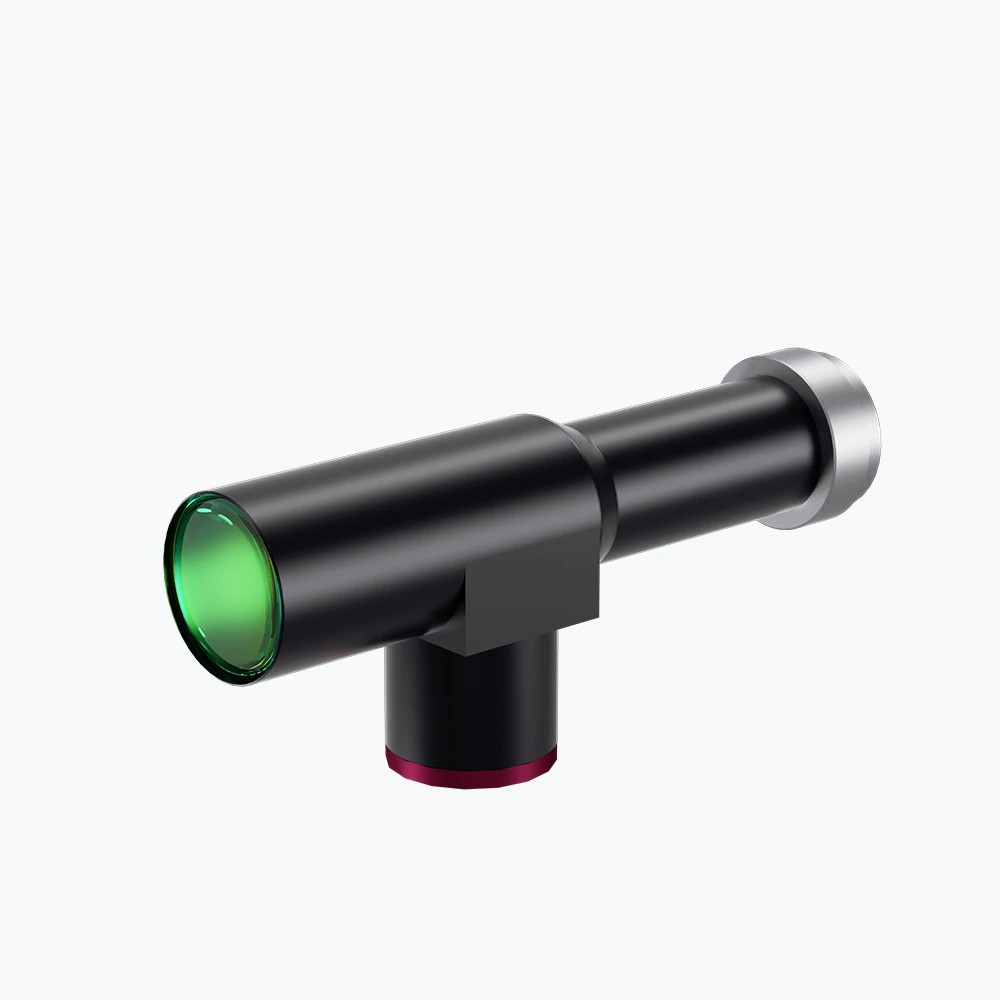

| Model NO. | WWH30-63CTLV3 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 3.000 | Working Distance(mm) | 63±1 | ||||
| NA | 0.125 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 11.9 | ||||
| MTF30 (lp/mm) | 74 | Object Resolution(μm) | 2.7 | ||||
| Depth of Field(mm) | 0.1 | Distortion Typical(% max) | 0.02 | ||||
| Telecentricity Typical (°max) | 0.04 | Length (mm) | 116.4 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.2 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 2.13x1.6 | ||||||
| 1/1.8”（7.13x5.37） | 2.38x1.79 | ||||||
| 2/3”（8.45x7.1） | 2.82x2.37 | ||||||
