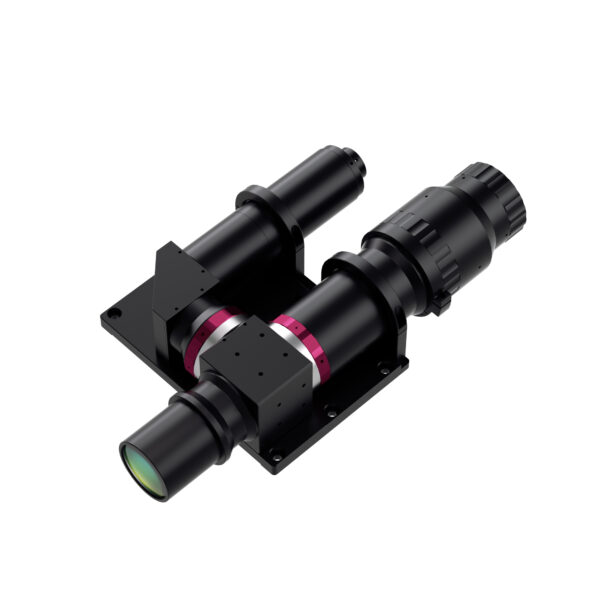

| Model NO. | DTCA35F-14.6C-G-M58-AL | Magnification(x) | 3.0 | ||||
| Object Field of View (Φmm) | 14.6 | Working Distance (mm) | 60 | ||||
| Max Sensor Size (Φmm) | 44(35mm Full) | Best Aperture (F/#) | 32 | ||||
| Telecentricity typical (max) (deg) | 0.17 | Distortion typical (max) (%) | 0.045 | ||||
| MTF30 (lp/mm) | 106-30 | Depth of Field (mm) | 0.08-0.28 | ||||
| Length of I/O (mm) | 431 | Mount | M58 | ||||
| Length (mm) | 359.4 | Weight (kg) | 3.62 | ||||
| Coaxial Illumination Port Option | YES | Iris Adjustable | YES | ||||
| Back Focal Length Adjustable | YES | ||||||
| Field of View (mm × mm) | CMV50000 (36.43x27.62) | 12.1x9.2 | |||||
| KAI43142 (36.18x24.12) | 12.1x8.0 | ||||||
