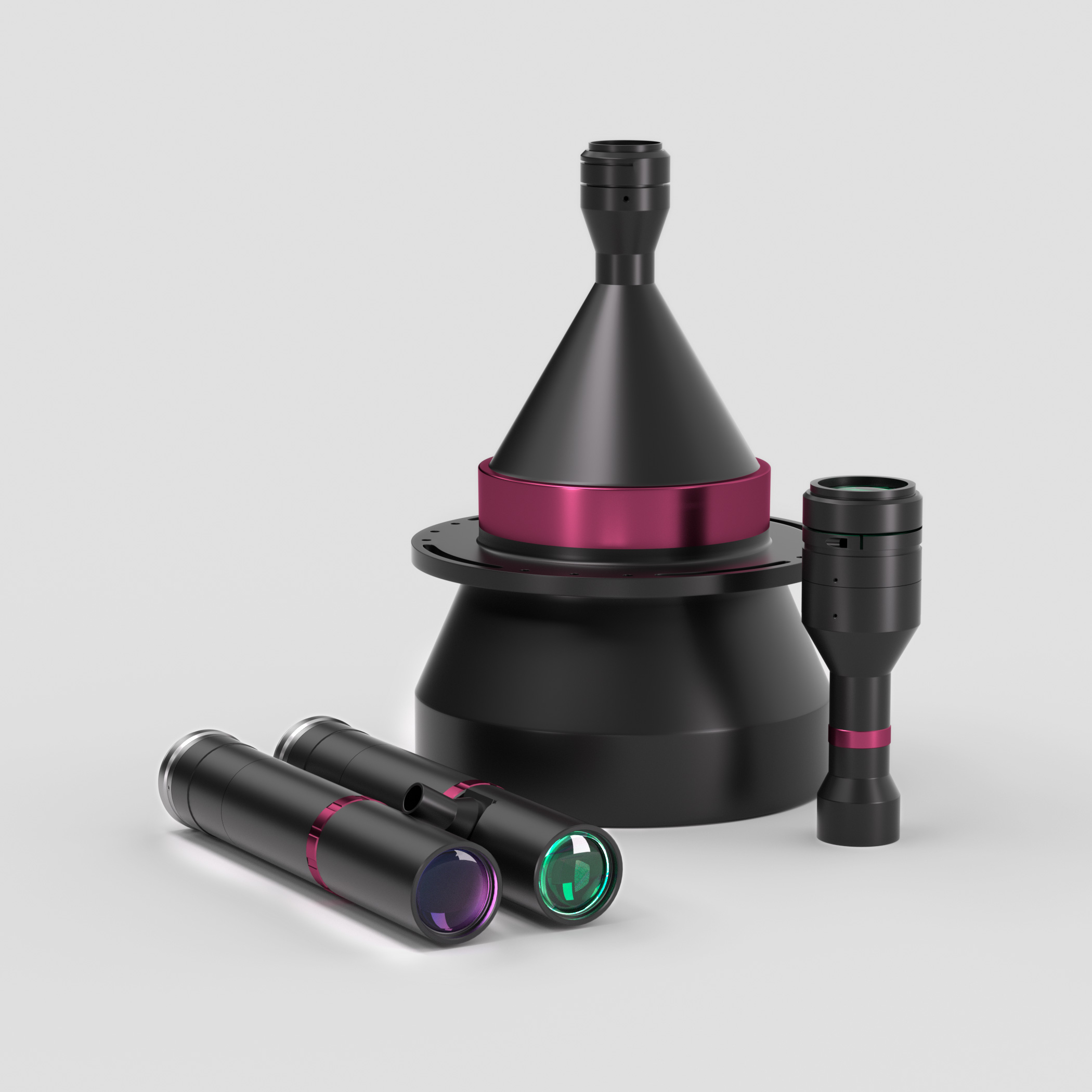

2" 2.8X Bi-Telecentric Lenses | DTCA210-11.8-M58 COOLENS®
$2,370.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA210-11.8-M58 | Image Circle Diameter (Φmm) | 33(2") | ||||
| Magnification(x) | 2.8 | Working Distance(mm) | 90±1 | ||||
| NA | 0.1422 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 11.8 | ||||
| Best Aperture(f/#) | 11 | MTF30 (lp/mm) | >90 | ||||
| Object Resolution(μm) | 2.4 | Depth of Field(mm) | ±0.05@F11 | ||||
| Distortion Typical(% max) | <0.02 | Telecentricity Typical (°max) | <0.05 | ||||
| Length of I/O(mm) | 403±1 | Length (mm) | 300.9 | ||||
| Weight(kg) | 1.25 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.05 | ||||
| Filter Screw Size | M48x0.5 | ||||||
| Field of View (mm × mm) |
GMAX 0806 43M(7915*5436, 2.8μm) | 7.9×5.4 | |||||
| SONY IMX342 32M(6480*4860, 3.45μm) | 8.0×6.0 | ||||||
| PYTHON 25K 25M(5120*5120, 4.5μm) | 8.2×8.2 | ||||||
Dimensions
Naming Rule
