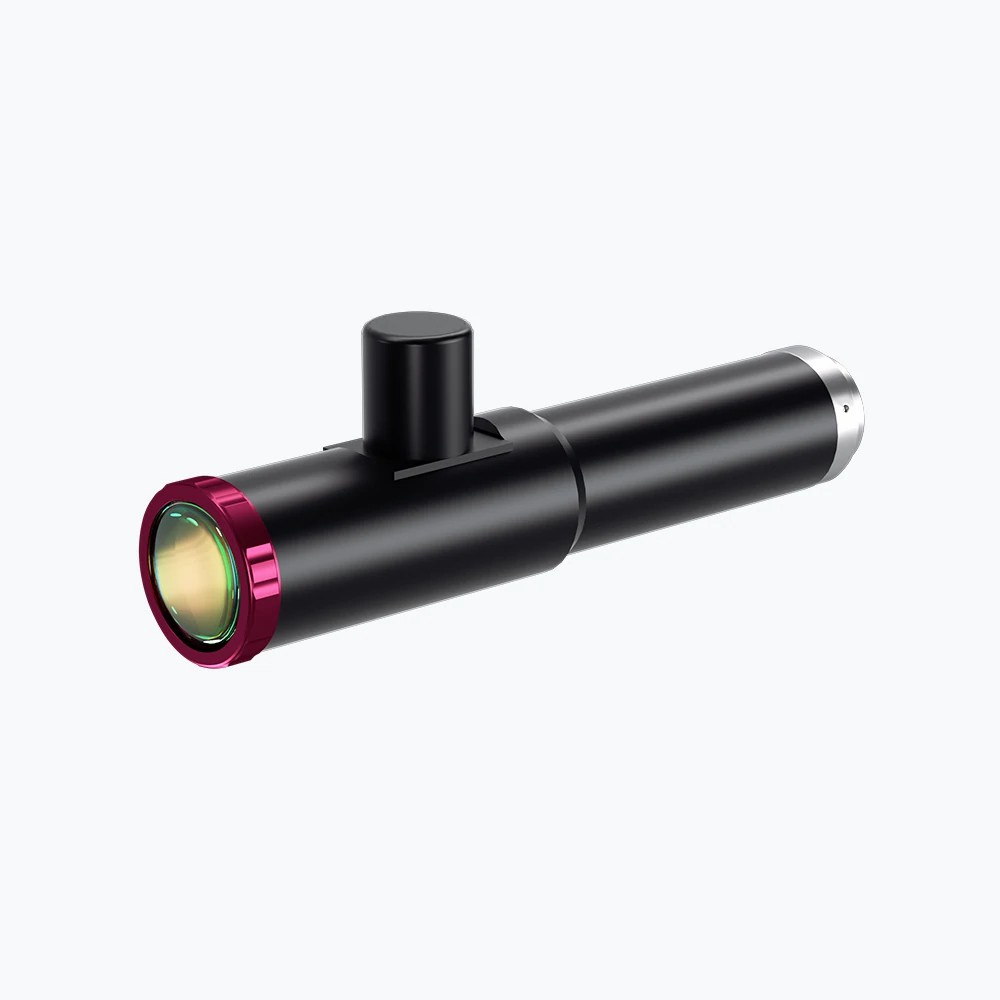

1.2" 2.74X Telecentric Lenses | DTCA121-7.3CL COOLENS®
$0.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA121-7.3CL | Image Circle Diameter (Φmm) | 20(1.2") | ||||
| Magnification(x) | 2.74 | Working Distance(mm) | 64 | ||||
| NA | 0.16 | Type | Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 7.3 | ||||
| Best Aperture(f/#) | 8.5 | MTF30 (lp/mm) | >105 | ||||
| Object Resolution(μm) | 2.1 | Depth of Field(mm) | ±0.05@F7.3 | ||||
| Distortion Typical(% max) | 0.06 | Telecentricity Typical (°max) | 0.005 | ||||
| Length of I/O(mm) | 269 | Length (mm) | 188.3 | ||||
| Weight(kg) | 0.5 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.07 | ||||
| Filter Screw Size | M38x0.5 | ||||||
| Field of View (mm × mm) |
1.2" IMX530/540 (14.6x12.6) | 5.33x4.59 | |||||
Dimensions
Naming Rule
