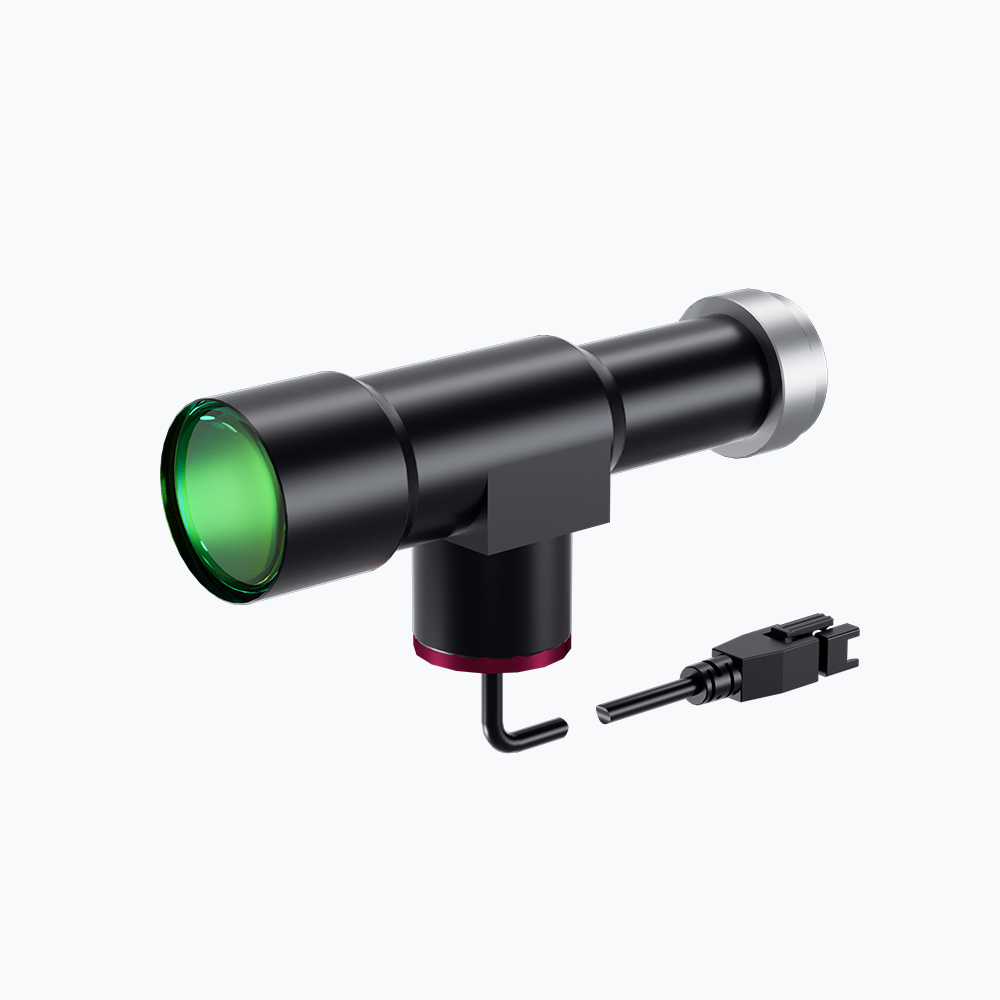

| Model NO. | WWH25-108CTLV3 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 2.500 | Working Distance(mm) | 108±2 | ||||
| NA | 0.1000 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 12.5 | ||||
| MTF30 (lp/mm) | 55 | Object Resolution(μm) | 3.4 | ||||
| Depth of Field(mm) | 0.2 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.6 | Length (mm) | 114.4 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.2 | ||||
| Filter Screw Size | M30x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 2.6×1.9 | ||||||
| 1/1.8”（7.13x5.37） | 2.9×2.1 | ||||||
| 2/3" IMX250/264 (8.45x7.1) | 3.5x2.6 | ||||||
