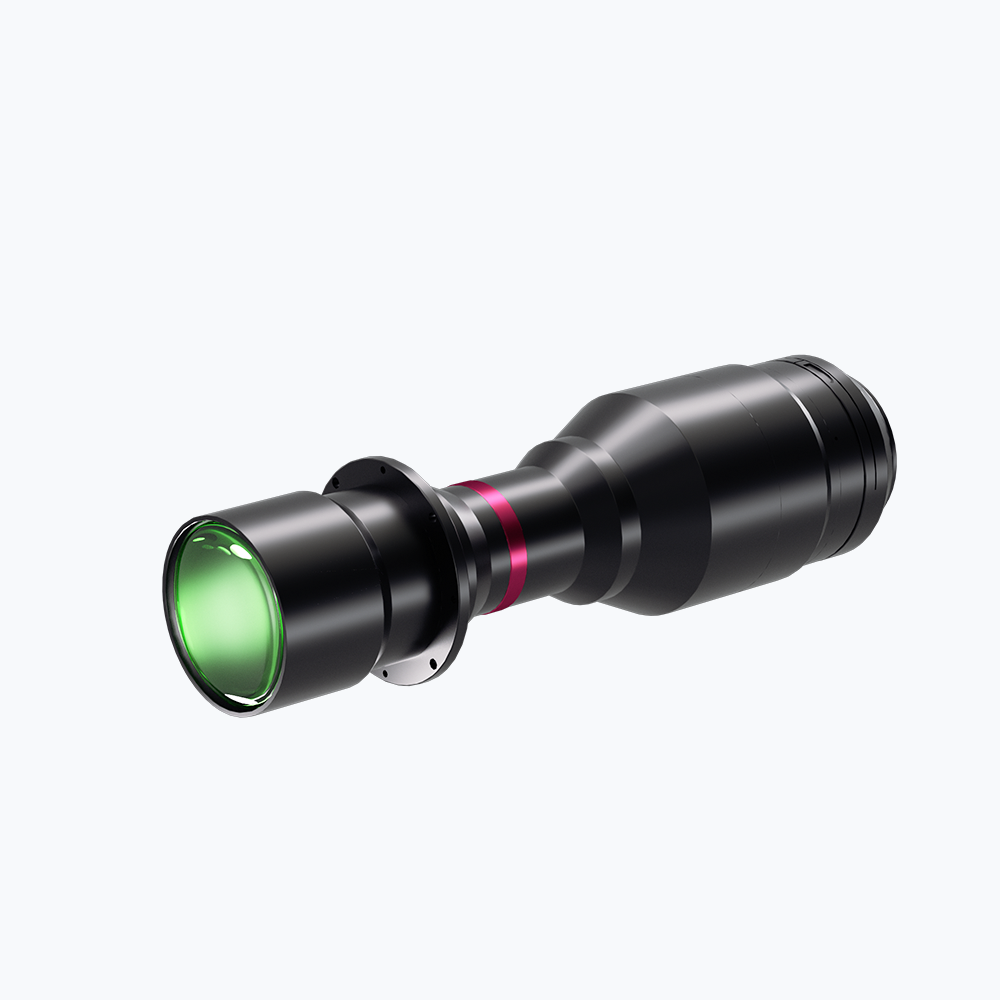

24K 2X Bi-Telecentric Lenses | DTCA24K-44-M95-AL COOLENS®
$9,741.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA24K-44-M95-AL | Image Circle Diameter (Φmm) | 88(24K) | ||||
| Magnification(x) | 2 | Working Distance(mm) | 118 | ||||
| NA | 0.2081 | Type | Bi-Telecentric | ||||
| Mount | M95 | Object Field of View(Φmm) | 44 | ||||
| Best Aperture(f/#) | 4.8 | MTF30 (lp/mm) | >62 | ||||
| Object Resolution(μm) | 1.6 | Depth of Field(mm) | ±0.05@F4.8 | ||||
| Distortion Typical(% max) | 0.045 | Telecentricity Typical (°max) | 0.1 | ||||
| Length of I/O(mm) | 593 | Length (mm) | 463 | ||||
| Weight(kg) | 5 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.4 | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm × mm) |
64.32x48.38 with DALSA 86M | 32.2×24.2 | |||||
| 81.9mm with Linescan-16K 5μm | 40.9mm | ||||||
| 86.0mm with Linescan-24K 3.5μm | 43.0mm | ||||||
Dimensions
Naming Rule
