2/3" 35mm Fixed Focal Length Lens | MFA230-S35 COOLENS®
$117.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model No. | MFA230-S35 | Image Circle Diameter (Φmm) | 2/3" | ||||
| Focal Length(mm) | 35 | Magnification(x) | Adjustable | ||||
| Working Distance(mm) | Min.200 | MTF30 (lp/mm) | 150 | ||||
| Type | Fixed Focal Length | Support Cameras | 10M | ||||
| Mount | C | Back Focal Length | 14.93mm in Air | ||||
| F NO. | F2.0 - F16 | Filter Size | M25.5 x P0.5 | ||||
| Max. Image Format | 2/3" (φ11.4mm) | Distortion | <0.1% | ||||
| Angle of View | D | 2/3" | 16.5° | 1/1.8" | 13.5° | 1/2" | 12.1° |
| H | 12.8° | 11.7° | 9.6° | ||||
| V | 10.7° | 7.4° | 7.2° | ||||
| M.o.D | 0.2m | Object Dimension at M.o.D | 2/3" | 47.28mm x 39.63mm | |||
| Length (mm) | 43.24 | 1/1.7" | 41.53mm x 31.36mm | ||||
| Flange Back Length | 17.526mm in Air | ||||||
| Structure | 5 Groups, 8 Elements | Operating Temperature | -10°C — 50°C | ||||
| Operation of Iris | Range | F2.0 - F16 | Operation of Focus | Range | MOD-INF | ||
| Angle | 76.8° |
Angle
|
327.4°
|
||||
| Spectral Transmission | AT 436nm-656nmT≥85% | ||||||
Dimensions

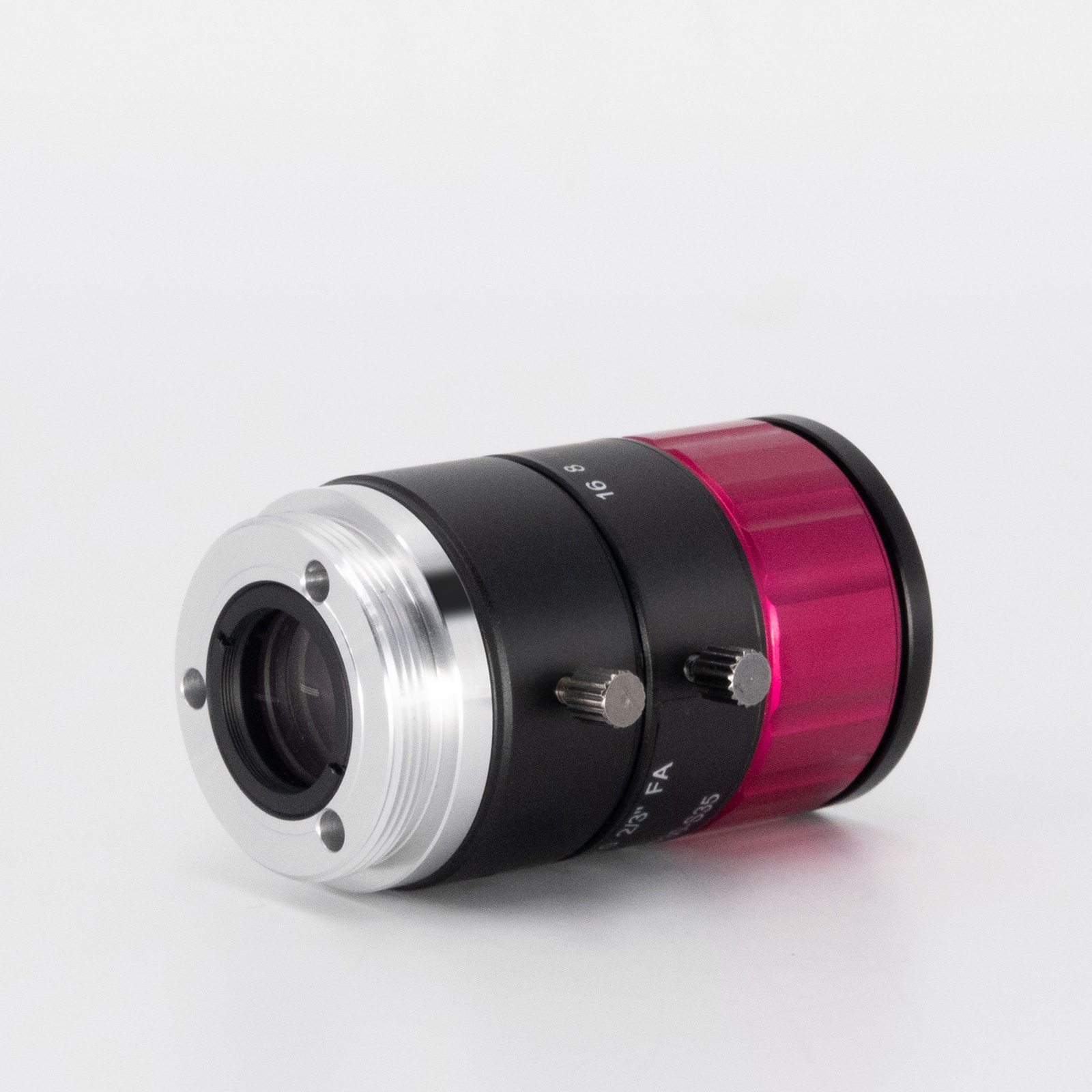

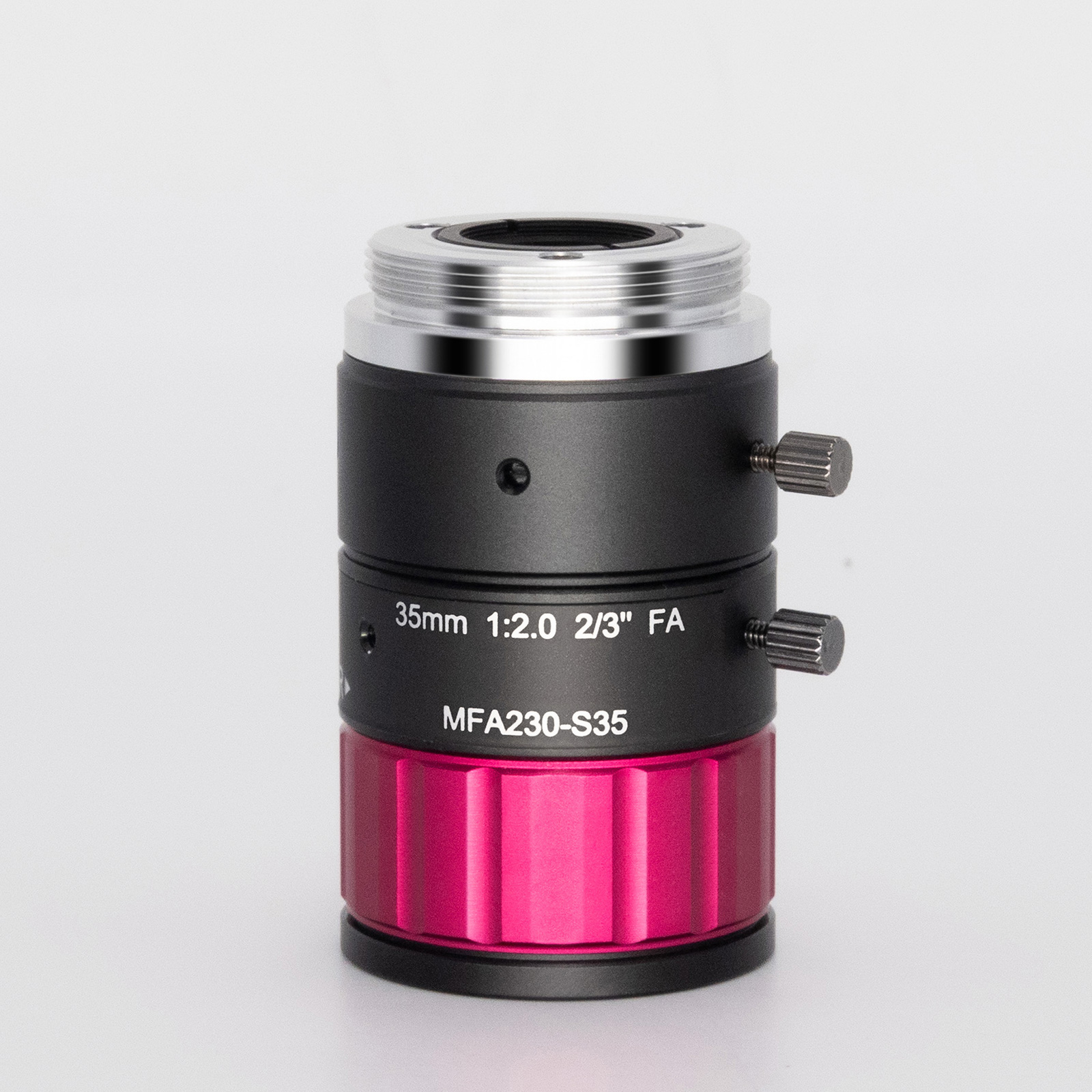

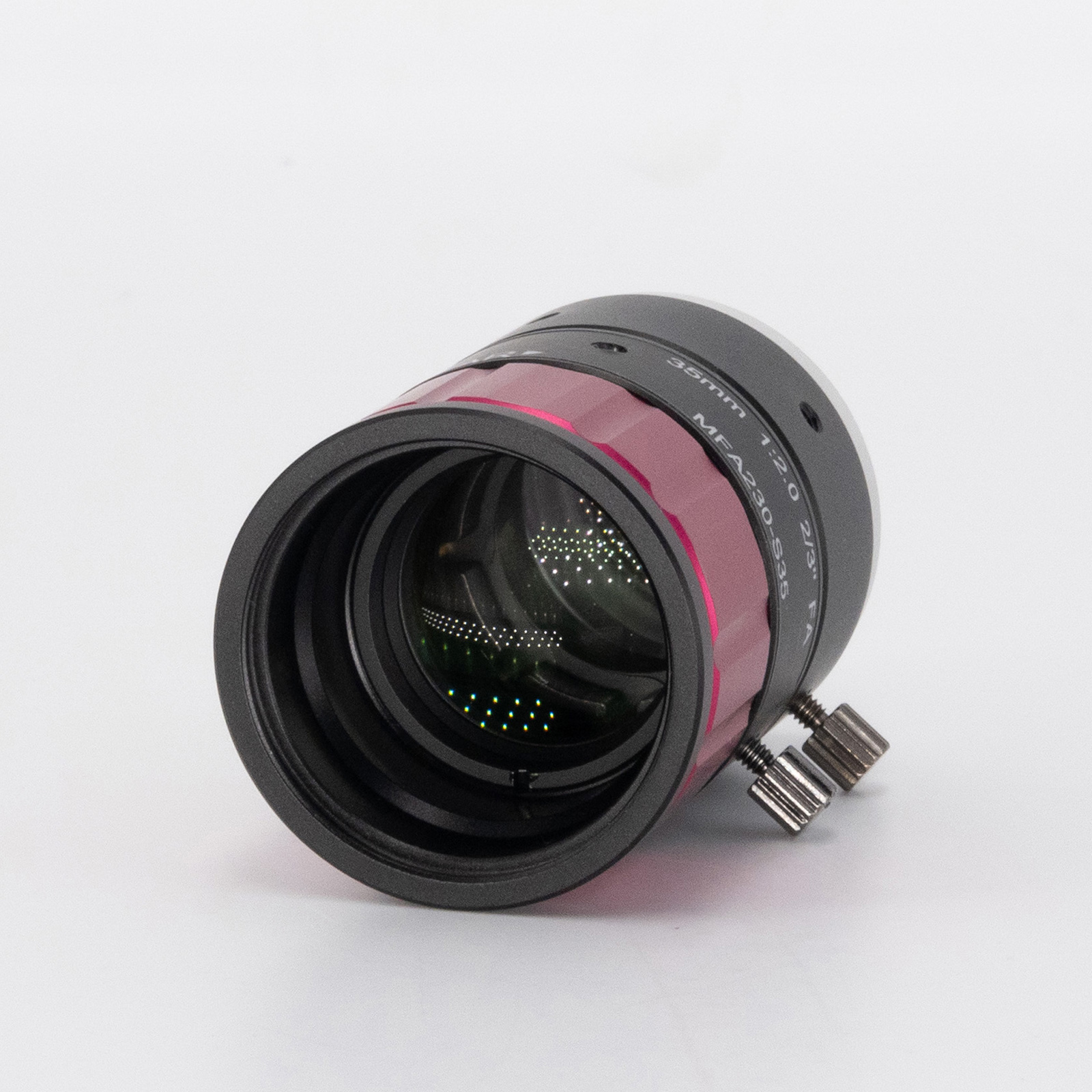

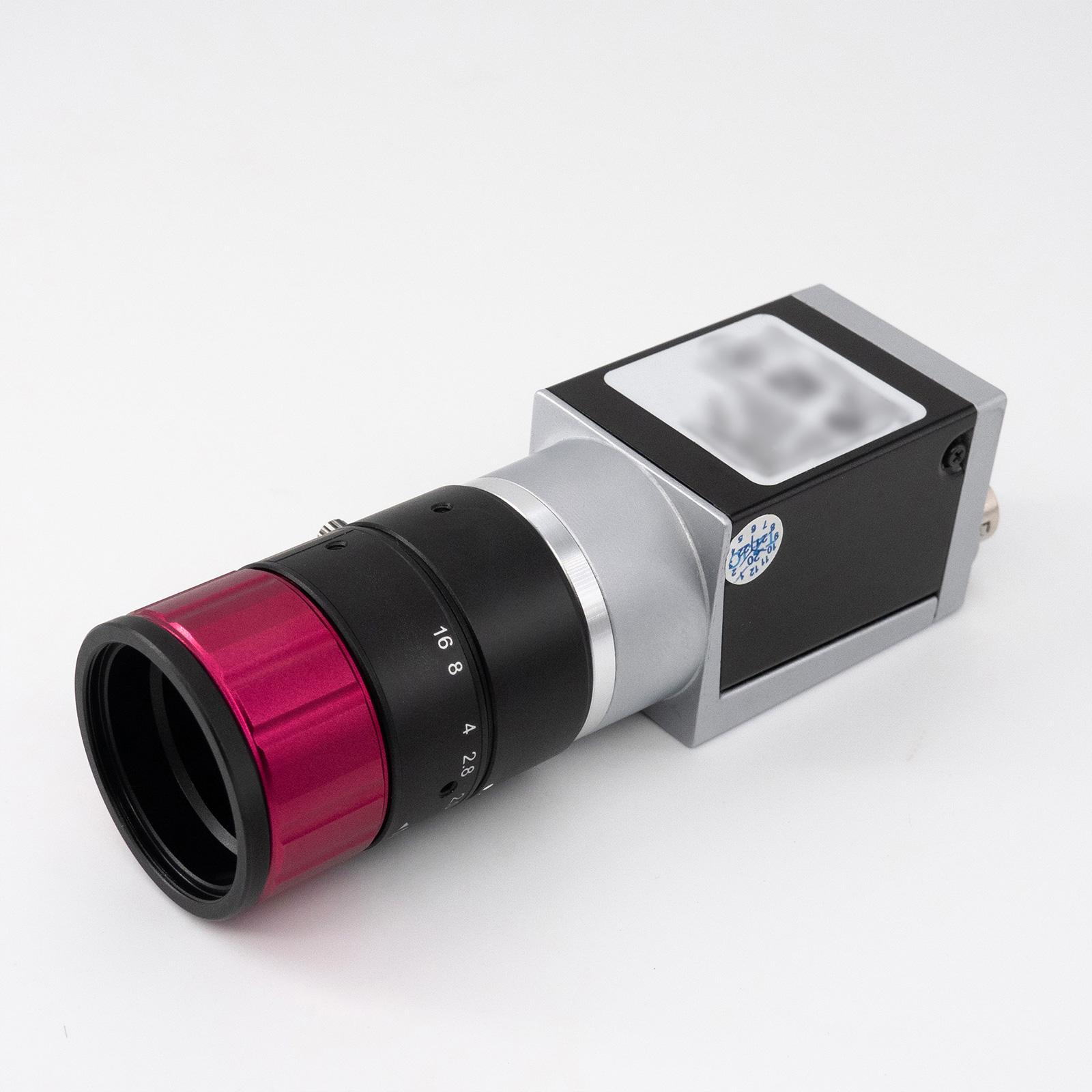

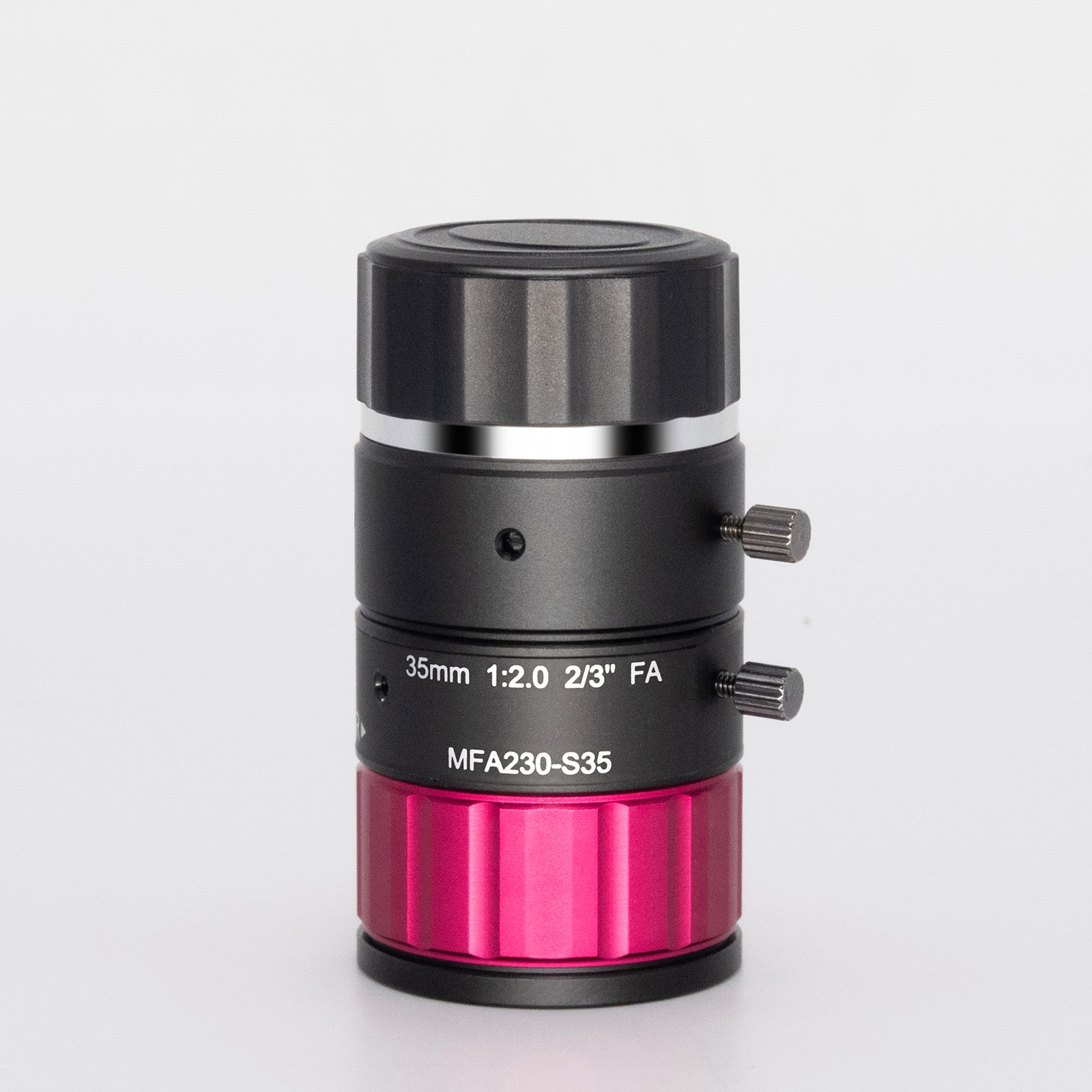

Product Photograph
