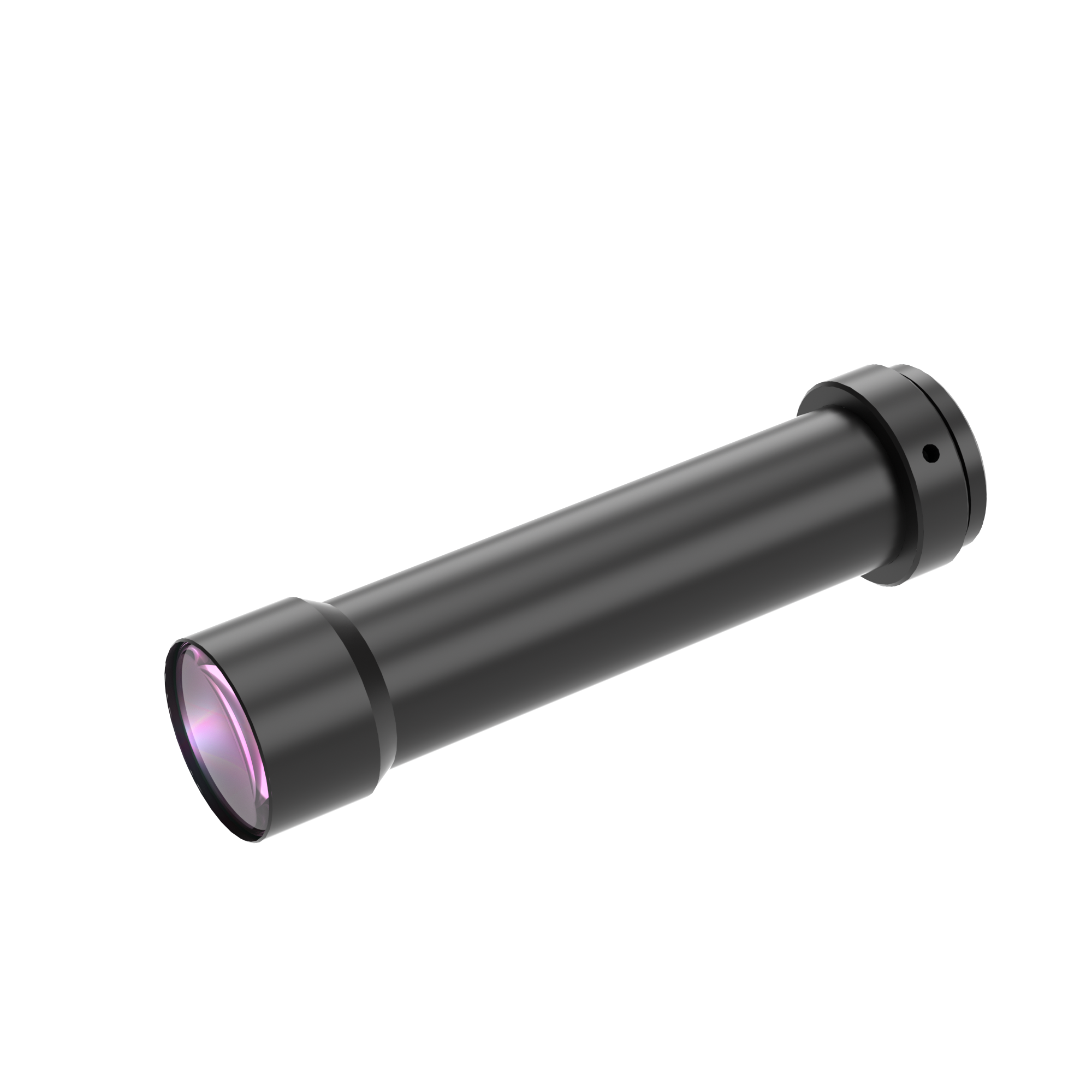

| Model NO. | WWH40-65AT | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 4.000 | Working Distance(mm) | 65 | ||||
| NA | 0.1078 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 17.9 | ||||
| MTF30 (lp/mm) | 45 | Object Resolution(μm) | 3.112 | ||||
| Depth of Field(mm) | 0.090 | Distortion Typical(% max) | 0.13 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 101.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.2 | ||||
| Filter Screw Size | M21x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 1.6x1.2 | ||||||
| 1/1.8”（7.13x5.37） | 1.8x1.3 | ||||||
| 2/3" (8.8x6.6) | 2.1x1.8 | ||||||
