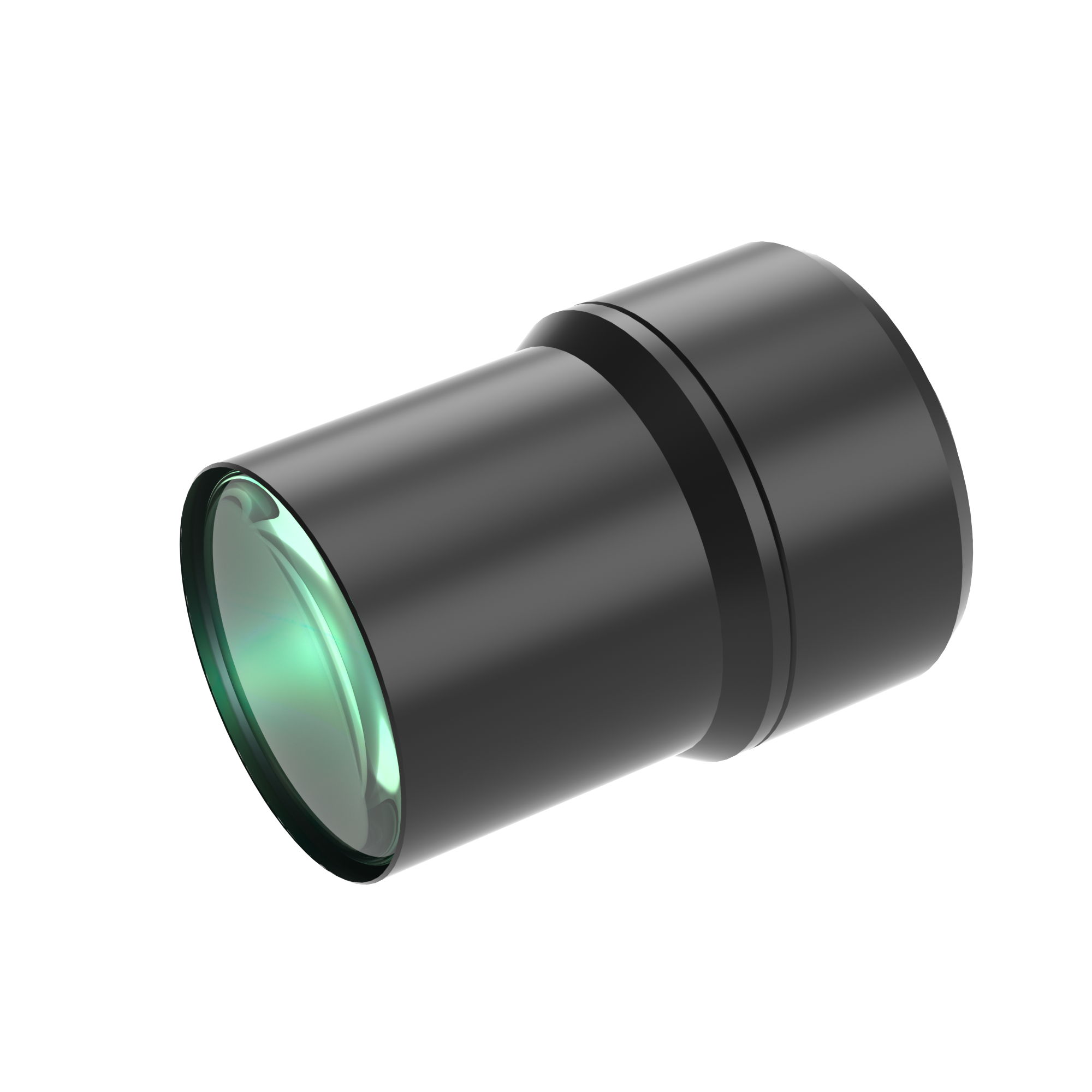

| Model NO. | WWT230-02-264 | Image Circle Diameter (Φmm) | 11.0(2/3") | ||||
| Focal Length(mm) | 47.49 | Magnification(x) | 0.2 | ||||
| Working Distance(mm) | 264 | MTF30 (lp/mm) | 114 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0167 | Best Aperture(f/#) | 6 | ||||
| Object Resolution(μm) | 20.1 | Depth of Field(mm) | 12 | ||||
| TV Distortion | 0.0443 | Length (mm) | 54.5 | ||||
| Measured Depth of Field (mm) | 5 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.13x5.37） | 35.7x26.9 | ||||||
| 1/1.8”（7.43x4.9） | 37.2x24.5 | ||||||
| 2/3”（8.45x7.1） | 42.25x35.5 | ||||||
