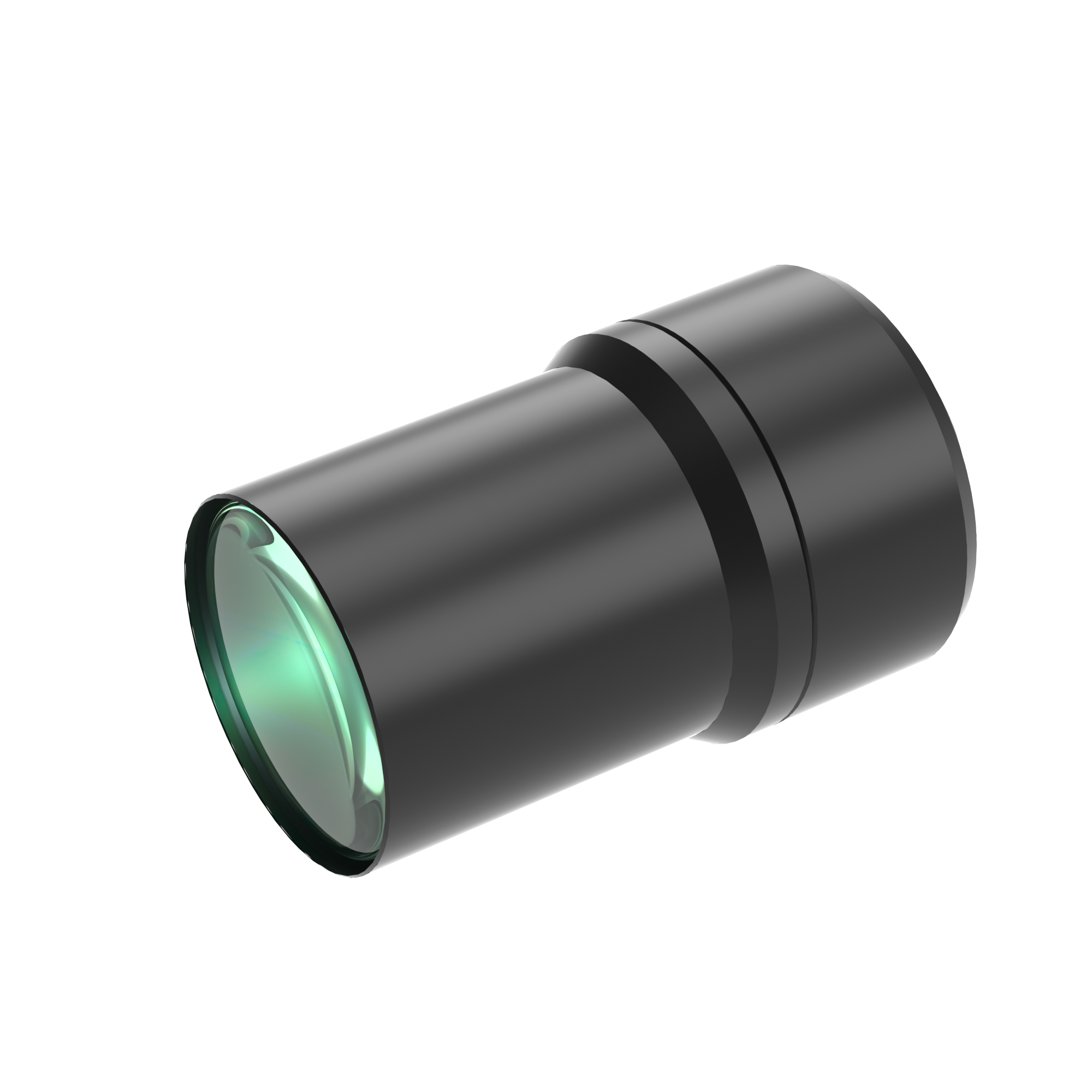

| Model NO. | WWT230-04-144 | Image Circle Diameter (Φmm) | 11.0(2/3") | ||||
| Focal Length(mm) | 45.81 | Magnification(x) | 0.4 | ||||
| Working Distance(mm) | 144 | MTF30 (lp/mm) | 104 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0308 | Best Aperture(f/#) | 6.5 | ||||
| Object Resolution(μm) | 10.9 | Depth of Field(mm) | 3.3 | ||||
| TV Distortion | 0.0641 | Length (mm) | 62.3 | ||||
| Measured Depth of Field (mm) | 1.8 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.13x5.37） | 17.8x13.4 | ||||||
| 1/1.8”（7.43x4.9） | 18.6x12.3 | ||||||
| 2/3”（8.45x7.1） | 21.13x17.75 | ||||||
