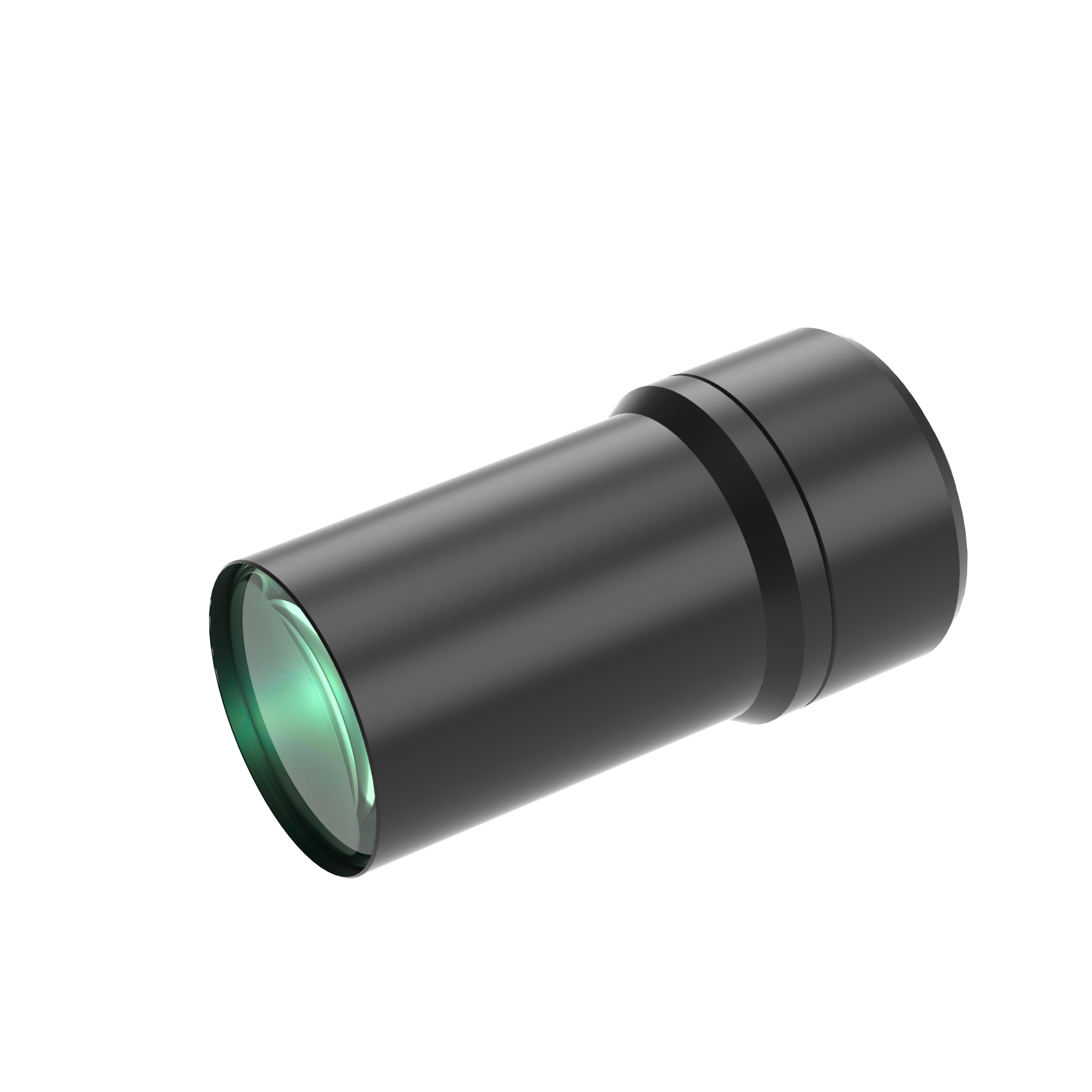

| Model NO. | WWT230-07-95 | Image Circle Diameter (Φmm) | 11.0(2/3") | ||||
| Focal Length(mm) | 45.48 | Magnification(x) | 0.7 | ||||
| Working Distance(mm) | 95 | MTF30 (lp/mm) | 96 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0466 | Best Aperture(f/#) | 7.5 | ||||
| Object Resolution(μm) | 7.2 | Depth of Field(mm) | 1.2 | ||||
| TV Distortion | -0.0268 | Length (mm) | 75.5 | ||||
| Measured Depth of Field (mm) | 1 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.13x5.37） | 10.2x7.7 | ||||||
| 1/1.8”（7.43x4.9） | 10.6x7 | ||||||
| 2/3”（8.45x7.1） | 12.07x10.14 | ||||||
