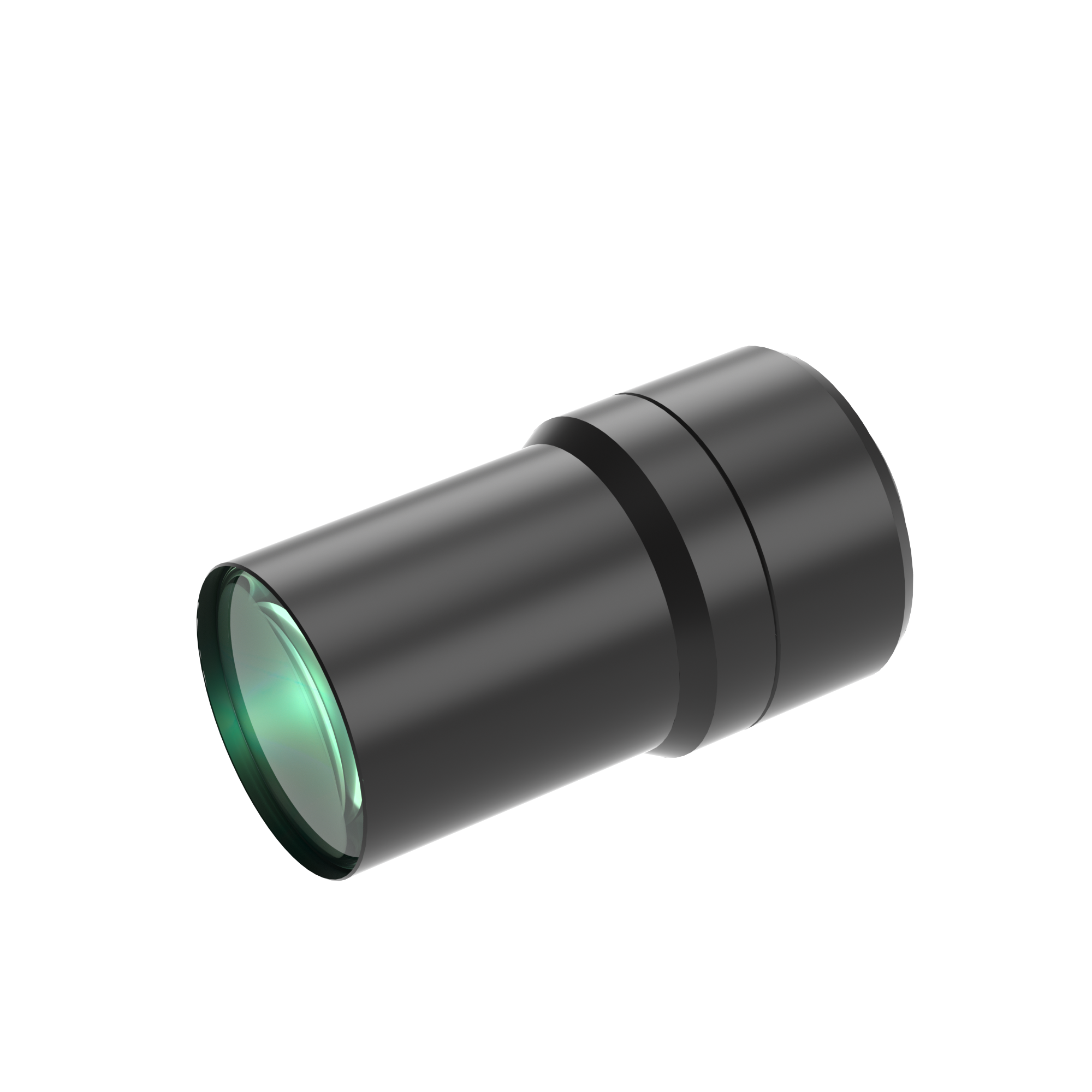

| Model NO. | WWT230-09-60 | Image Circle Diameter (Φmm) | 11.0(2/3") | ||||
| Focal Length(mm) | 43.39 | Magnification(x) | 0.9 | ||||
| Working Distance(mm) | 60 | MTF30 (lp/mm) | 102 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0530 | Best Aperture(f/#) | 8.5 | ||||
| Object Resolution(μm) | 6.3 | Depth of Field(mm) | 0.8 | ||||
| TV Distortion | -0.04 | Length (mm) | 69.7 | ||||
| Measured Depth of Field (mm) | 0.3 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.13x5.37） | 7.92x5.97 | ||||||
| 1/1.8”（7.43x4.9） | 8.25x5.44 | ||||||
| 2/3”（8.45x7.1） | 9.4x7.9 | ||||||
