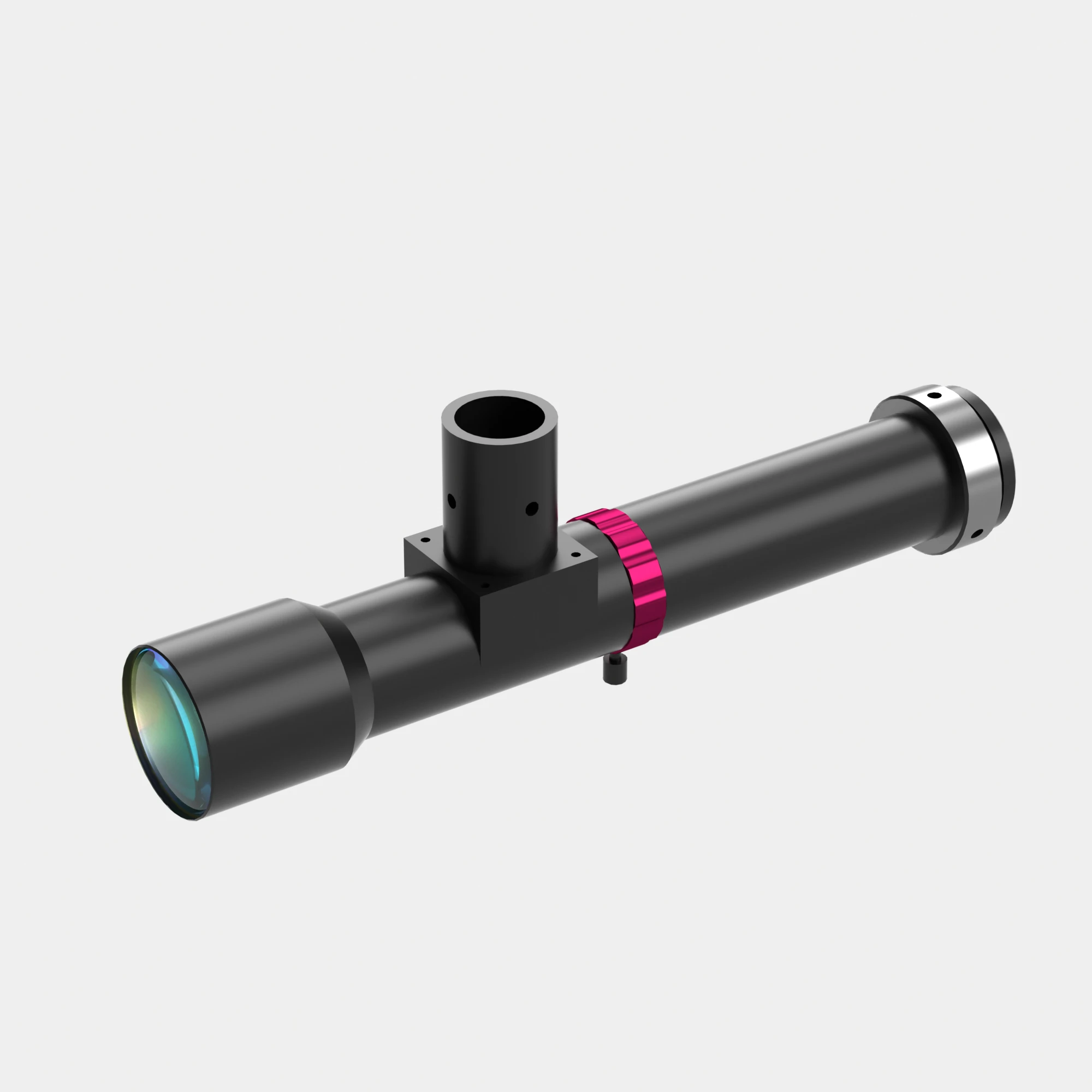

| Model NO. | WWH20-110CT-G | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 3.0 | Working Distance(mm) | 110 | ||||
| NA | 0.0536 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 18.2-Close | ||||
| MTF30 (lp/mm) | 47 | Object Resolution(μm) | 6.259 | ||||
| Depth of Field(mm) | Adjustable | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 151.7 | ||||
| With Coaxial Illumination Port | Yes | Iris Adjustable | Yes | ||||
| Measured Depth of Field (mm) | Adjustable | Filter Screw Size | M25x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/2" (6.4x4.8) | 3.2x2.4 | ||||||
| 1/1.8”（7.13x5.37） | 3.6x2.7 | ||||||
| 2/3" (8.8x6.6) | 4.4x3.3 | ||||||
