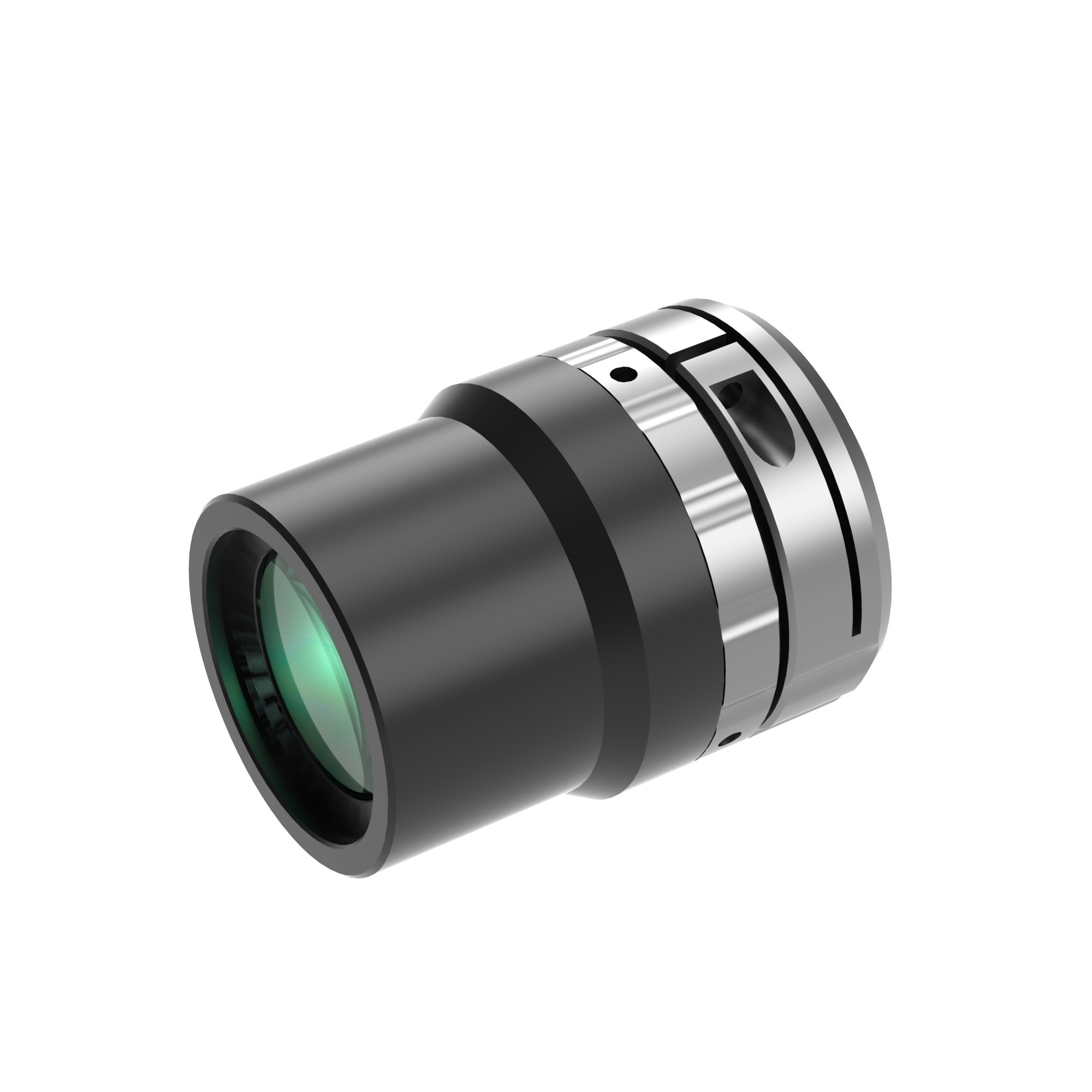

| Model NO. | WWT230-05-90 | Image Circle Diameter (Φmm) | 11.0(2/3") | ||||
| Focal Length(mm) | 38.01 | Magnification(x) | 0.5 | ||||
| Working Distance(mm) | 90 | MTF30 (lp/mm) | 118 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0357 | Best Aperture(f/#) | 7 | ||||
| Object Resolution(μm) | 9.4 | Depth of Field(mm) | 2.2 | ||||
| TV Distortion | 0.022 | Length (mm) | 52.2 | ||||
| Measured Depth of Field (mm) | 1.4 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.43x4.9） | 14.86x9.8 | ||||||
| 2/3”（8.45x7.1） | 10.9x14.2 | ||||||
