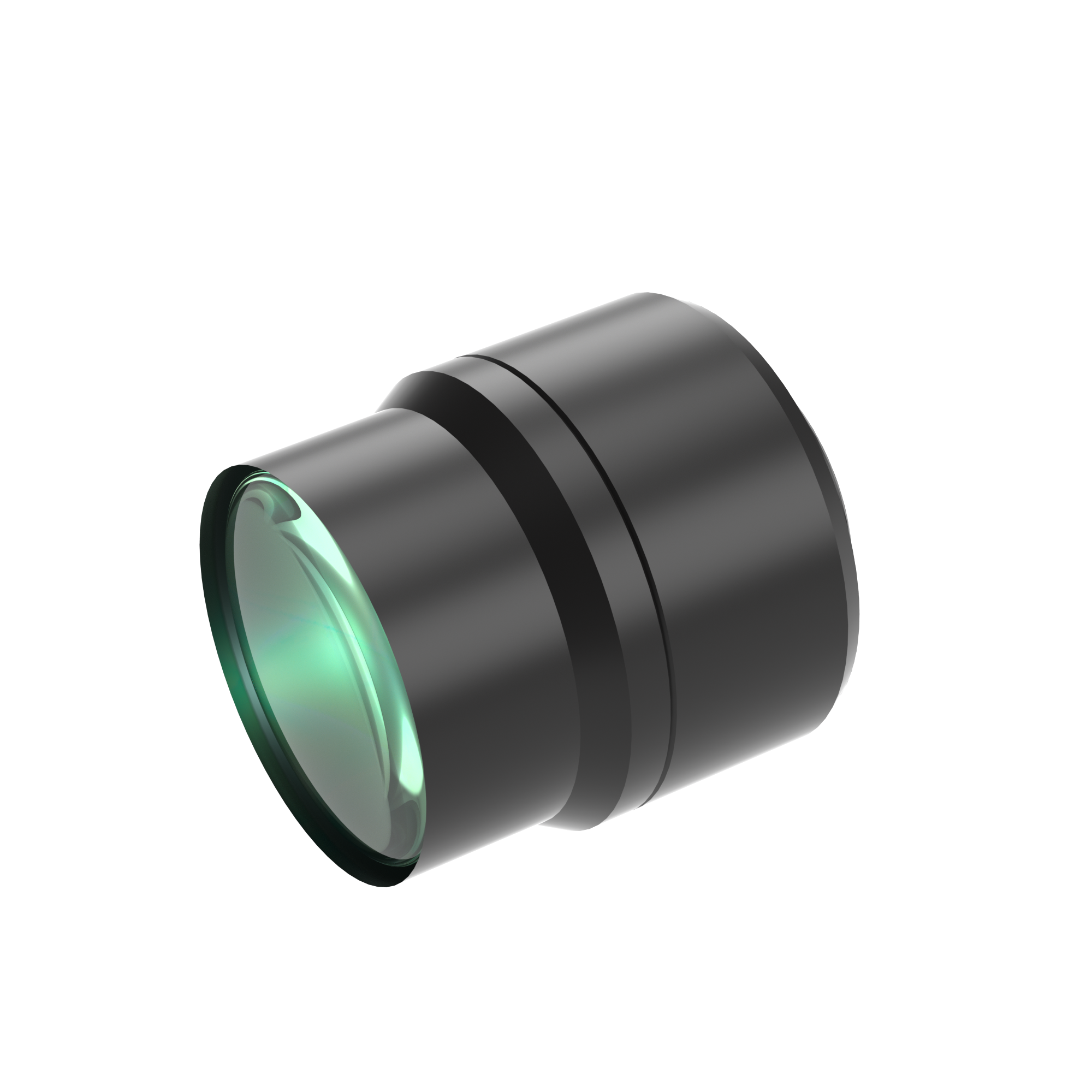

| Model NO. | WWT230-02-192 | Image Circle Diameter (Φmm) | 11.0(2/3") | ||||
| Focal Length(mm) | 35.52 | Magnification(x) | 0.2 | ||||
| Working Distance(mm) | 192 | MTF30 (lp/mm) | 124 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0178 | Best Aperture(f/#) | 5.6 | ||||
| Object Resolution(μm) | 18.9 | Depth of Field(mm) | 11.2 | ||||
| TV Distortion | -0.028 | Length (mm) | 40.7 | ||||
| Measured Depth of Field (mm) | 5.2 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.13x5.37） | 35.65x26.85 | ||||||
| 1/1.8”（7.43x4.9） | 37.15x24.5 | ||||||
| 2/3”（8.45x7.1） | 42.25x35.5 | ||||||
