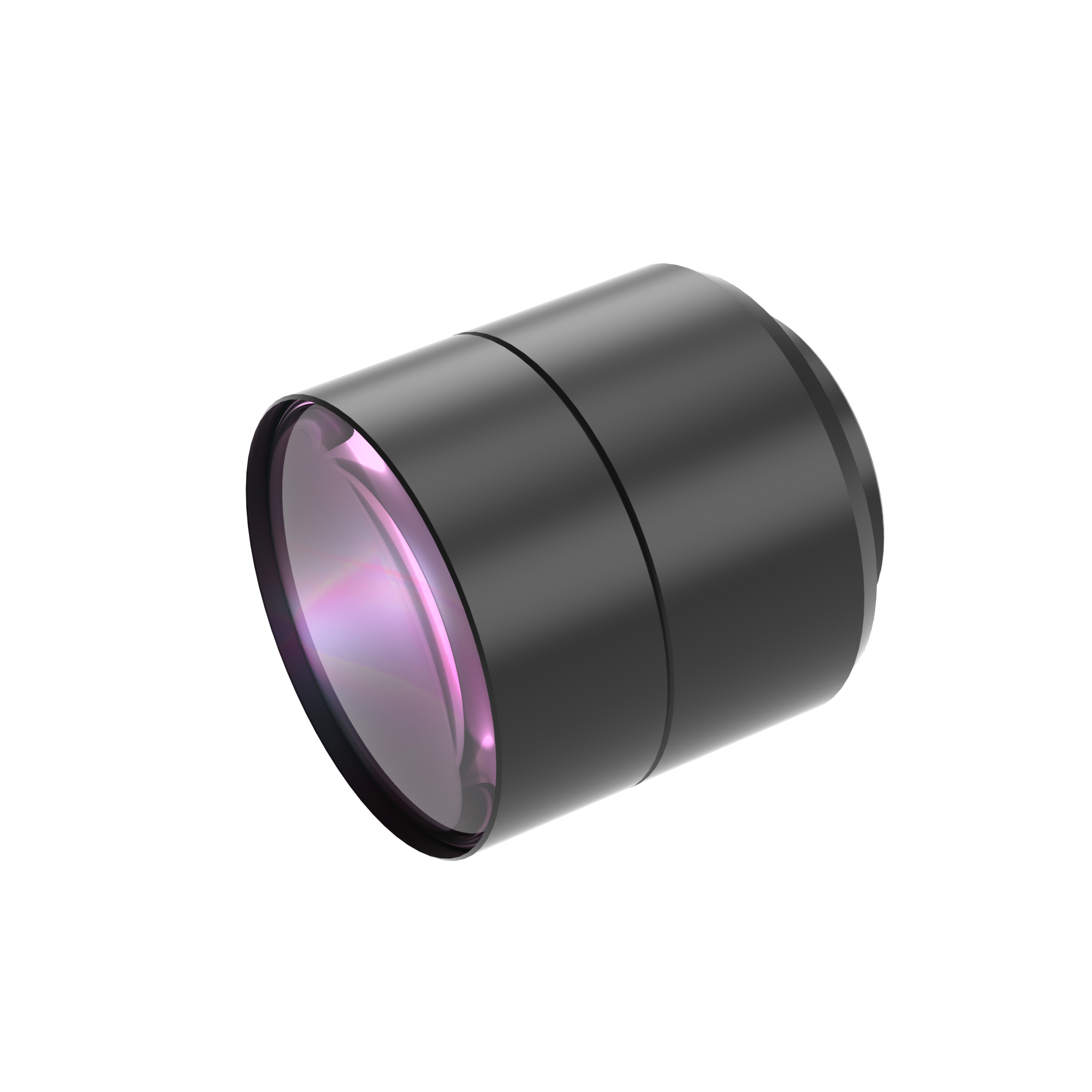

| Model NO. | WWT230-03-88 | Image Circle Diameter (Φmm) | 11.0(2/3") | ||||
| Focal Length(mm) | 24.99 | Magnification(x) | 0.3 | ||||
| Working Distance(mm) | 88 | MTF30 (lp/mm) | 109 | ||||
| Type | Fixed Magnification Focal Length | Mount | C | ||||
| NA | 0.0231 | Best Aperture(f/#) | 6.5 | ||||
| Object Resolution(μm) | 14.6 | Depth of Field(mm) | 5.8 | ||||
| TV Distortion | -0.049 | Length (mm) | 33.5 | ||||
| Measured Depth of Field (mm) | 2.8 | Filter Screw Size | M30x0.5 | ||||
| Field of View (mm x mm) | |||||||
| 1/1.8”（7.43x4.9） | 24.7x16.3 | ||||||
| 2/3”（8.45x7.1） | 28.17x23.67 | ||||||
