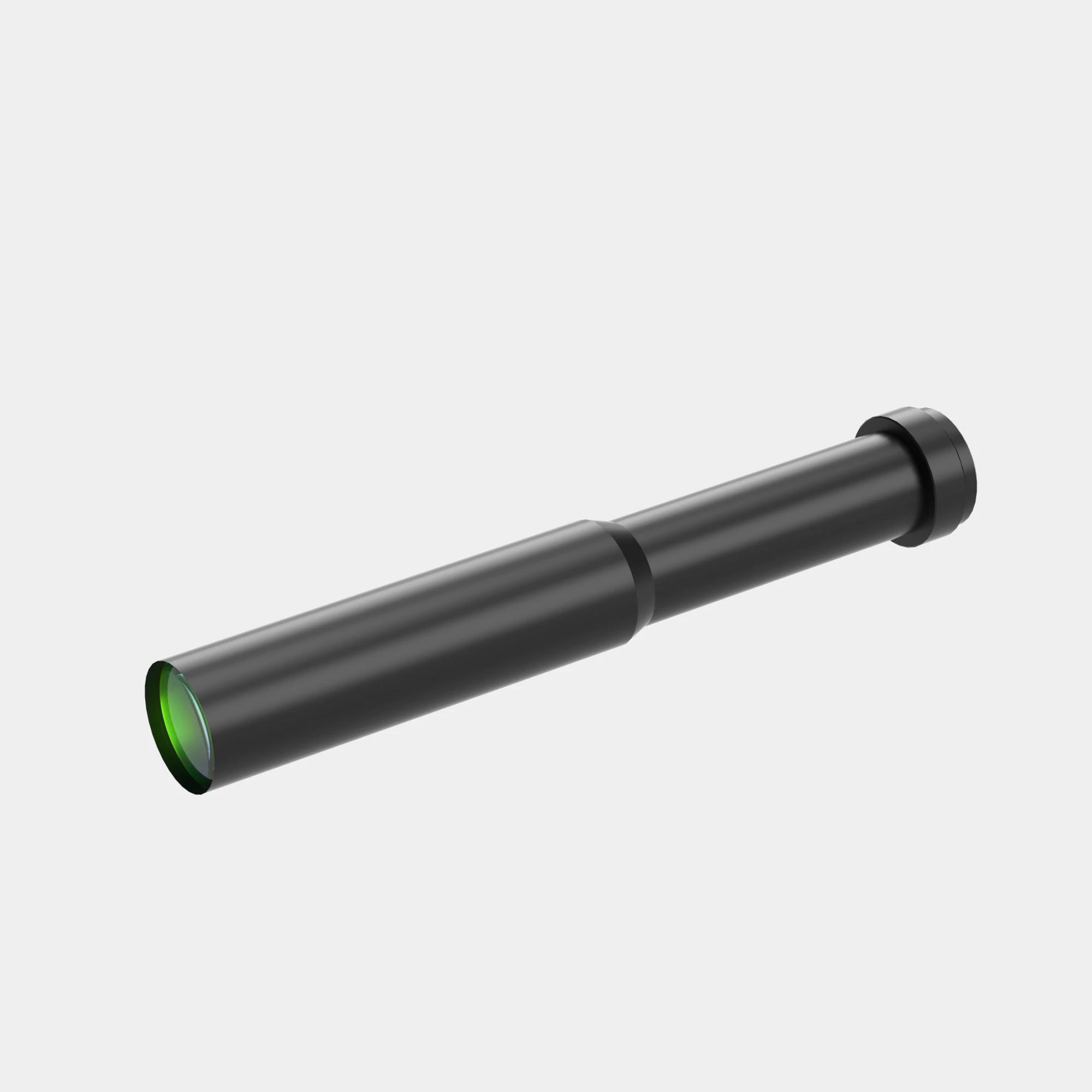

| Model NO. | WWH10-510AT | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 1.0 | Working Distance(mm) | 510 | ||||
| NA | 0.0197 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 25.7 | ||||
| MTF30 (lp/mm) | 32 | Object Resolution(μm) | 17.030 | ||||
| Depth of Field(mm) | 2.056 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 175 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.2 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2" (6.4x4.8) | 6.4x4.8 | ||||||
| 1/1.8" (7.13x5.37) | 7.13x5.37 | ||||||
| 2/3" (8.8x6.6) | 8.8x6.6 | ||||||
