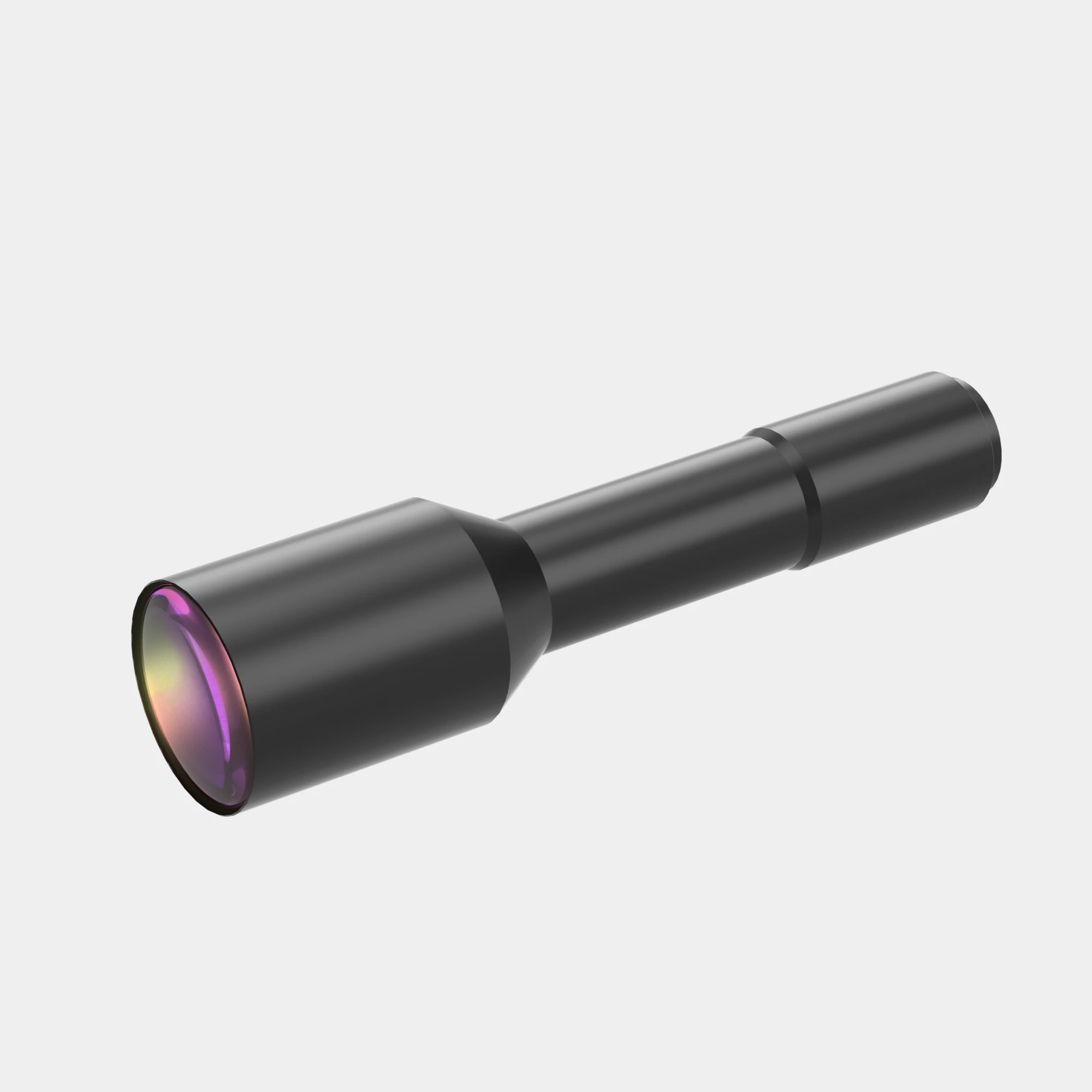

2/3" 1X Telecentric Lenses | WWH10-300AT-230V2 COOLENS®
$546.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWH10-300AT-230V2 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 1.000 | Working Distance(mm) | 300±3 | ||||
| NA | 0.0454 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 11 | ||||
| MTF30 (lp/mm) | 90 | Object Resolution(μm) | 7.4 | ||||
| Depth of Field(mm) | 0.9 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 179.5 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.5 | ||||
| Filter Screw Size | M43x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 6.4x4.8 | ||||||
| 1/1.8”（7.13x5.37） | 7.13x5.37 | ||||||
| 2/3" (8.8x6.6) | 8.8x6.6 | ||||||
