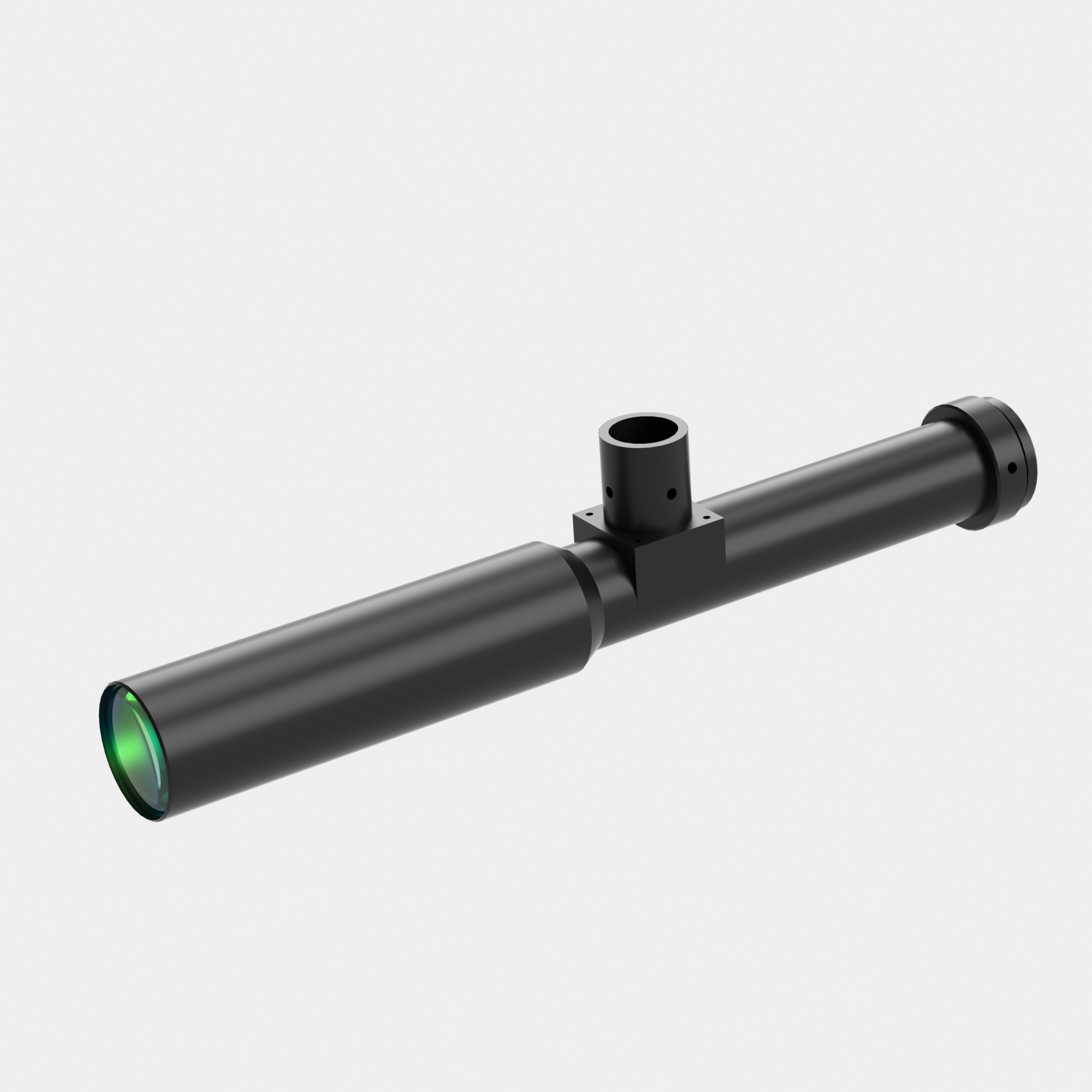

| Model NO. | WH10-330CIR-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 1 | Working Distance(mm) | 330 | ||||
| NA | 0.0315 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 15.6 | ||||
| MTF30 (lp/mm) | 20 | Object Resolution(μm) | 16.3 | ||||
| Depth of Field(mm) | 1.2 | Distortion Typical(% max) | 0.52 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 207.4 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 6.4x4.8 | ||||||
| 1/1.8"(7.13x5.37) | 7.13x5.37 | ||||||
| 2/3"(8.8x6.6) | 8.8x6.6 | ||||||
