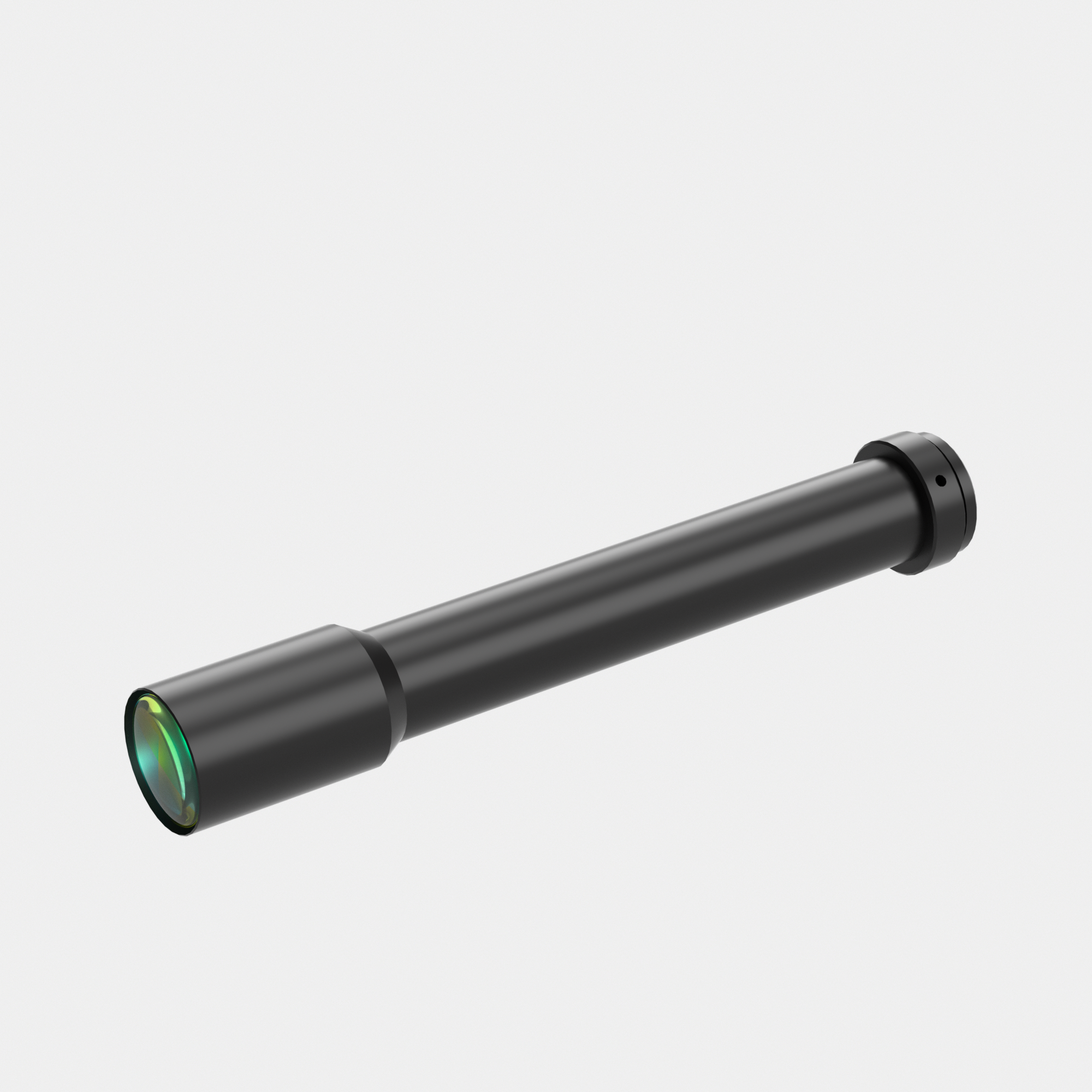

| Model NO. | WH10-200A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 1 | Working Distance(mm) | 200 | ||||
| NA | 0.0197 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 24.8 | ||||
| MTF30 (lp/mm) | 35 | Object Resolution(μm) | 17 | ||||
| Depth of Field(mm) | 2 | Distortion Typical(% max) | 1.7 | ||||
| Telecentricity Typical (°max) | 0.1 | Length (mm) | 174.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.6 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4×4.8) | 6.4x4.8 | ||||||
| 1/1.8"(7.13×5.37) | 7.13x5.37 | ||||||
| 2/3"(8.8×6.6) | 8.8x6.6 | ||||||
