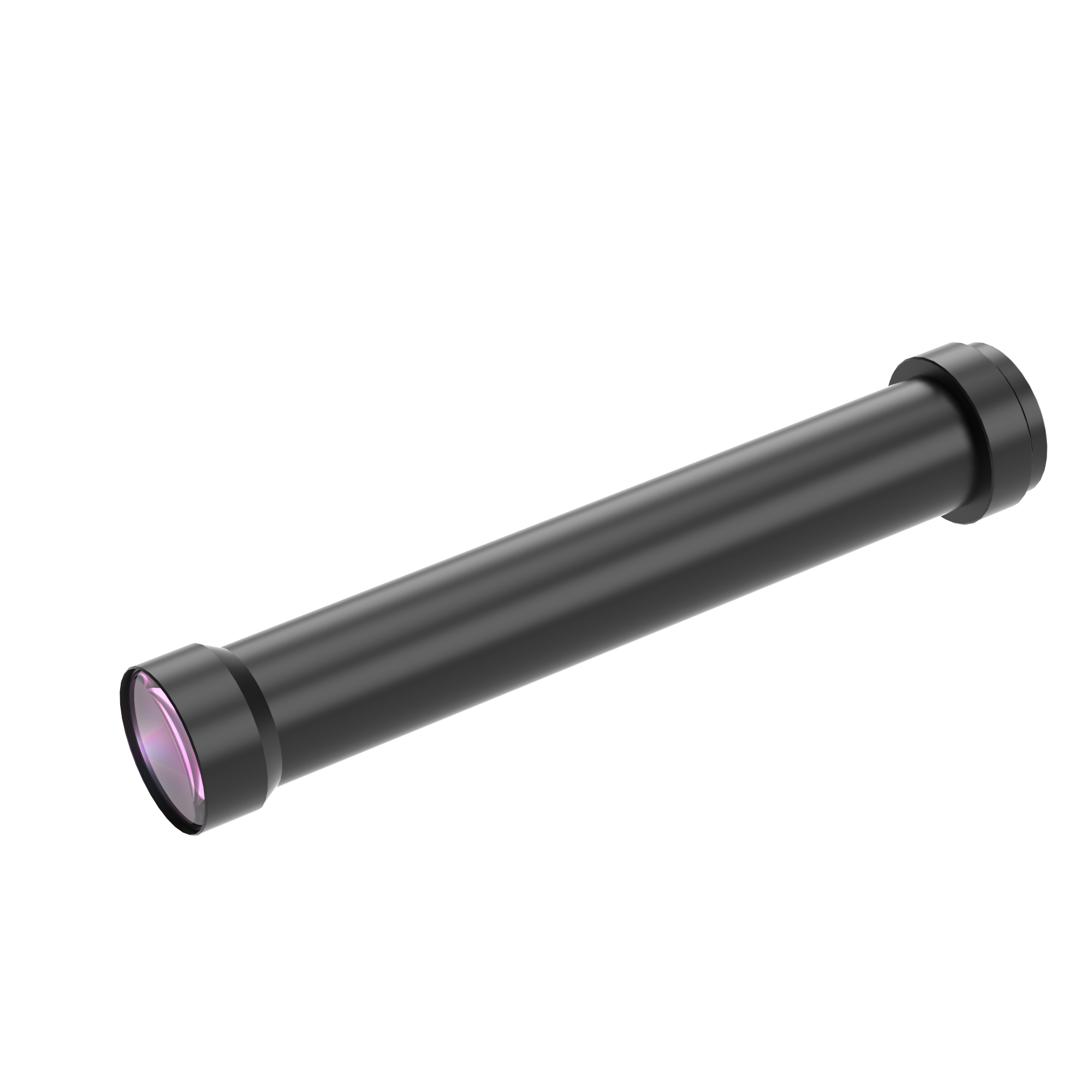

| Model NO. | WWH100-65AT | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 10.000 | Working Distance(mm) | 63 | ||||
| NA | 0.1266 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 39 | ||||
| MTF30 (lp/mm) | 22 | Object Resolution(μm) | 2.600 | ||||
| Depth of Field(mm) | 0.030 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 146.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.08 | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 0.64x0.48 | ||||||
| 1/1.8”（7.13x5.37） | 0.71x0.54 | ||||||
| 2/3" (8.8x6.6) | 0.85x0.71 | ||||||
