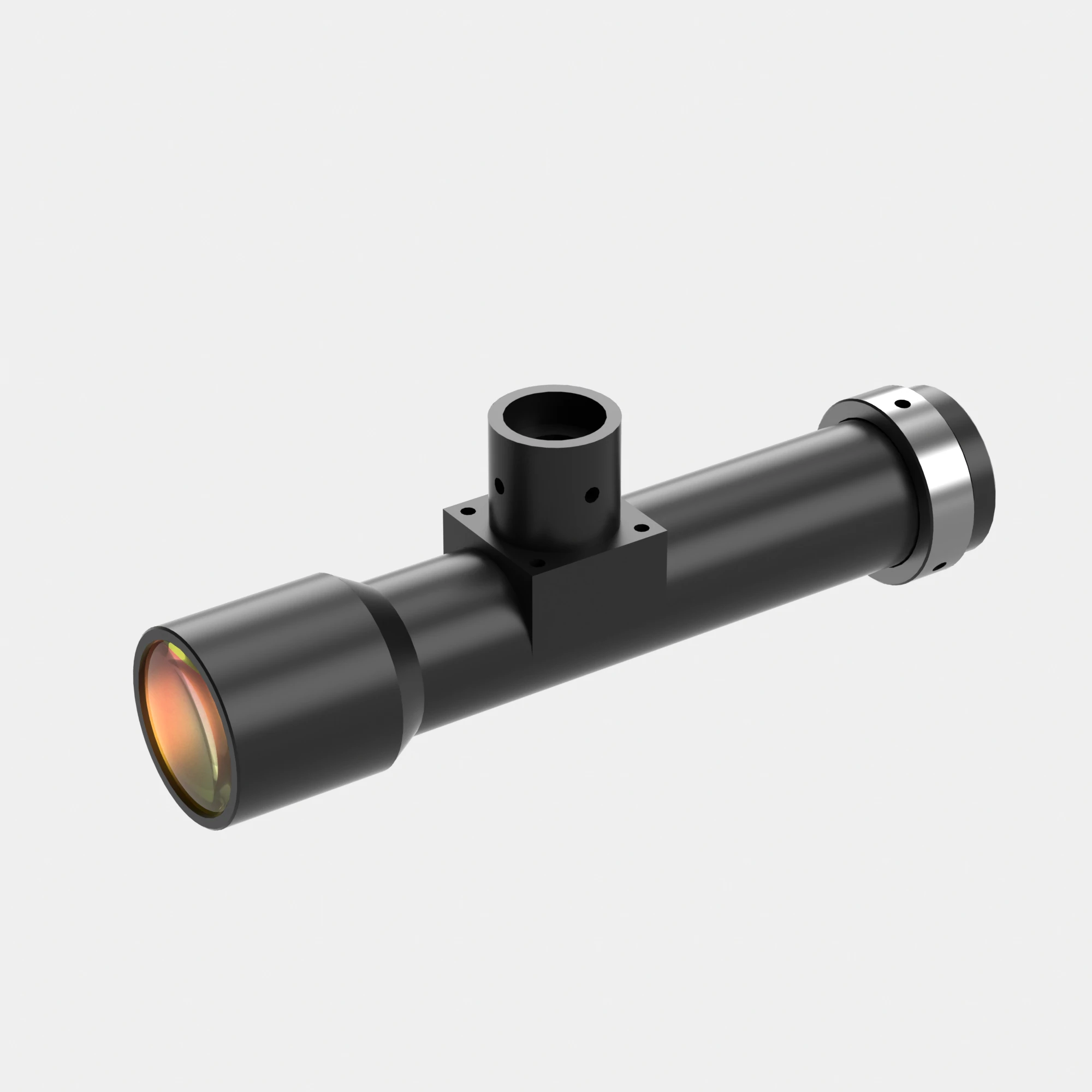

| Model NO. | WWH08-130CT | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.8 | Working Distance(mm) | 130 | ||||
| NA | 0.0316 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 12.6 | ||||
| MTF30 (lp/mm) | 65 | Object Resolution(μm) | 10.617 | ||||
| Depth of Field(mm) | 1.575 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 121.4 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2" (6.4x4.8) | 8.0x6.0 | ||||||
| 1/1.8" (7.13x5.37) | 8.9x6.7 | ||||||
| 2/3" (8.8x6.6) | 11.0x8.3 | ||||||
