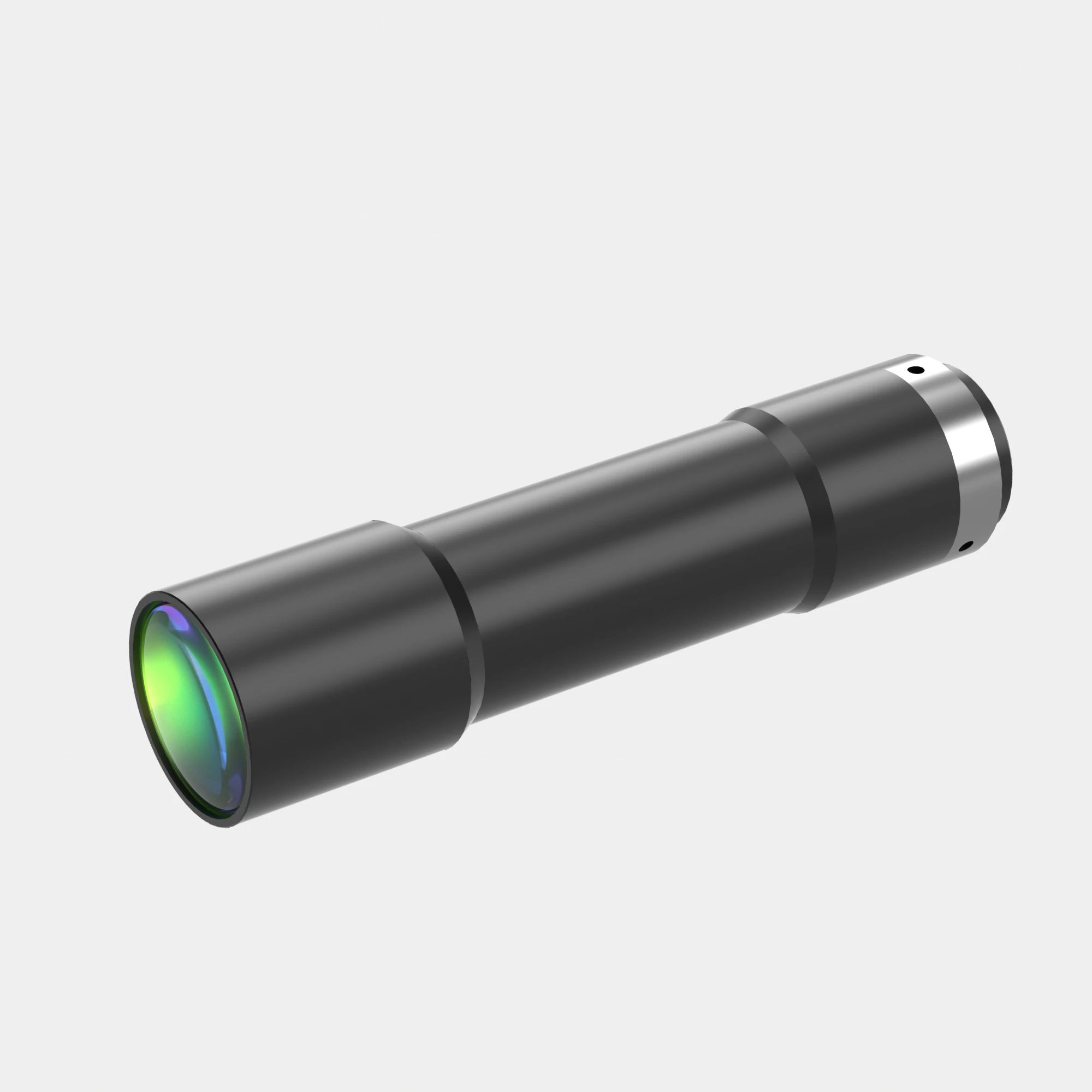

2/3" 0.8X Telecentric Lenses | WWH08-110ATV2 COOLENS®
$488.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWH08-110ATV2 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.800 | Working Distance(mm) | 110±2 | ||||
| NA | 0.0503 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 7.9 | ||||
| MTF30 (lp/mm) | 105 | Object Resolution(μm) | 6.7 | ||||
| Depth of Field(mm) | 1 | Distortion Typical(% max) | <0.05 | ||||
| Telecentricity Typical (°max) | <0.03 | Length (mm) | 122.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.4 | ||||
| Filter Screw Size | M30.0x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 8.0x6.0 | ||||||
| 1/1.8”（7.13x5.37） | 8.9x6.7 | ||||||
| 2/3" (8.8x6.6) | 11.0x8.3 | ||||||
