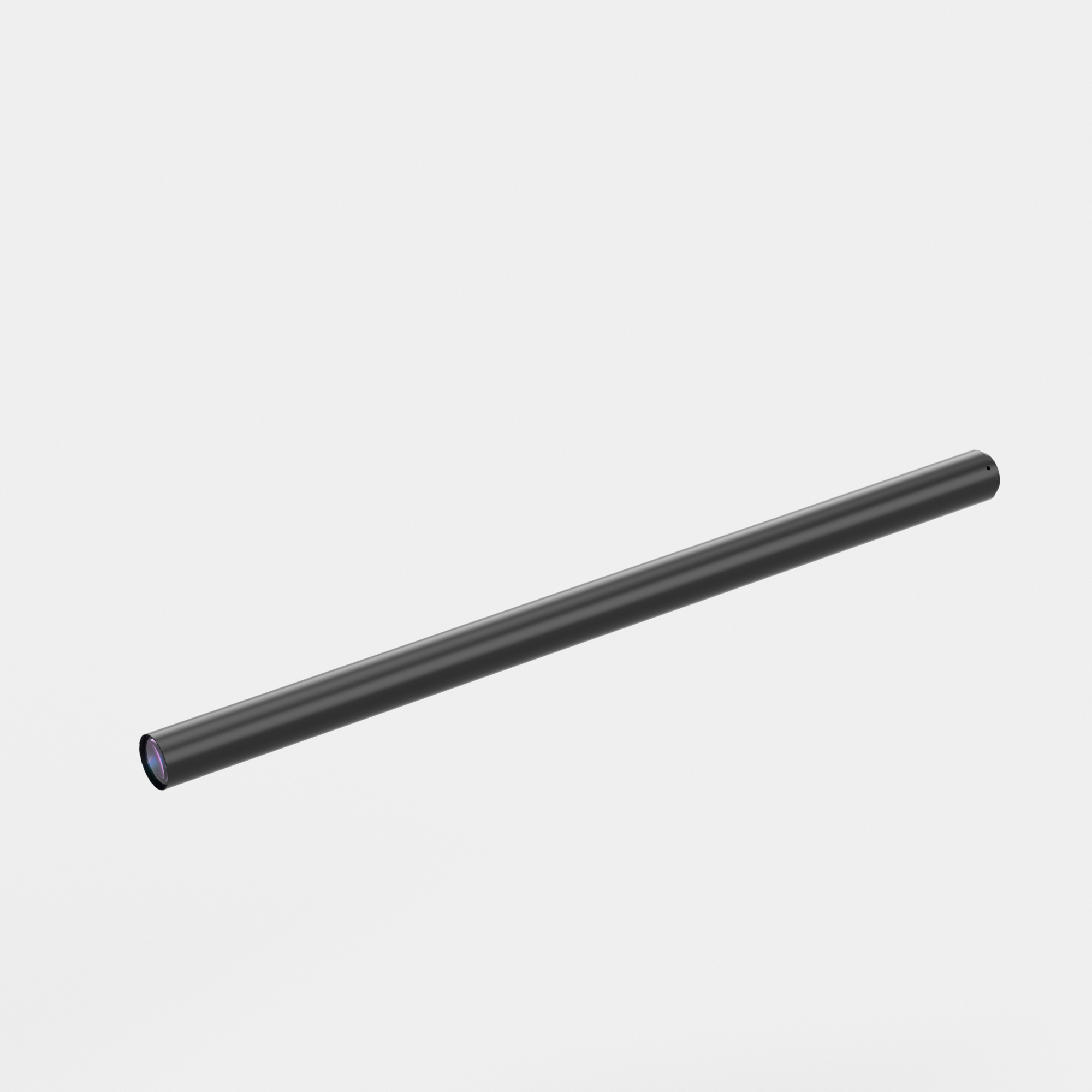

| Model NO. | WH067-600A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.67 | Working Distance(mm) | 600 | ||||
| NA | 0.0168 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 20 | ||||
| MTF30 (lp/mm) | 40 | Object Resolution(μm) | 20 | ||||
| Depth of Field(mm) | 3.6 | Distortion Typical(% max) | 0.05 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 535.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | M25x0.5 | ||||||
