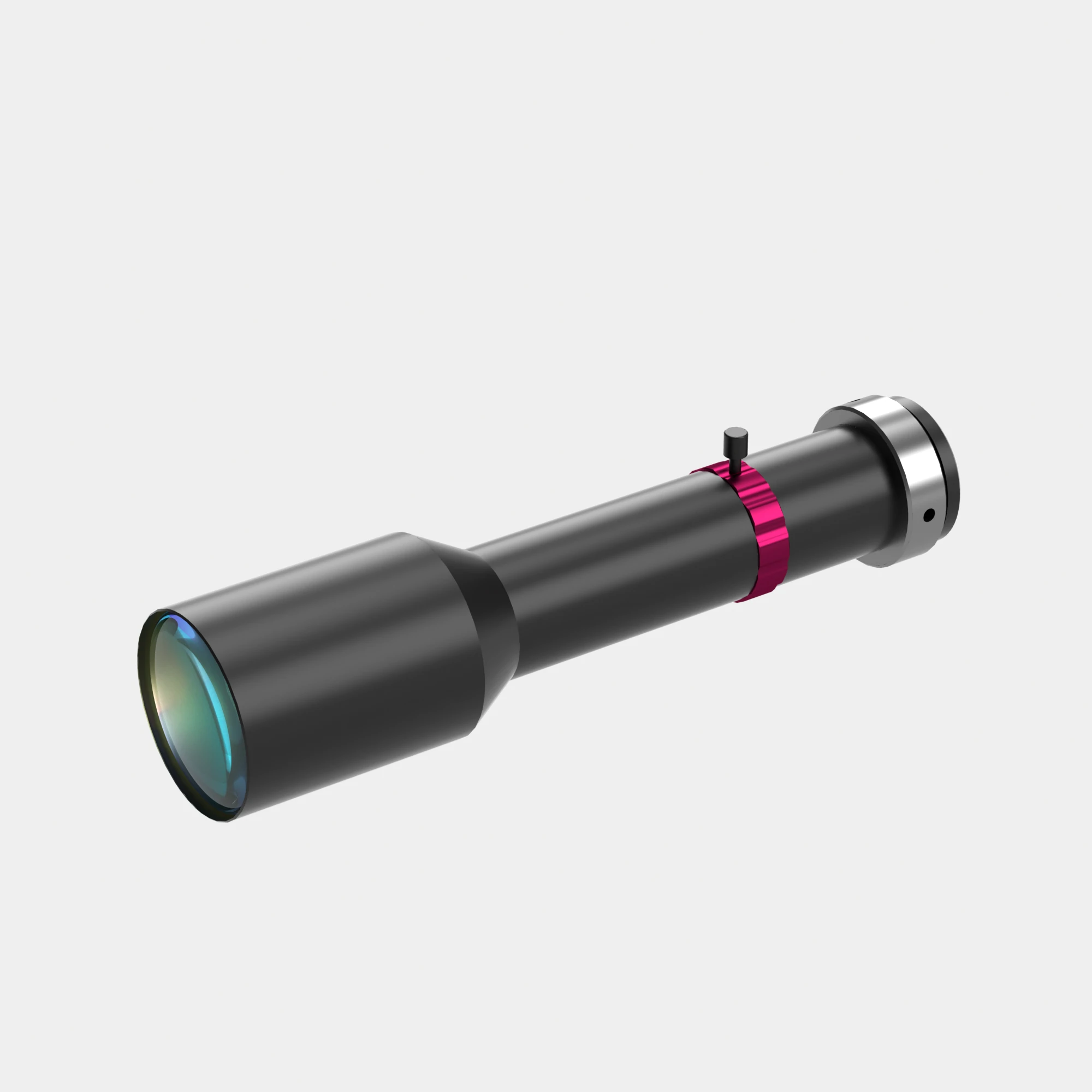

| Model NO. | WWH05-110AT-G | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.5 | Working Distance(mm) | 110 | ||||
| NA | 0.0260 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 9.6-Close | ||||
| MTF30 (lp/mm) | 80 | Object Resolution(μm) | 12.904 | ||||
| Depth of Field(mm) | Adjustable | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 135.2 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | Adjustable | ||||
| Filter Screw Size | M32x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2" (6.4x4.8) | 12.8x9.6 | ||||||
| 1/1.8”（7.13x5.37） | 14.3x10.7 | ||||||
| 1/3" (4.8x3.6) | 17.6x13.2 | ||||||
