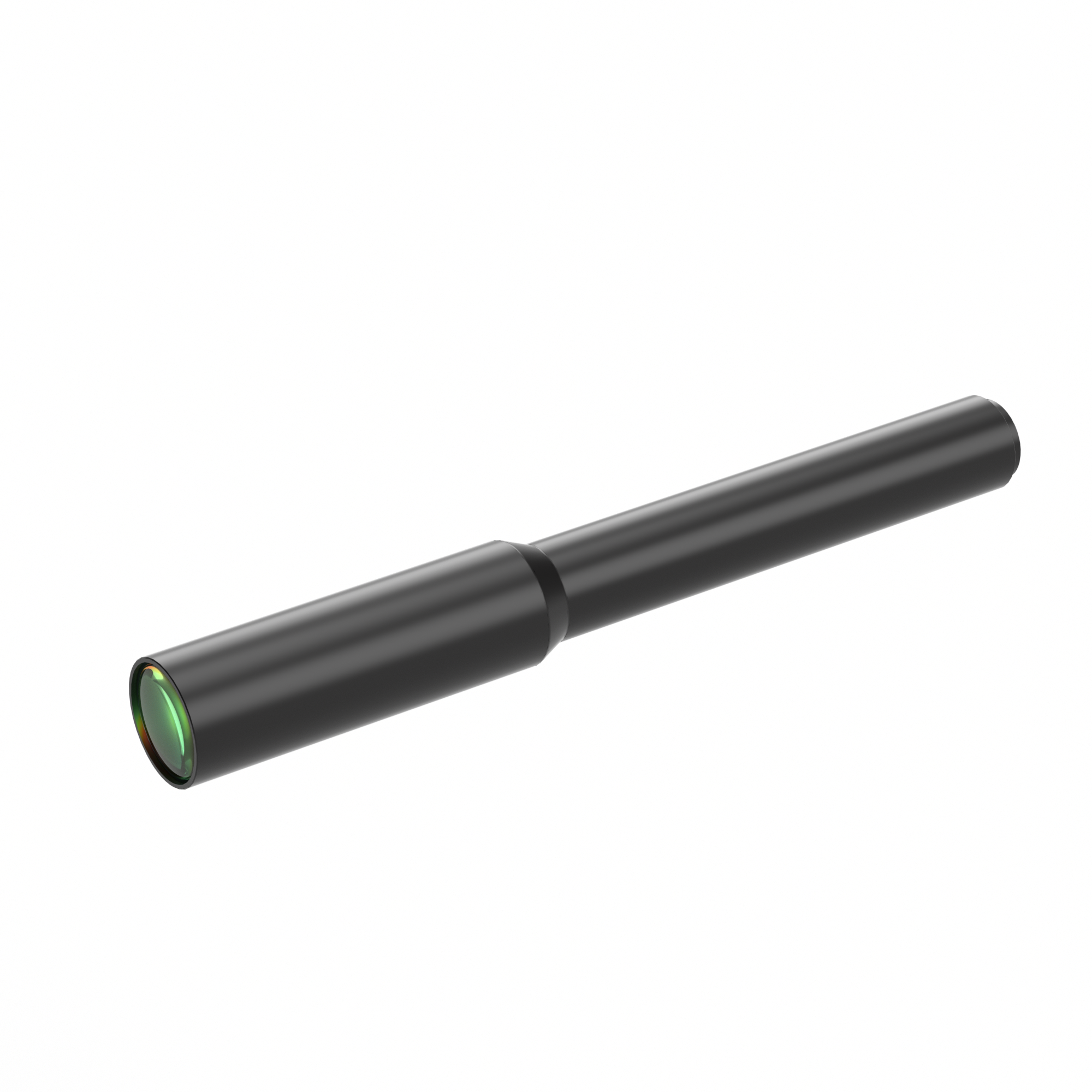

| Model NO. | WH05-430A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.5 | Working Distance(mm) | 430 | ||||
| NA | 0.0164 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 15.2 | ||||
| MTF30 (lp/mm) | 65 | Object Resolution(μm) | 20.4 | ||||
| Depth of Field(mm) | 4.9 | Distortion Typical(% max) | 0.01 | ||||
| Telecentricity Typical (°max) | 0.9 | Length (mm) | 287.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3 | ||||
| Filter Screw Size | M35x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 12.8x9.6 | ||||||
| 1/1.8"(7.13x5.37) | 14.3x10.7 | ||||||
| 2/3"(8.45x7.1) | 16.9x14.2 | ||||||
