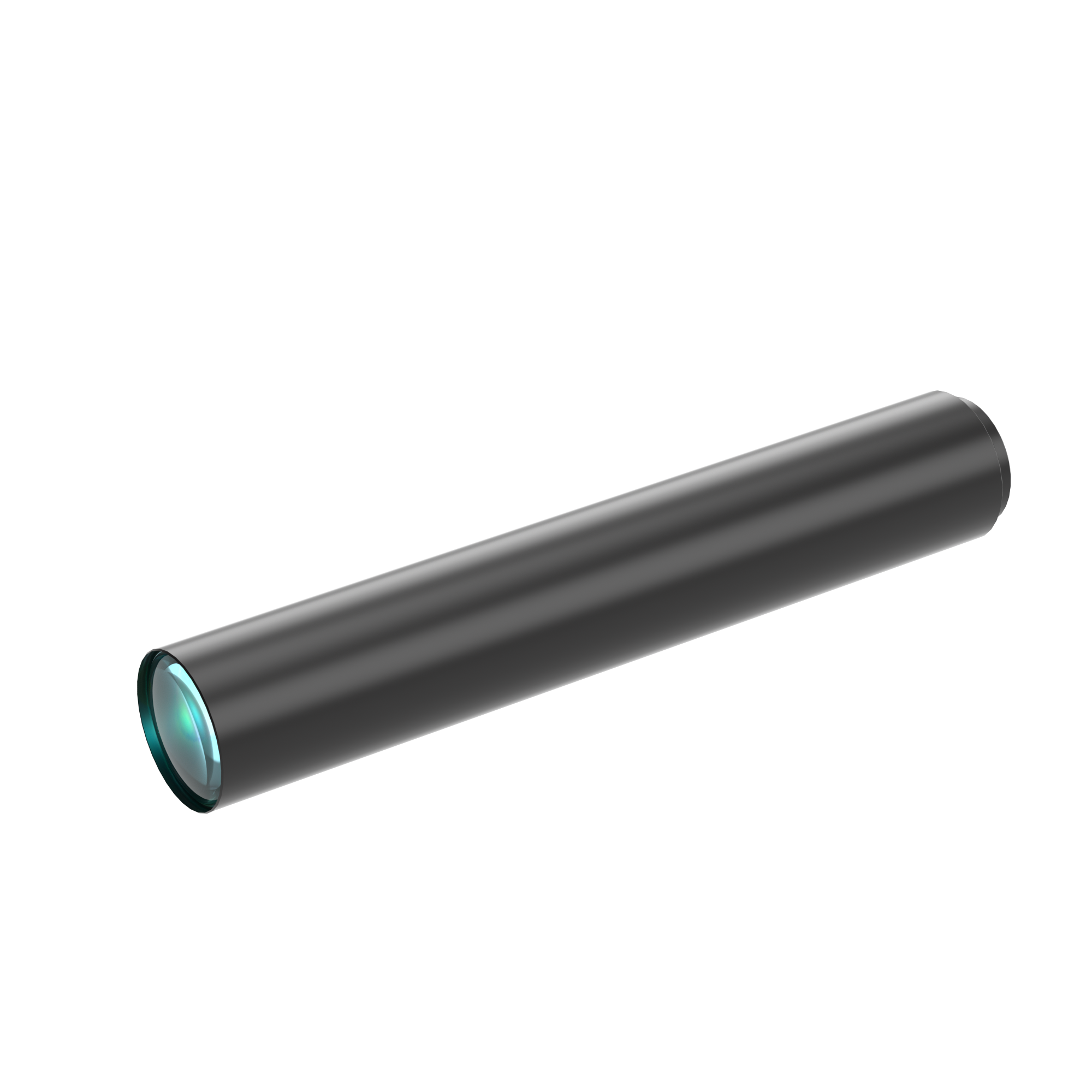

| Model NO. | WH04-350A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.4 | Working Distance(mm) | 350 | ||||
| NA | 0.0182 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 11 | ||||
| MTF30 (lp/mm) | 85 | Object Resolution(μm) | 18.4 | ||||
| Depth of Field(mm) | 5.5 | Distortion Typical(% max) | 0.05 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 169.8 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.8 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4×4.8) | 16.0×12.0 | ||||||
| 1/1.8"(7.13×5.37) | 17.8×13.4 | ||||||
| 2/3"(8.8×6.6) | 22.0×16.5 | ||||||
