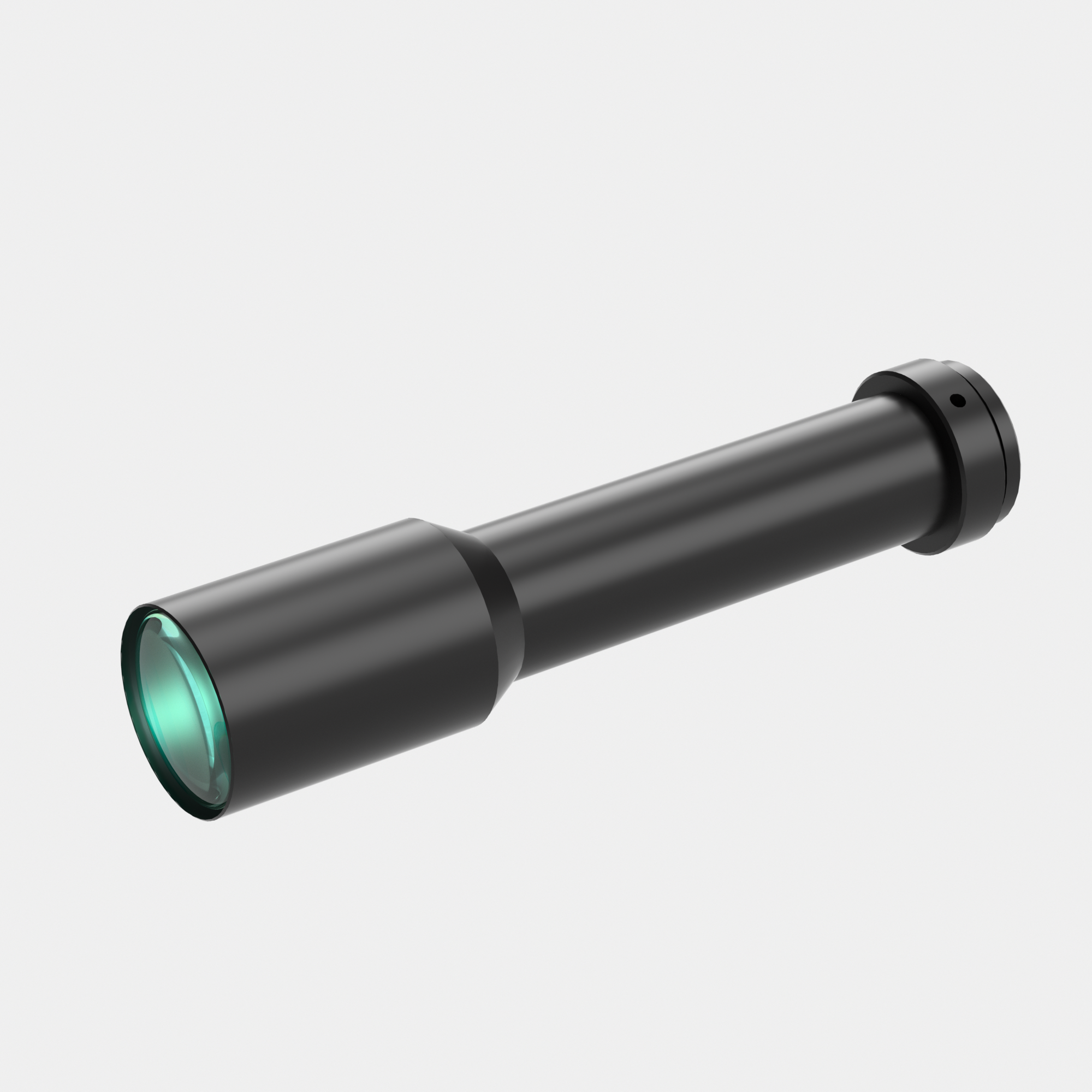

| Model NO. | WH04-230A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.4 | Working Distance(mm) | 230 | ||||
| NA | 0.0146 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 13.8 | ||||
| MTF30 (lp/mm) | 60 | Object Resolution(μm) | 23.1 | ||||
| Depth of Field(mm) | 6.9 | Distortion Typical(% max) | 0.15 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 129.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4 | ||||
| Filter Screw Size | M27x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 16.0x12.0 | ||||||
| 1/1.8"(7.13x5.37) | 17.8x13.4 | ||||||
| 2/3"(8.8x6.6) | 22.0x16.5 | ||||||
