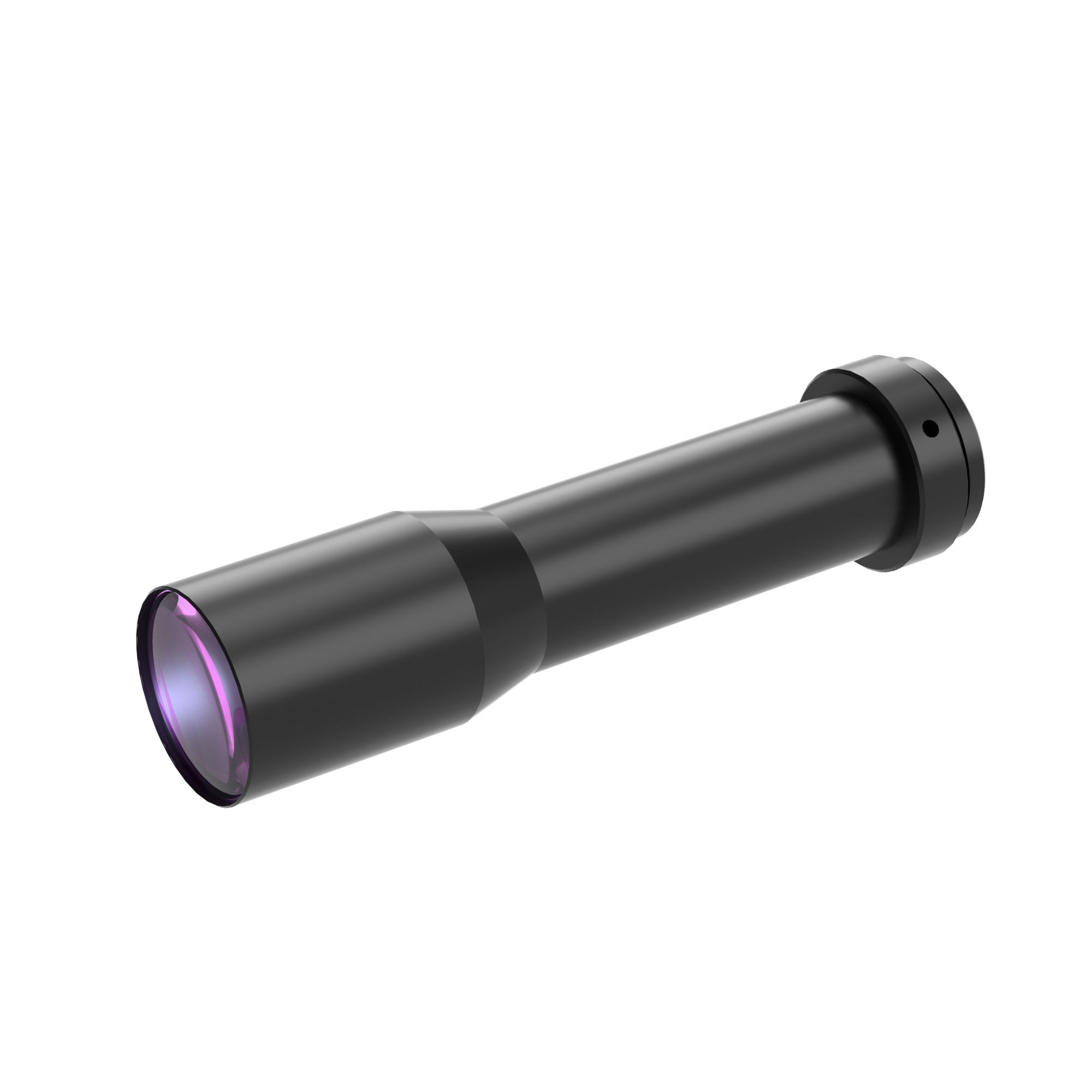

| Model NO. | WH022-275A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.22 | Working Distance(mm) | 275 | ||||
| NA | 0.008 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 11.3 | ||||
| MTF30 (lp/mm) | 70 | Object Resolution(μm) | 41.9 | ||||
| Depth of Field(mm) | 18.7 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 108.8 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 7 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4x4.8) | 29.1x21.8 | ||||||
| 1/1.8"(7.13x5.37) | 32.4x24.4 | ||||||
| 2/3"(8.8x6.6) | 40.0x30.0 | ||||||
