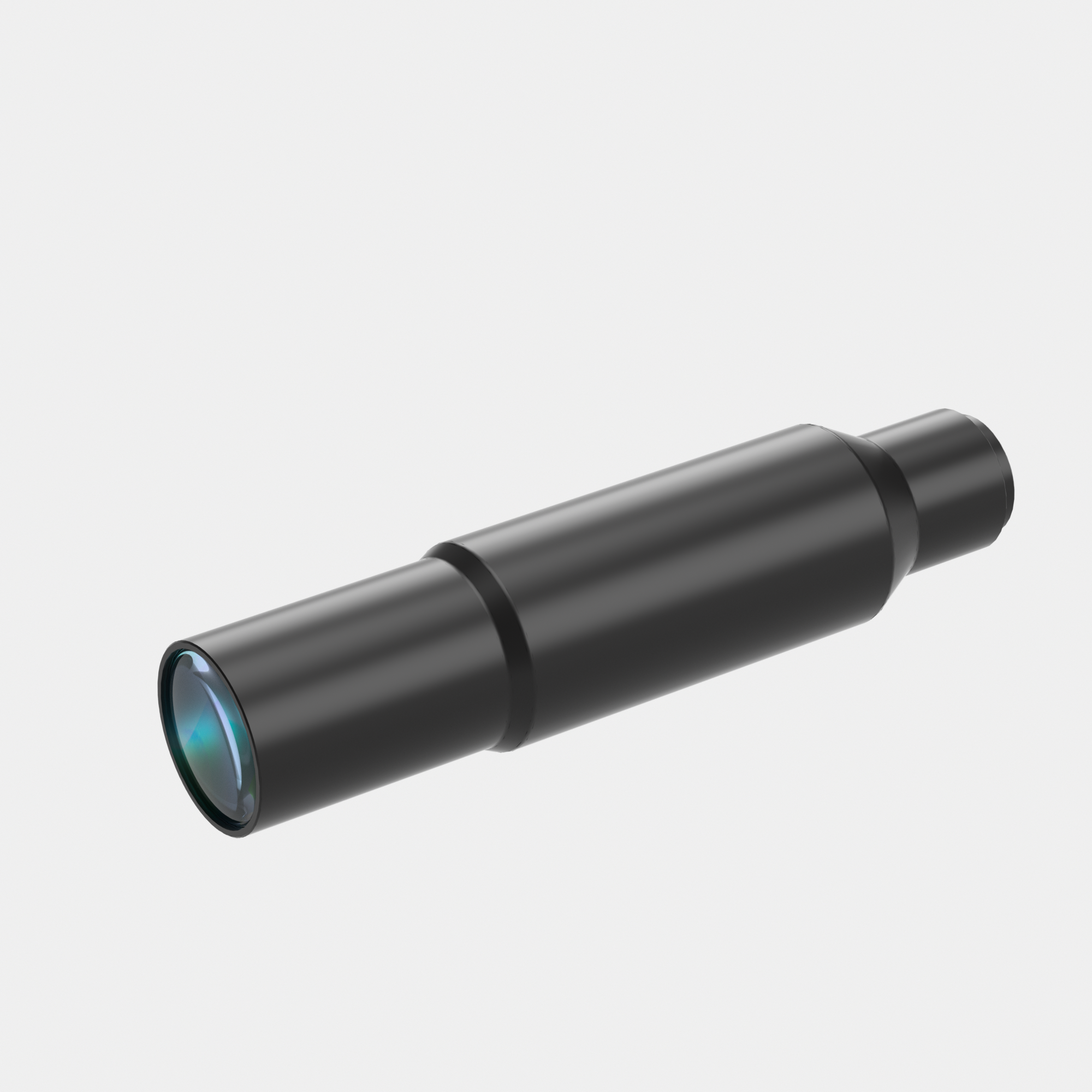

| Model NO. | WH01-1405A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.1 | Working Distance(mm) | 1405 | ||||
| NA | 0.0052 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 9.6 | ||||
| MTF30 (lp/mm) | 100 | Object Resolution(μm) | 64 | ||||
| Depth of Field(mm) | 76.8 | Distortion Typical(% max) | 0.05 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 176.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 27 | ||||
| Filter Screw Size | M35x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4×4.8) | 64.0×48.0 | ||||||
| 1/1.8"(7.13×5.37) | 71.3×53.7 | ||||||
| 2/3"(8.8×6.6) | 88.0×66.0 | ||||||
