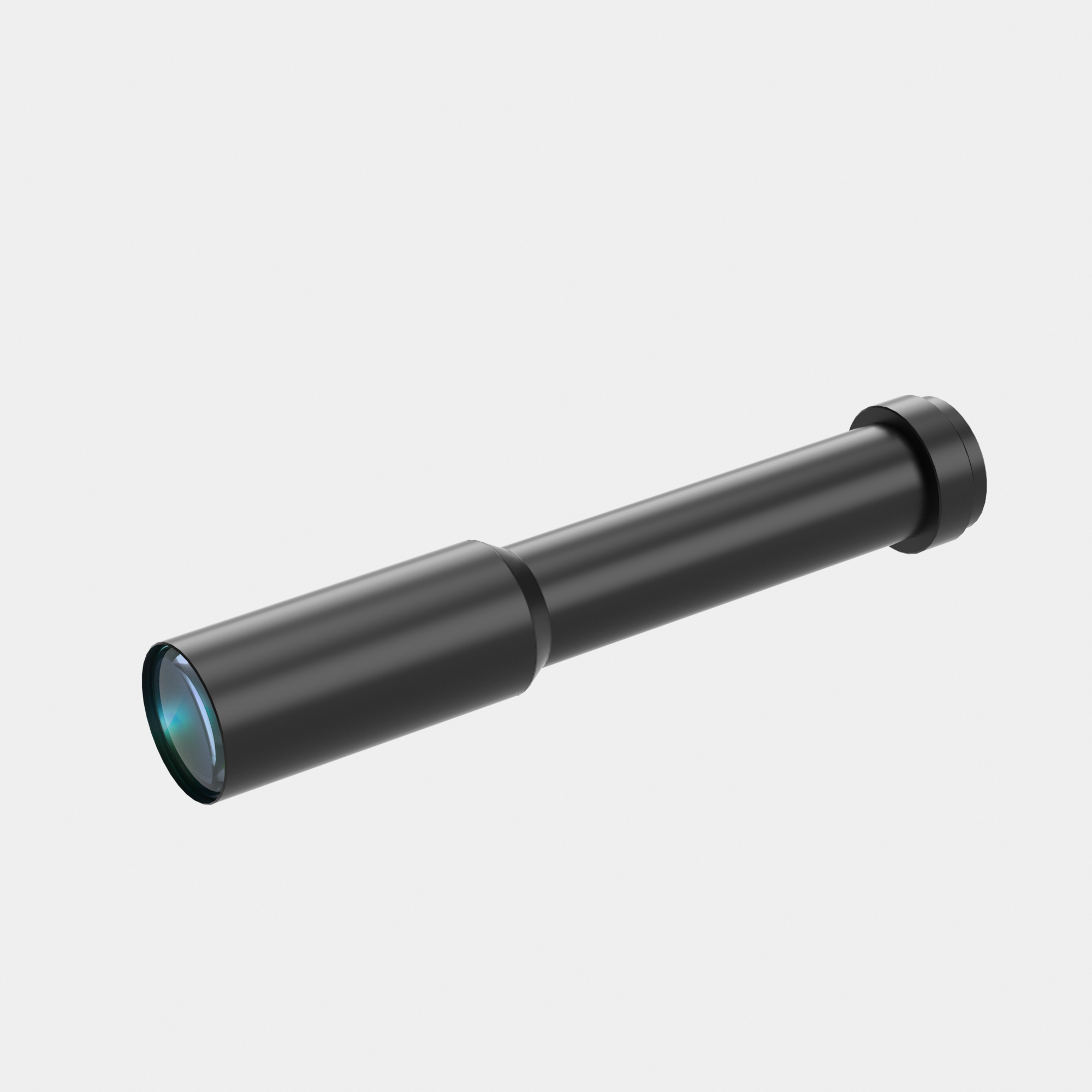

| Model NO. | WH0195-550AS-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.195 | Working Distance(mm) | 550 | ||||
| NA | 0.0106 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 9.2 | ||||
| MTF30 (lp/mm) | 100 | Object Resolution(μm) | 31.7 | ||||
| Depth of Field(mm) | 19.4 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 155 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4×4.8) | 32.8×24.6 | ||||||
| 1/1.8"(7.13×5.37) | 36.6×27.5 | ||||||
| 2/3"(8.45×7.1) | 43.3×36.4 | ||||||
