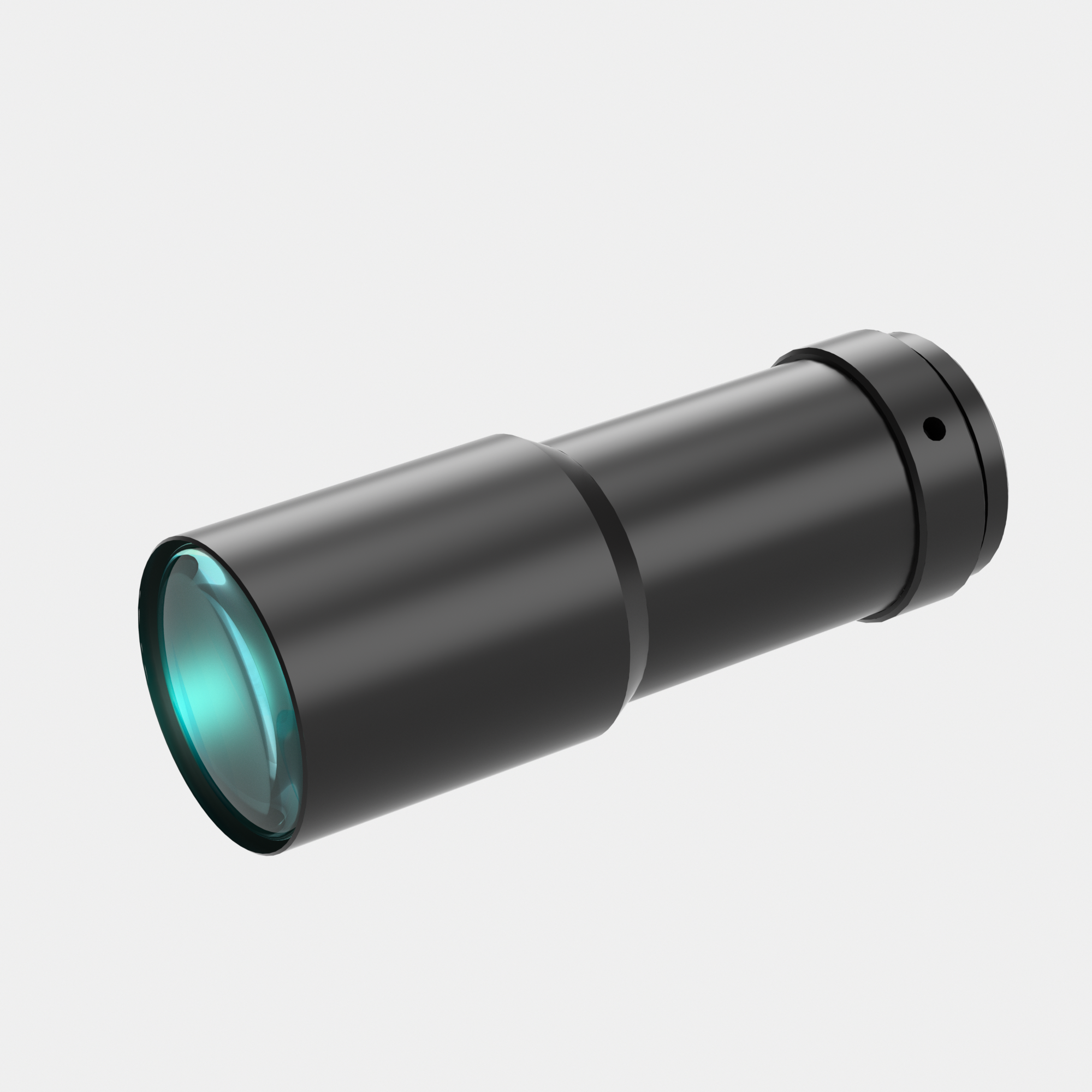

| Model NO. | WH018-150A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.18 | Working Distance(mm) | 150 | ||||
| NA | 0.0071 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 12.6 | ||||
| MTF30 (lp/mm) | 50 | Object Resolution(μm) | 47.1 | ||||
| Depth of Field(mm) | 31.1 | Distortion Typical(% max) | 0.6 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 77.2 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 10 | ||||
| Filter Screw Size | M27x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4x4.8) | 35.6x26.7 | ||||||
| 1/1.8"(7.13x5.37) | 39.6x29.8 | ||||||
| 2/3"(8.8x6.6) | 48.9x36.7 | ||||||
