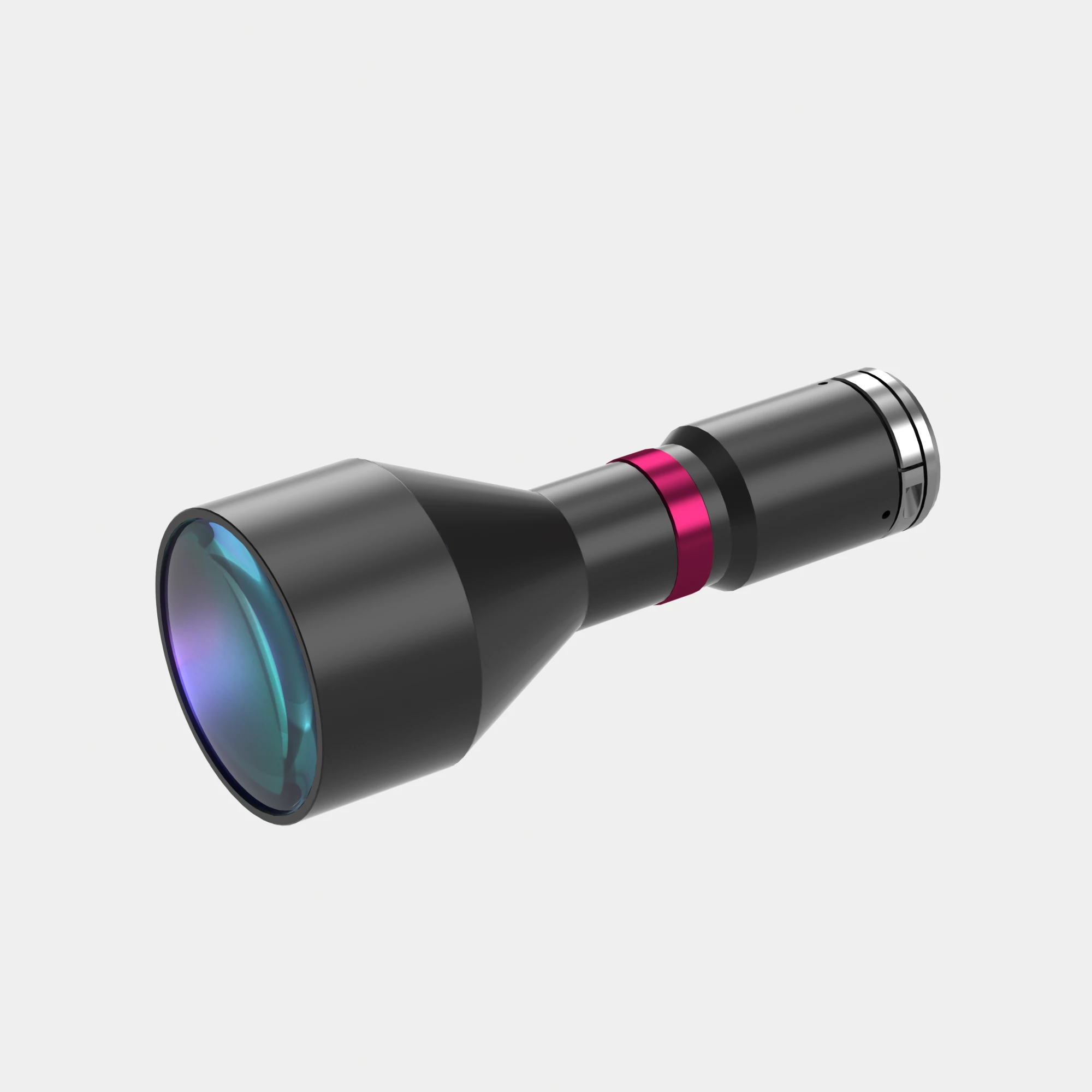

| Model NO. | WWK015-320-120-AL | Image Circle Diameter (Φmm) | 7.93(1/2.3") | ||||
| Magnification(x) | 0.15 | Working Distance(mm) | 320±2 | ||||
| NA | 0.0107 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 7 | ||||
| MTF30 (lp/mm) | >130 | Object Resolution(μm) | 31.3 | ||||
| Depth of Field(mm) | ±12.4@F7 | Distortion Typical(% max) | <0.05 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 179.5 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4.2 | ||||
| Filter Screw Size | M68x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2.5" 9P001/31 (5.7x4.28) | 38.0x28.5 | ||||||
| 1/2" 9J003 (6.44x4.62) | 42.9x30.8 | ||||||
