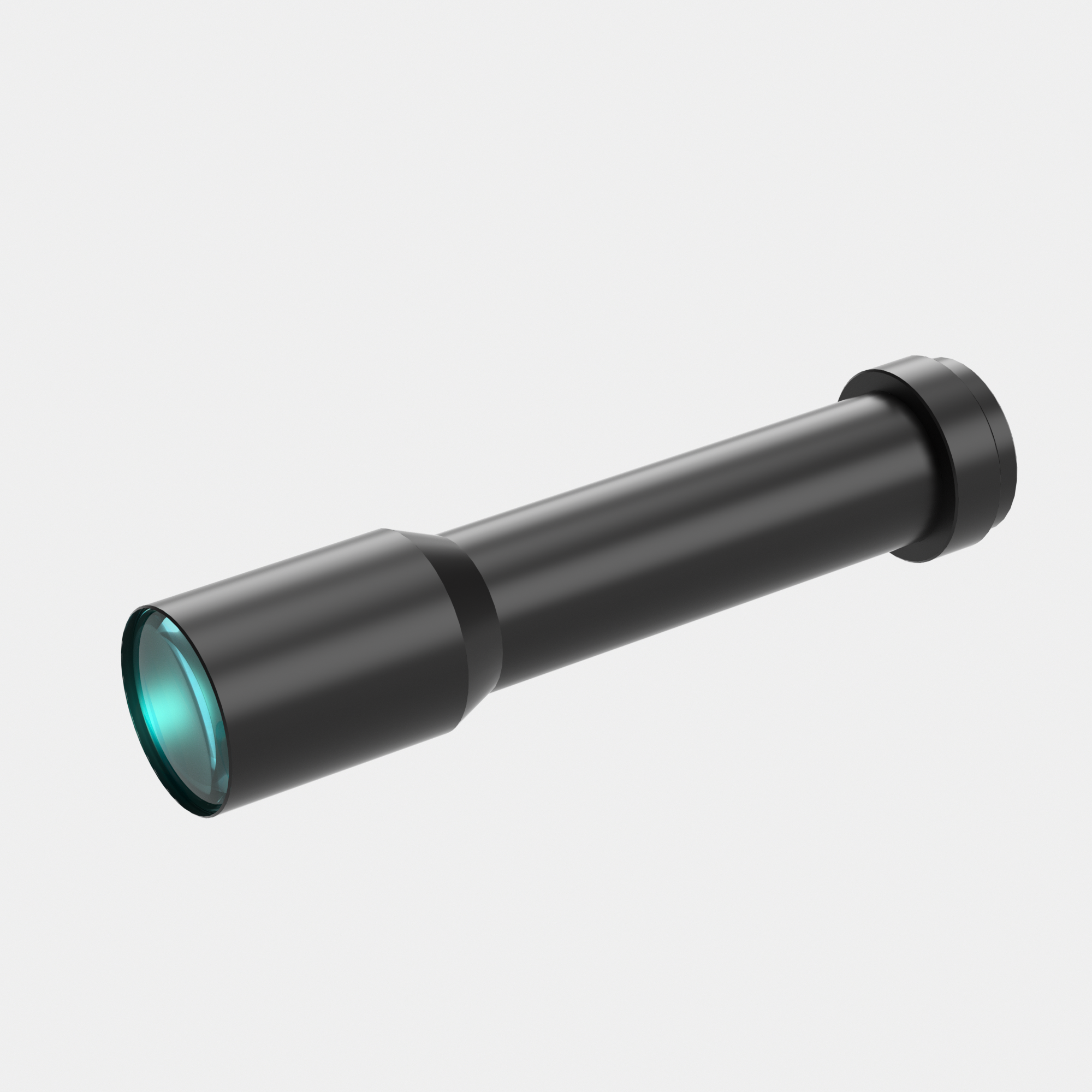

| Model NO. | WH015-680A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.15 | Working Distance(mm) | 680 | ||||
| NA | 0.0072 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10.5 | ||||
| MTF30 (lp/mm) | 70 | Object Resolution(μm) | 46.9 | ||||
| Depth of Field(mm) | 37.3 | Distortion Typical(% max) | 0.05 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 122.5 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 12 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4x4.8) | 42.7x32.0 | ||||||
| 1/1.8"(7.13x5.37) | 47.5x35.8 | ||||||
| 2/3"(8.8x6.6) | 58.7x44.0 | ||||||
